Description
12 V Power Supply Splitter into 2 Groups with 6 Fuse-Protected Outputs, Individual Zone Disconnection Indicated by LED, General Fault Indication via Relay with Volt-Free Contacts, Useful Protection for Peripherals
Mod. SS-FAEMD2GSFD
SKU: SS-FAEMD2GSFD

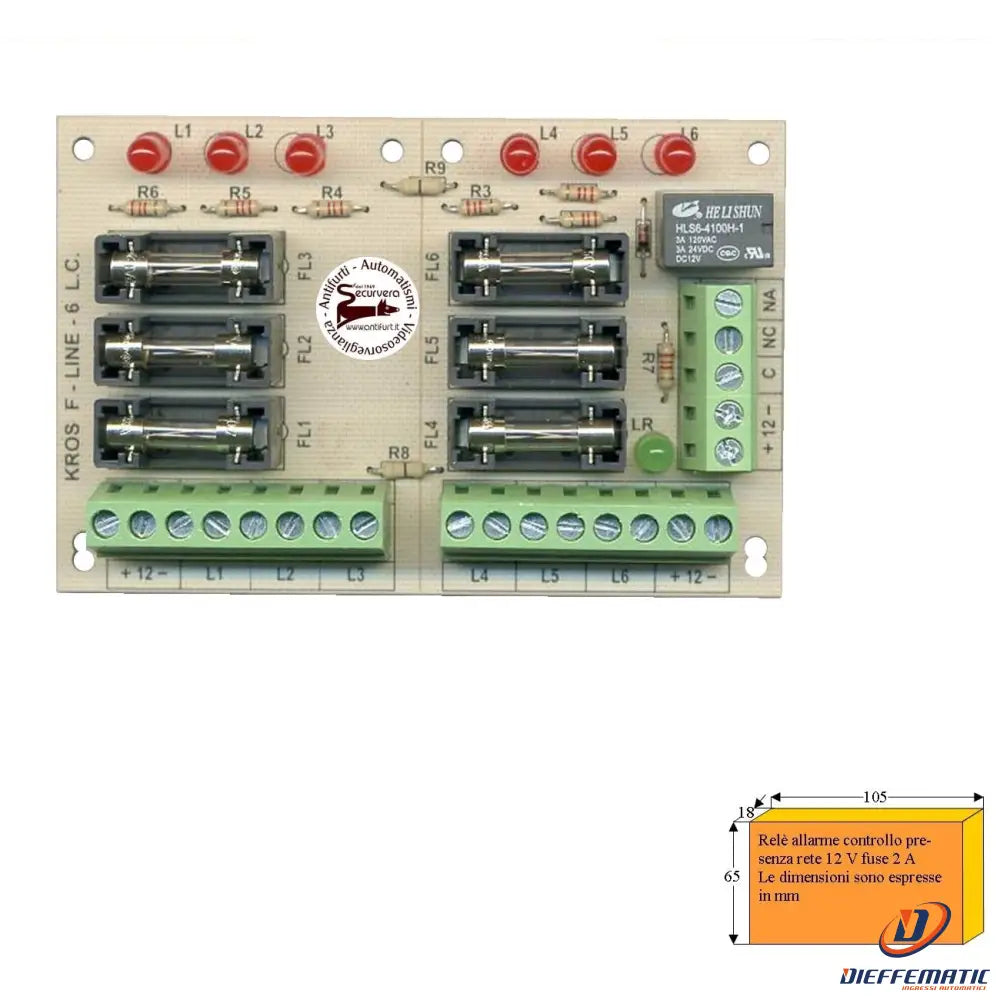

SS-FAE Intelligent device for distributing fused power supplies to other external equipment. 2 12 V power supply inputs. Six outputs protected by individual 2 A fuses. Power on lines L1-L6 is indicated by an illuminated LED. LED off: blown fuse. If you need to control 2 separate power supplies, cut resistors R8 and R9; you will obtain 3 separate fused outputs rated at 2 A or more for each input (group 1 = L1-L2-L3) (group 2 = L4-L5-L6). On-board protected relay suitable for O.C. outputs. Voltage-free changeover contact rated at 3 A at 24 V. Relay activation indicated by an LED. Mounting board. Dimensions L104XH65XS18 mm. Weight 60 g. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults. Complies with all standards of the European Directives: UNI EN 12453-EN 12445 CEE 89/336 + 93/68 D.L. 04/12/1992 N. 476. Directive 2004/30/CE:2014/30/UE - EN 50130-4:2012 + A1: 2014 - EN 61000-6-3+A1:2011/AC:2012 - EN 50581:2012. Electromagnetic Compatibility 2014/30/UE
COMPONENTS FOR SALE:
01 SS-FAE 2-Group Fused Power Supply Distributor, 12 V, with Fault Indication and Individual Fuse Disconnection
01 SV-GAR Warranty Certificate, as Required by Law: 24 Months; Qualified Installation under Ministerial Decree 37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Connections, Logic Functions, and Fuse Ratings Must Be Observed
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
