Description
12 V Fused Power Supply Protection Distributed Across 2 Groups, 6 Outputs for External Peripherals, LED Indicator for Individual Zone Disconnection, General Fault Indicated by Voltage-Free Changeover Relay
Mod. SS-FAEMD2GSFC
SKU: SS-FAEMD2GSFC

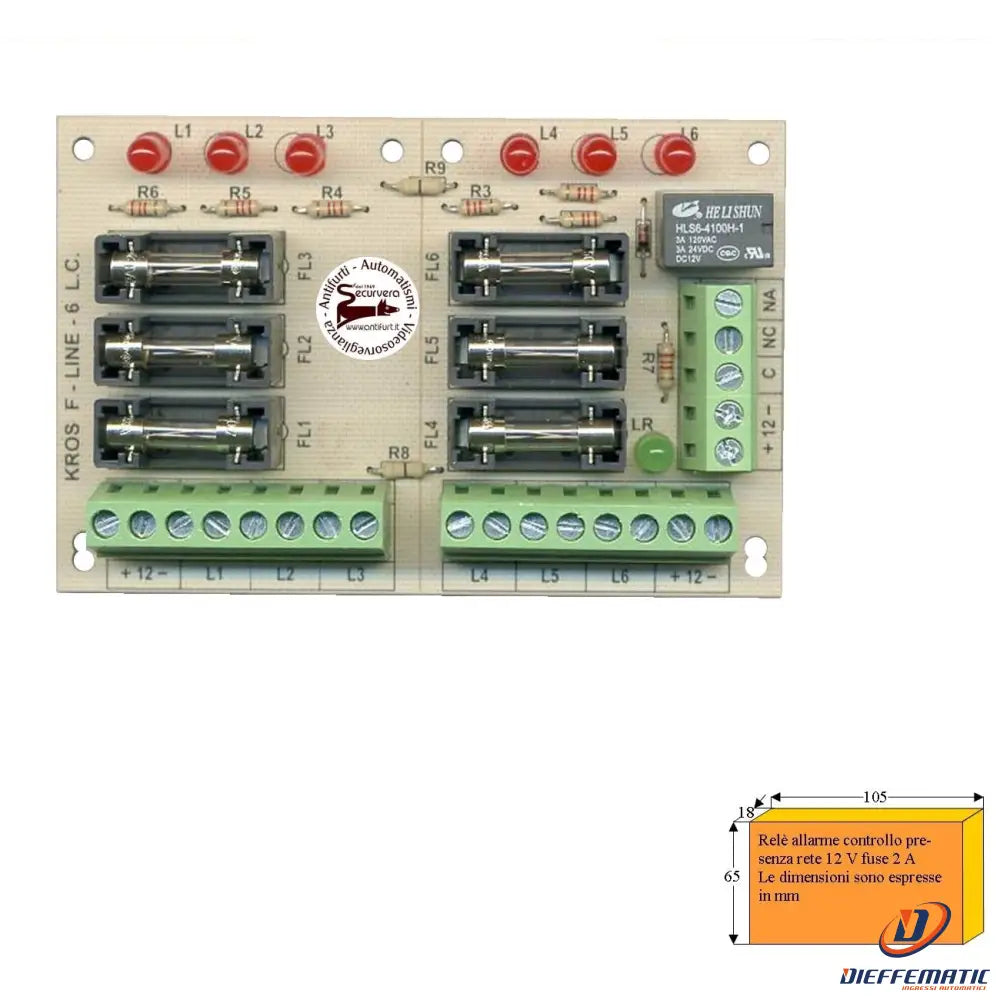

SS-FAE Intelligent device for distributing fused power supplies to other external devices. 2 inputs for 12 V power supplies. Six outputs protected by individual 2 A fuses. Power on lines L1-L6 is indicated by an illuminated LED. LED off: blown fuse. If you need to monitor 2 separate power supplies, cut resistors R8 and R9; this provides 3 separate fused outputs (group 1 = L1-L2-L3) (group 2 = L4-L5-L6), rated at 2 A or more for each input. Onboard relay protected, suitable for O.C. outputs. Voltage-free changeover contact rated at 3 A at 24 V. Relay activation indicated by an LED. Mounting board. Dimensions L104XH65XS18 mm. Weight 60 g. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults. Complies with all European Directive standards: UNI EN 12453-EN 12445 CEE 89/336 + 93/68 D.L. 04/12/1992 N. 476. Directive 2004/30/EC:2014/30/EU - EN 50130-4:2012 + A1: 2014 - EN 61000-6-3+A1:2011/AC:2012 - EN 50581:2012. Electromagnetic Compatibility 2014/30/EU
COMPONENTS FOR SALE:
01 SS-FAE Distributor for 2 Fused 12 V Power Supply Groups, with Fault Indication and Individual Fuse Disconnection
01 SV-GAR Warranty Certificate, As Required by Law: 24 Months; Lifetime Coverage Against Manufacturing Defects When Installed by a Qualified Installer in Compliance with Ministerial Decree 37/2008
01 SV-IST Detailed Assembly Instructions; The Connections, Logic Functions and Fuse Ratings Must Be Observed
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
