Description
Outdoor Magnetic Contacts, 2 Pieces, With Mounting Tabs, Vacuum-Sealed Reed Switch, Magnetic Sensitivity 13 mm, Max Voltage 30 V, 0.5 A Resistive Load, 4-Wire Output, 2 NC and 2 Tamper, ABS Cover, IP65 Protection
Mod. ST-405DCMABTE
SKU: ST-405DCMABTE

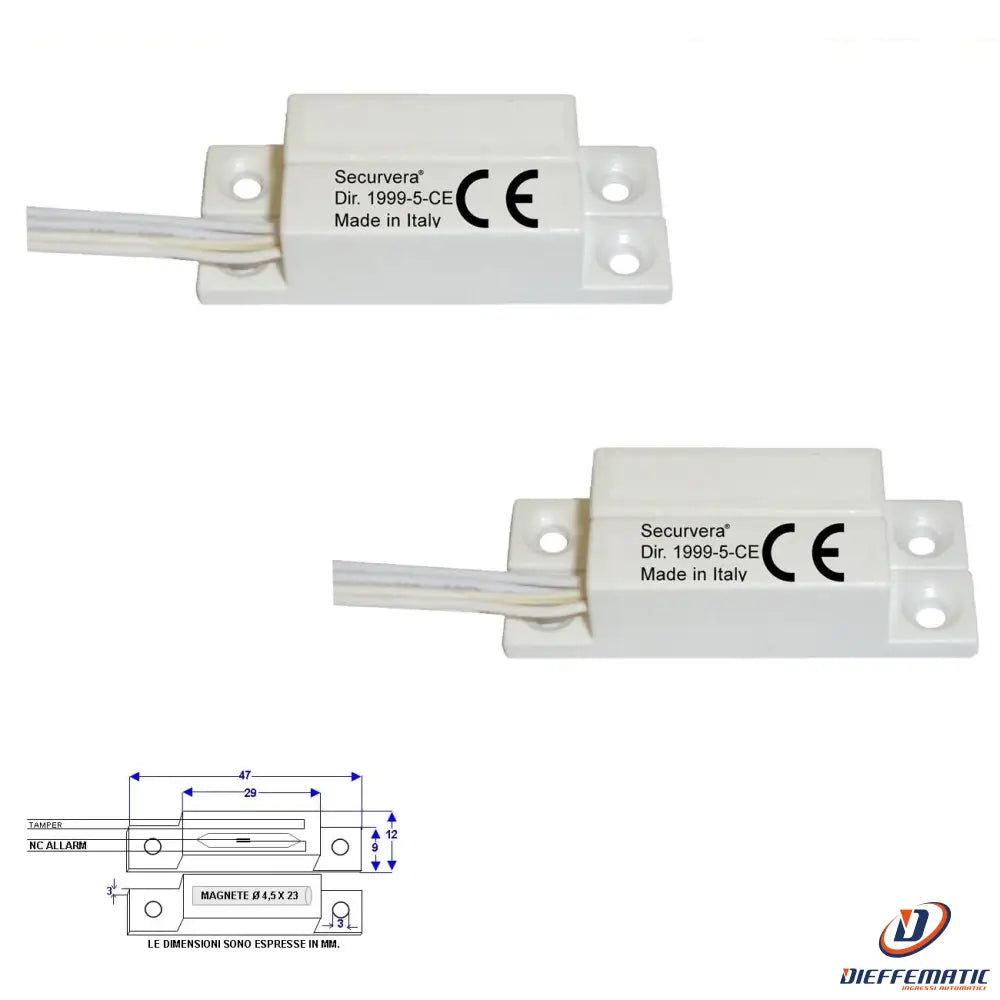

ST-405 NC magnetic contact with vacuum-sealed glass reed switch. With perforated mounting tabs. Maximum current 500 mA at 30 V. Maximum power 10 W. Magnetic range 13 mm. Consists of 2 pieces of the same shape. The part with the wires contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close causes the contacts to close into the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous fixtures in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, i.e. the part with the wires, must be installed on the fixed part of the fixture (frame), while the magnet is positioned opposite it on the moving part (door). The protected fixtures must be fully closed. Complies with CEI 79/2. Made of ABS plastic. IP 65 protection. Wire connection. Complies with CEI 79-2 Level 1. Rectangular plastic housing with perforated tabs. Suitable for monitoring the opening of non-ferrous fixtures. Installed dimensions L46XH23XS8 mm. Weight 12 g. Product assembled at the facility selected at the Securvera plant in Rome. Guaranteed by law against manufacturing defects. Product assembled and selected at the Securvera plant in Rome. Guaranteed by law for 24 months against manufacturing defects. Complies with European directives: EN50131-2-6. EEC 89/336 + 92/31 +93/68 D.L. 04/12/1992 No. 476. ERP 2009/125/EC; "RoHS" 2015/863/EU; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/EU; Low Voltage 2014/35/EU and subsequent amendments, continuously updated
COMPONENTS FOR SALE:
02 ST-405 RED Vacuum-Sealed ABS Brick-Shaped Magnetic Contact Max Current 30 V 0.5 A IP 65 Protection 4 Wires 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as required by law: 24 months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Followed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
