Description
External Magnetic Sensors, 2 Pieces, Vacuum-Sealed NC Reed Contact, Magnetic Sensitivity 13 mm, Max. Voltage 30 V 0.5 A, Resistive Load, 4 Wires, 2 NC and 2 Tamper Contacts, with ABS Mounting Flanges, IP65
Model ST-405DCMABTD
SKU: ST-405DCMABTD

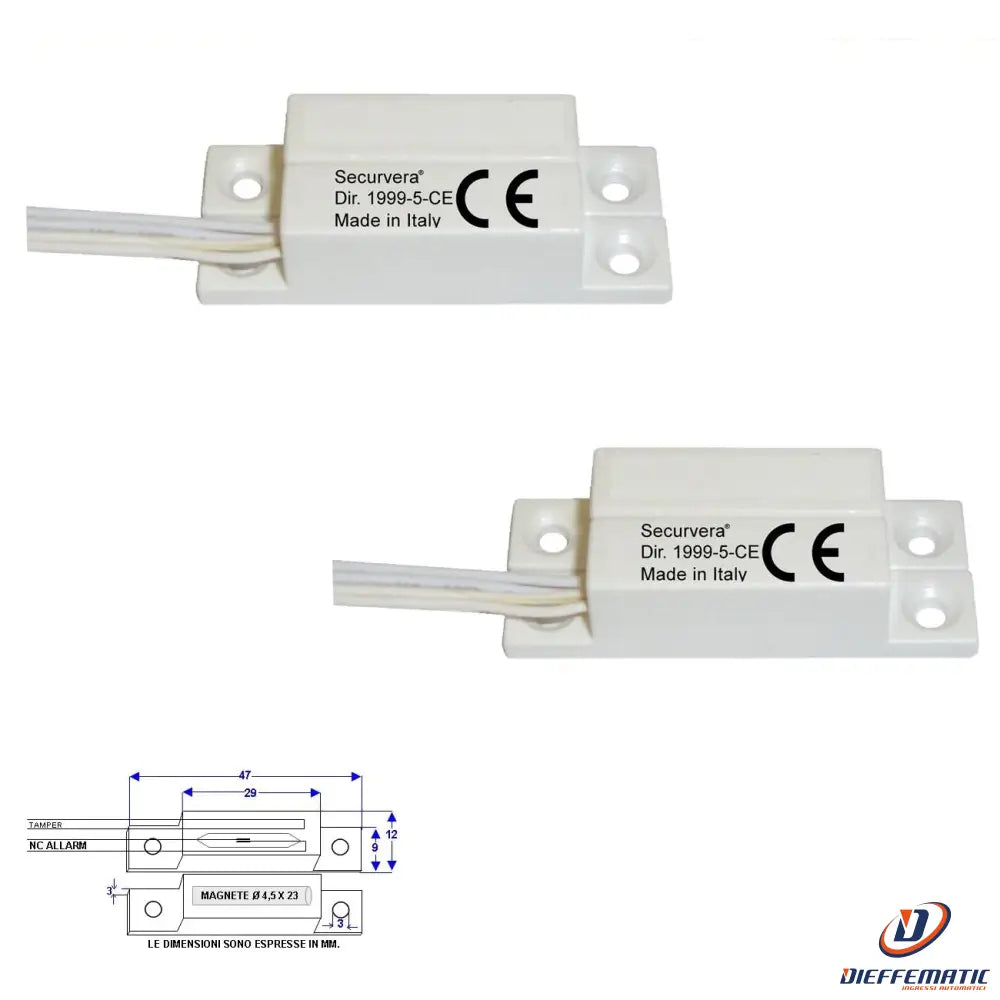

ST-405 NC magnetic contact with vacuum-sealed glass reed switch, with perforated mounting flanges. Maximum switching current 500 mA at 30 V. Maximum power 10 W. Magnetic range 13 mm. Consists of 2 pieces of the same shape. The wired part contains a vacuum-sealed glass reed switch, normally open (NO). Bringing the magnet close causes the contacts to close to the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous window and door frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part, i.e. the part with the wires, on the fixed part of the frame, and the magnet opposite it on the moving part (door). The protected frames must be fully closed. Complies with CEI 79/2. Made of ABS plastic. IP 65 protection. Wired connection. Complies with CEI 79-2 Level 1. Rectangular plastic housing with perforated flanges. Suitable for monitoring the opening of (non-ferrous) frames. Installed dimensions L46XH23XS8 mm. Weight 12 g. Product assembled at the facility selected by Securvera in Rome. Guaranteed by law against manufacturing defects and faults. Product assembled and inspected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
COMPONENTS FOR SALE:
02 ST-405 Vacuum-Sealed Reed Magnetic Contact in Brick-Shaped ABS Housing, RED, Max. Current 30 V 0.5 A, IP 65 Protection, 4 Wires, 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
