Description
Outdoor Magnetic Sensors, 2 Pieces, Mounting Tabs, NC Reed Contact, Vacuum-Sealed, Magnetic Sensitivity 13 mm, Max. Voltage 30 V, 0.5 A Resistive Load, 4 Wires, 2 NC and 2 Tamper, ABS Cover, IP65 Protection
Mod. ST-405DCMABTAPC
SKU: ST-405DCMABTAPC

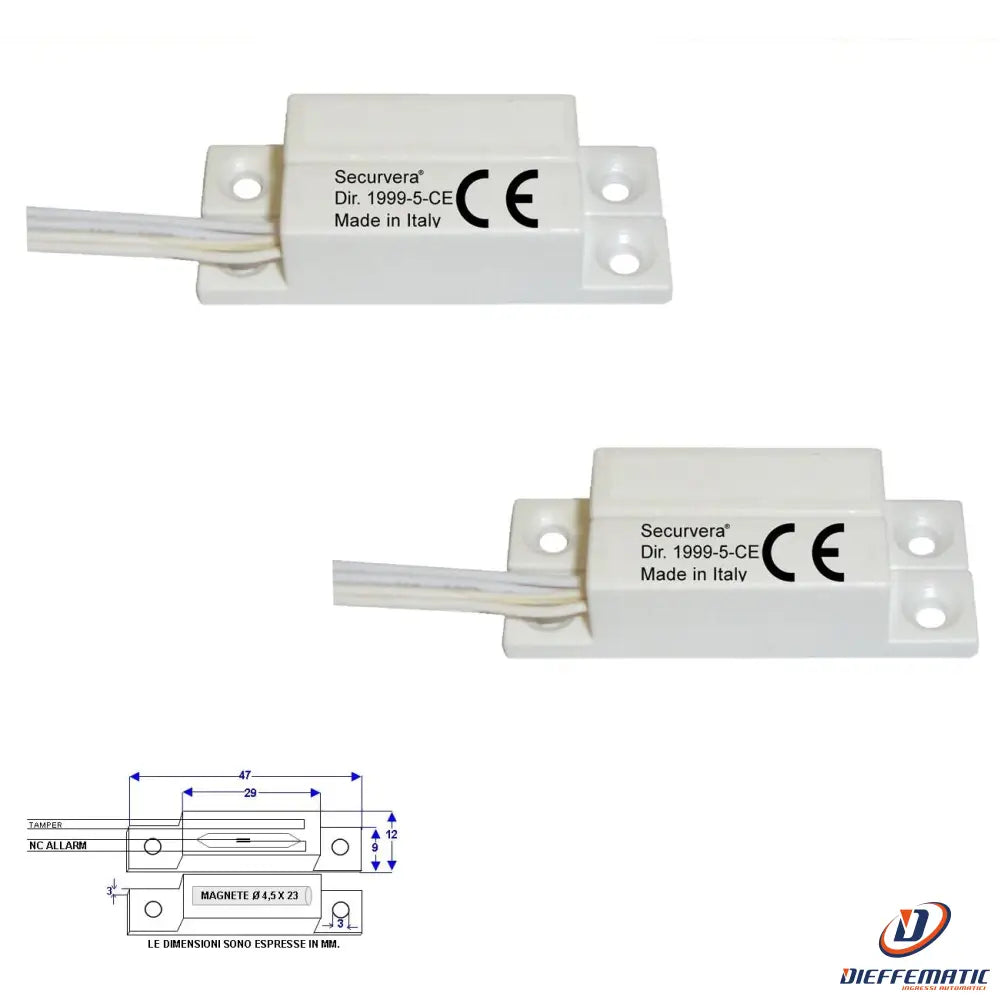

ST-405 NC magnetic contact with vacuum-sealed glass reed switch, with perforated mounting tabs. Maximum current 500 mA at 30 V. Maximum power 10 W. Magnetic range 13 mm. Consists of 2 parts of the same shape. The part with the wires contains a reed contact in a vacuum-sealed glass capsule, in the NO position. The magnet's approach closes the contacts to the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting frames in general, provided they are non-ferrous, doors, windows, counters, limit switches for moving machinery, and more. The contact part, that is, the part with the wires, must be installed on the fixed part of the frame (frame), while the magnet is installed opposite it on the moving part (door). Protected frames must be fully closed. Complies with CEI 79/2 directive. Made of ABS plastic. IP 65 protection. Wire connection. Compliant with CEI 79-2 Level 1. Rectangular plastic housing with perforated tabs. Suitable for monitoring the opening of frames (non-ferrous). Installed dimensions L46XH23XS8 mm. Weight 12 g. Product assembled at the facility selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults.Product assembled and selected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. EEC 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
02 ST-405 RED Vacuum-Sealed Reed Magnetic Contact in Brick Shape, ABS, Max. Current 30 V 0.5 A, IP 65 Protection, 4 Wires, 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as required by law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Assembly Instructions; Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
