Description
Recessed Magnetic Contact, 2 Magnetic Sensors, 8 mm, Reed, NC Output, 4-Wire Connection, Max Transit Voltage 100 V, 10 W Resistive Load, Anti-Intrusion for Non-Ferrous Window Frames, Cylindrical ABS, IP65 Protection
Model ST-415CPDSMPE
SKU: ST-415CPDSMPE

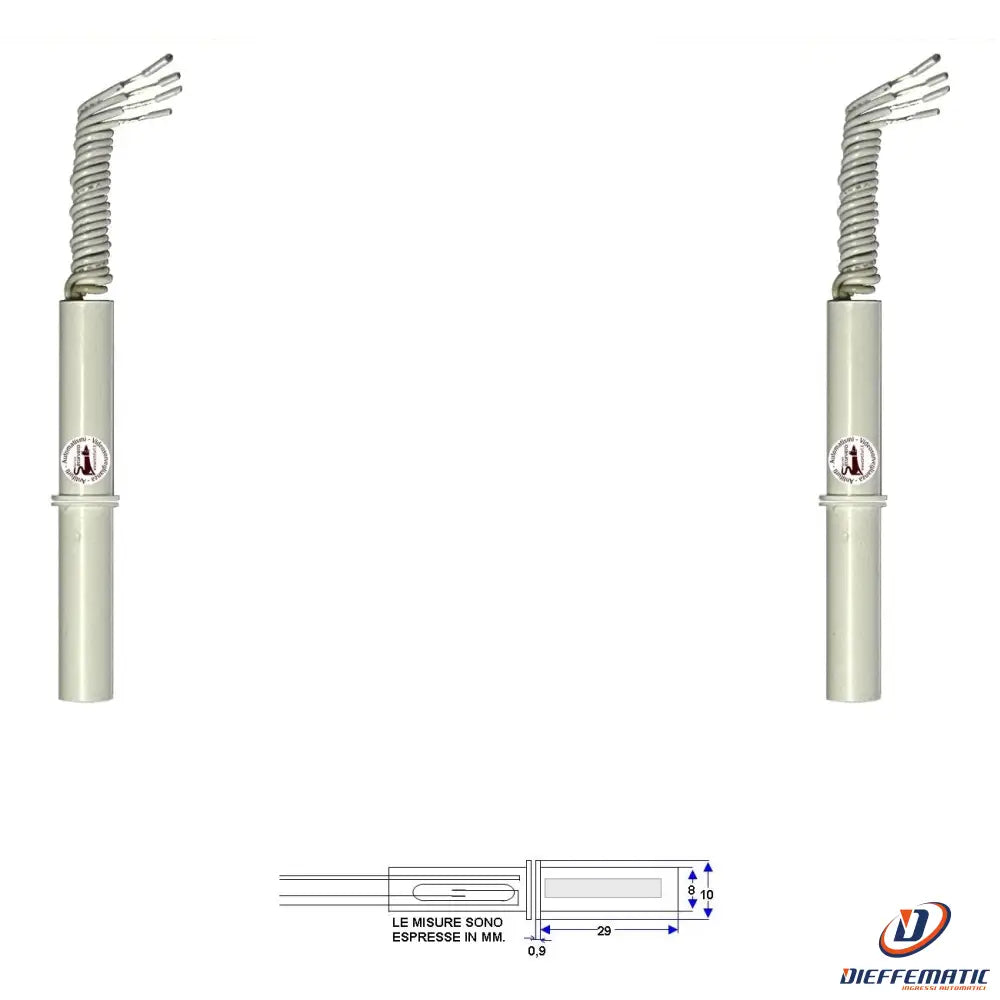

ST-415 Cylindrical Nail-Type Recessed ABS Magnetic Contact. Vacuum-sealed glass capsule contacts, NC and NC tamper. 4-wire connection, over 10 cm in length. Magnetic field sensitivity: 8 mm. Consists of 2 pieces of the same shape. It is secured by force-fitting into a suitable hole. The wired section contains the reed contact; bringing the magnet close causes the contact to close. The other section contains a permanent magnet. Suitable for monitoring the opening of doors and non-ferrous window frames; concealed installation. Complies with CEI 79-2 Level 1. General characteristics and specifications: Operating temperature from -25 to +70°. IP 65 protection. Max voltage 100 Vcc. Maximum power 10 W. Installed dimensions L58XD8XT10 mm. Weight 9 g. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6 CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continually updated
COMPONENTS FOR SALE:
02 ST-415 ABS Recessed Nail-Type Magnetic Contact RED Vacuum-Sealed Max Current 100 V 10 W IP41 Protection NC Contact. 2 Terminals
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
