Description
Two-Piece External Magnetic Contact with Mounting Holes Reed Sensor Magnetic Sensitivity 13 mm Maximum Contact Voltage 30 V 0.5 A Resistive Load NC Alarm Output Brown ABS Cover IP65 Protection
Model ST-41MCMEP2SD
SKU: ST-41MCMEP2SD

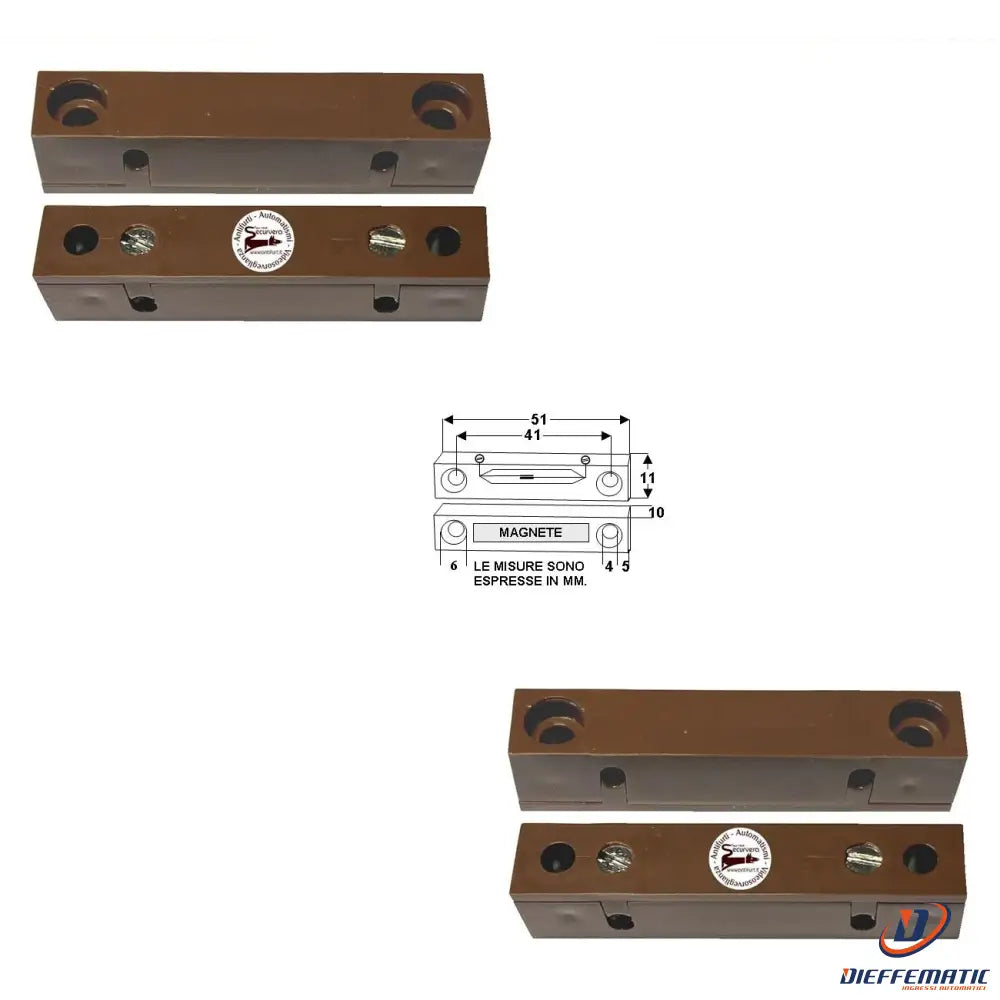

ST-41M NC magnetic contact with vacuum-sealed glass reed switch and mounting holes. Maximum current: 500 mA at 30 V. Maximum power: 10 W. Magnetic range: 13 mm. Consists of 2 pieces with the same shape. The part with the terminals contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet closer closes the contacts into the NC position. The other part contains a permanent magnet. Operating temperature: -25 to +70°. Particularly suitable for protecting general non-ferrous fixtures, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, that is, the part with the terminals, must be installed on the fixed part of the fixture (frame), with the magnet positioned opposite it on the moving part (door). The protected fixtures must be fully closed. Complies with directive CEI79/2. Connection: 2 terminals. Compliant with 1st level CEI 79-2. Brown rectangular ABS housing with mounting holes. IP40 protection. Suitable for monitoring the opening of non-ferrous fixtures. Dimensions L51XH11XS10 mm. Weight: 12 g. Product assembled and selected at the Securvera facility in Rome. Covered by the statutory 24-month warranty against manufacturing defects and faults. Complies with European directives: EN50131-2-6 CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
COMPONENTS FOR SALE:
02 ST-41M Brick-Shaped ABS Magnetic Contact RED Vacuum-Sealed Maximum Current 30 V 0.5 A IP41 Protection NC Contact 2 Terminals
01 SV-GAR Statutory Warranty Certificate: 24 Months; Qualified Installation Requirements under Ministerial Decree 37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
