Description

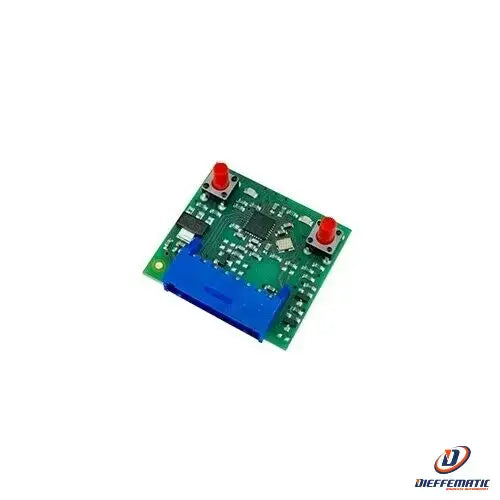

433.92 MHz plug-in 2-channel receiver (50 storable codes) for H70, B70, EDGE and CTRL series control units.
Mod. H93/RX20/I
SKU: H93/RX20/I
Standard power supply: 5V DC
Current consumption: 15mA
Operating temperature: -10+55°C
Number of channels: 2
Encoding: Fixed code
Modulation: AM/ASK
Carrier frequency: 433.92 MHz
Outputs: Open collector
Storable codes: 50
Sensitivity: -107 dBm
Input impedance: 50 Ω
Maximum product dimensions in mm (L x W x H): 34 x 31 x 12
24-month warranty
