Description

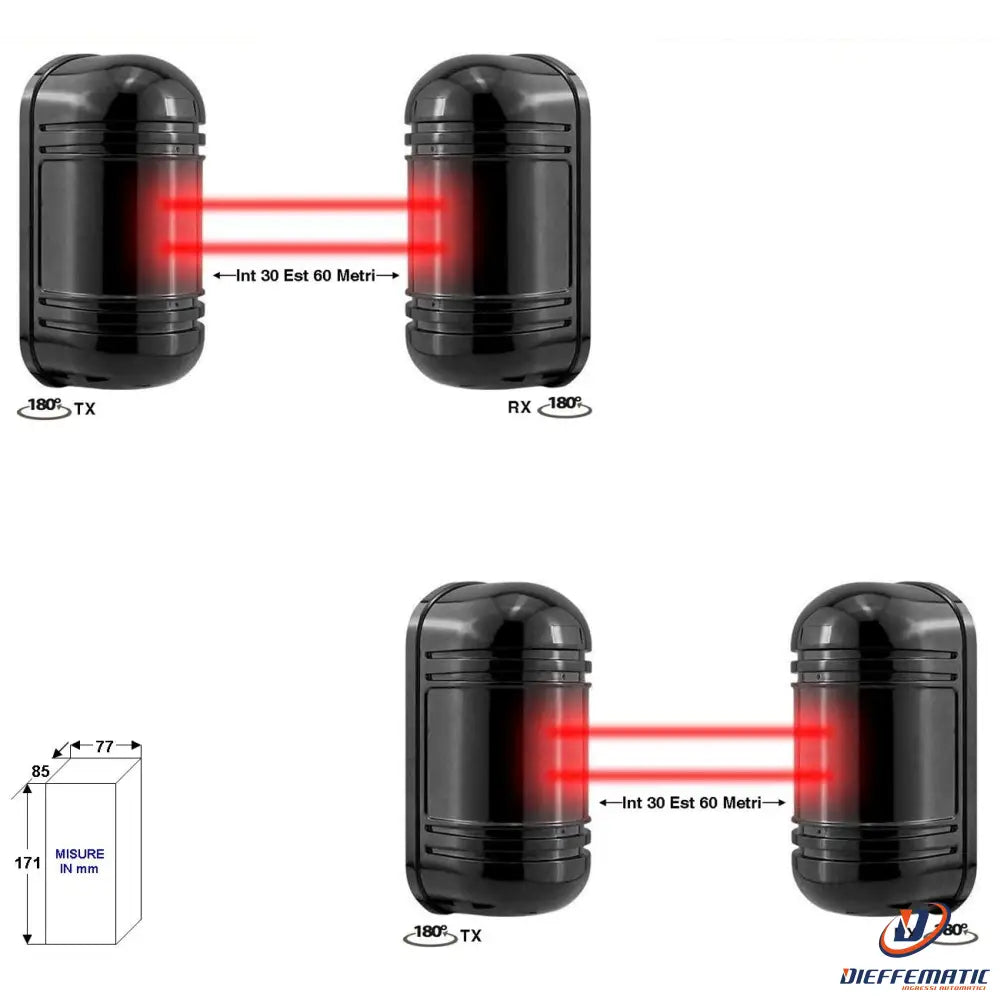

Active infrared, double adjustable beam, 2 pieces, linear barrier, passage sensor signals intruder alarm, range 60 m indoors, 30 m outdoors, wired connection, 12 V power supply, burglar alarm barrier
Mod. SD-BET2BDRSOC
SKU: SD-BET2BDRSOC
SD-BET synchronized active double-infrared barrier with AND alarm logic. Range indoors: 5 to 60 metres; outdoors: 5 to 30 metres. Alignment sight with signal test LED. Buzzer for walk test. Selection of 8 frequencies for installing 32 pairs on the same bus. Sensitivity adjustable from 50 to 700 mS. Automatic gain. NC relay output. NC receiver tamper. Operating temperature from - 25° to + 55°. 12 V power supply. Current consumption: 120 mA. Frost-resistant polycarbonate enclosure, IP54. Dimensions L85XH171XP77 mm. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults. Complies with all European Directive standards: UNI EN 12453-EN 12445 CEE 89/336 + 93/68 D.L. 04/12/1992 N. 476. Directive 2004/30/CE:2014/30/UE - EN 50130-4:2012 + A1: 2014 - EN 61000-6-3+A1:2011/AC:2012 - EN 50581:2012. Electromagnetic Compatibility 2014/30/UE
LIST OF COMPONENTS FOR SALE:
02 SD-BET Wired Infrared Barrier, Linear Protection, 60 m Indoors, 30 m Outdoors, Double-Beam Adjustable 180° Passage Sensor
01 SV-GAR Warranty Certificate, as required by law: 24 Months; Qualified Installation Requirements D.M.37/2008, lifetime coverage against manufacturing defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Secure Mounting, Connections, Settings, Adjustments
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER’S MANUAL
24-month warranty
