Description

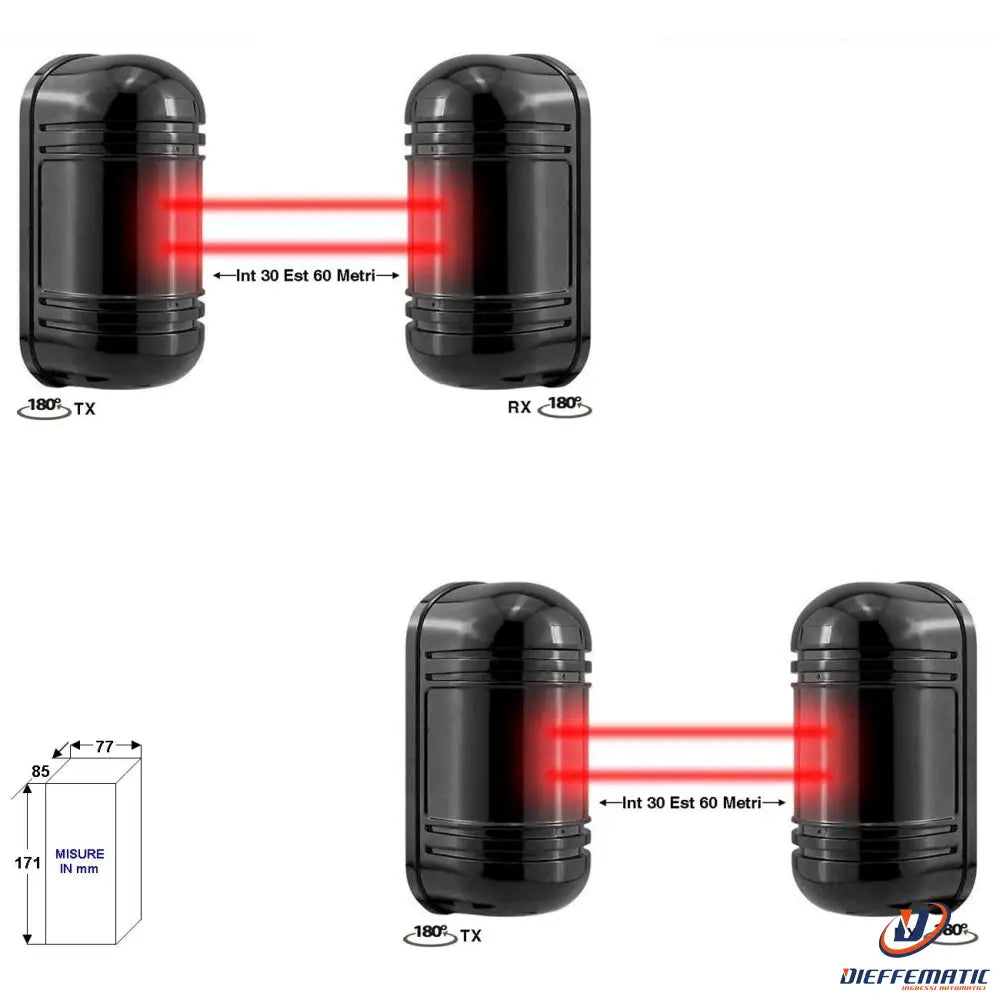

2-Piece Active Infrared Beam Barrier, Double Beam, Intruder Alarm, Linear Protection, Stranger Passage Sensor, Range 60 m Indoor, 30 m Outdoor, Adjustable, Wired Connection, 12 V Power Supply
Mod. SD-BET2BDRSOA
SKU: SD-BET2BDRSOA
SD-BET synchronized dual active infrared beam barrier with AND alarm logic. Indoor range: 5 to 60 meters; outdoor range: 5 to 30 meters. Alignment sight with signal test LED. Buzzer for walk test. 8 selectable frequencies for installing 32 pairs on the same bus. Adjustable sensitivity from 50 to 700 ms. Automatic gain. NC relay output. NC receiver tamper. Operating temperature from - 25° to + 55°. 12 V power supply. Current consumption: 120 mA. Frost-resistant IP54 polycarbonate housing. Dimensions L85XH171XP77 mm. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults. Complies with all European Directive standards: UNI EN 12453-EN 12445 CEE 89/336 + 93/68 Legislative Decree 04/12/1992 No. 476. Directive 2004/30/EC:2014/30/EU - EN 50130-4:2012 + A1: 2014 - EN 61000-6-3+A1:2011/AC:2012 - EN 50581:2012. Electromagnetic Compatibility 2014/30/EU
LIST OF COMPONENTS FOR SALE:
02 SD-BET Wired Infrared Barrier, 60 m Indoor, 30 m Outdoor Linear Protection, Double-Beam Passage Sensor, 180° Adjustable
01 SV-GAR Warranty Certificate, as required by law: 24 Months; Qualified Installation Requirements, Ministerial Decree 37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Assembly Instructions; Must Be Followed: Protected Mounting, Connections, Setup, Adjustments
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
