Description
Dual Active Infrared Beam, Adjustable Barrier, 2 Pieces, Signals Alarm When an Intruder Passes, Protection Range: 200 m Indoor, 100 m Outdoor, Wired Connection, 12 V Power Supply, Linear Anti-Intrusion Sensor
Mod. SD-BEC2BDRSOD
SKU: SD-BEC2BDRSOD

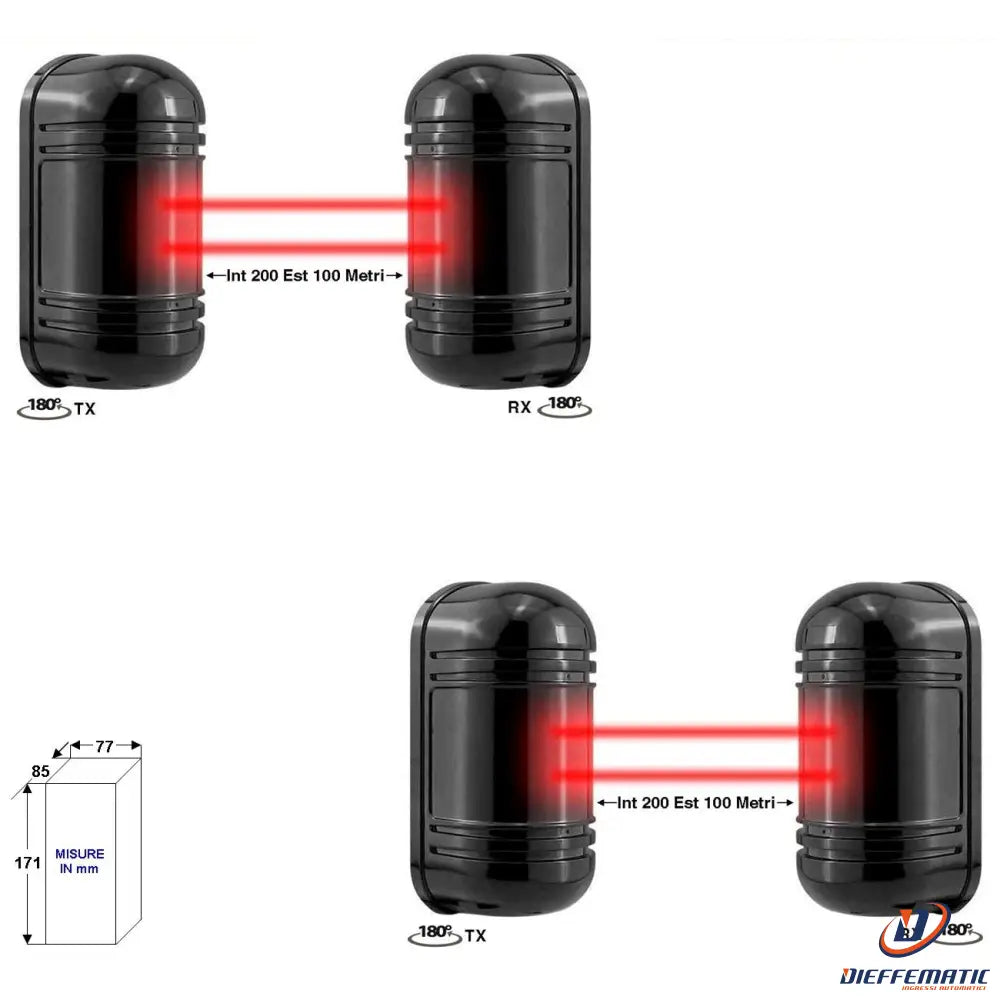

SD-BEC synchronized dual active infrared barrier with AND alarm. Indoor range from 60 to 200 metres, outdoor range from 60 to 100 metres. Alignment sight with signal test LED. Buzzer for walk test. 8 frequency selections for installing 32 pairs on the same bus. Sensitivity adjustable from 50 to 700 mS. Automatic gain. NC relay output. NC receiver tamper. Operating temperature from -25° to +55°. 12 V power supply. Current consumption: 120 mA. Anti-frost polycarbonate housing, IP54. Dimensions L85XH171XP77 mm. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults. Complies with all standards of the European Directives: UNI EN 12453-EN 12445 CEE 89/336 + 93/68 D.L. 04/12/1992 N. 476. Directive 2004/30/CE:2014/30/UE - EN 50130-4:2012 + A1: 2014 - EN 61000-6-3+A1:2011/AC:2012 - EN 50581:2012. Electromagnetic Compatibility 2014/30/UE
LIST OF COMPONENTS FOR SALE:
02 SD-BEC Wired Infrared Barrier, Linear Protection, 200 m Indoor Range, 100 m Outdoor Range, Adjustable 180° Double-Beam Passage Sensor
01 SV-GAR Warranty Certificate, as required by law: 24 months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Followed: Secure Mounting, Connections, Settings, Adjustments
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
