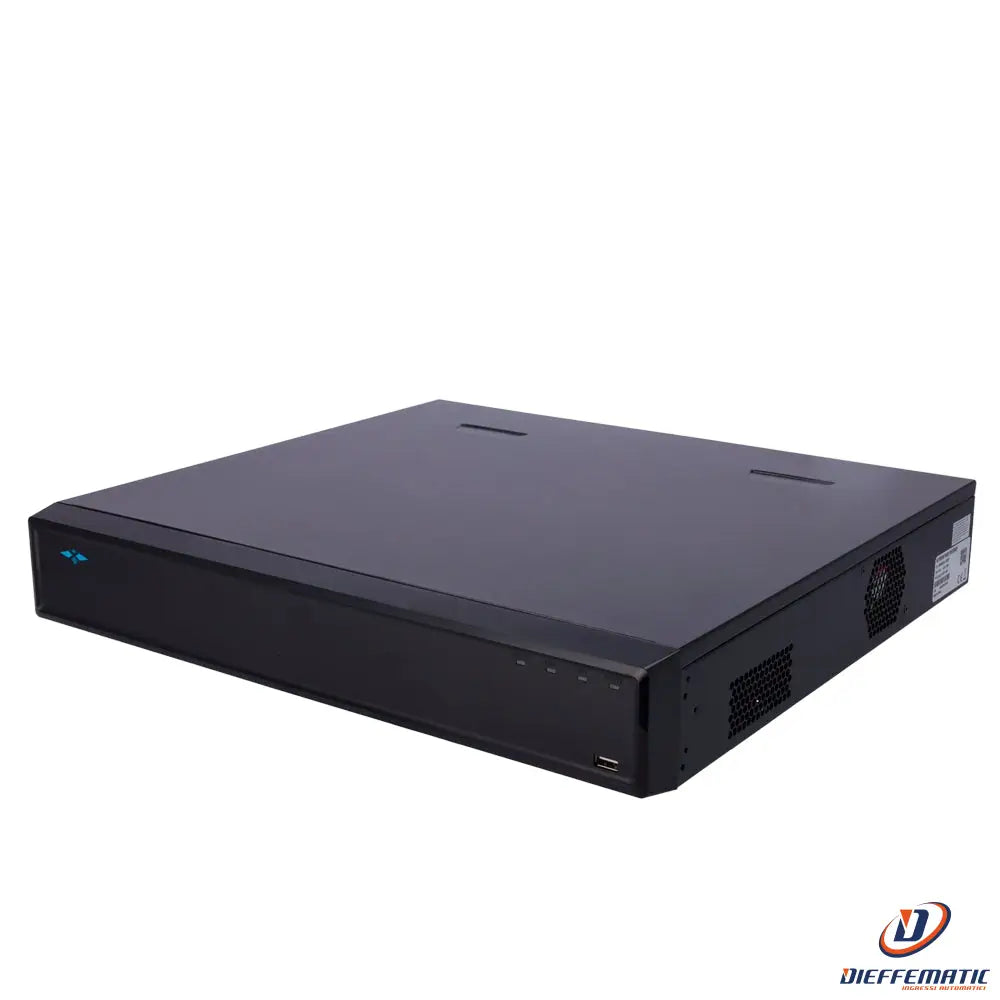

X-Security XS-NVR6416A-4K16P NVR for IP cameras

NVR recorder for IP cameras

Model XS-NVR6416A-4K16P

SKU: XS-NVR6416A-4K16P

• X-Security NVR recorder for IP cameras

• 16 CH video | H.265+ compression

• 16 PoE channels

• Maximum resolution: 12 Mp

• 4K HDMI output, Full HD HDMI and 2 VGA

• Web, DSS/PSS, smartphone and NVR


DESCRIPTION:

• X-Security

• NVR recorder for IP cameras

• 16 CH

• Supported bandwidth: 320Mbps

• Maximum resolution: 12 megapixels

• H.265+/H.265/H.264+/H.264

• Smart functions: 14 CH real-time facial recognition, 16 CH perimeter protection and 4 CH ANPR (camera-based analytics)

• Resolution up to 8Mpx

• PTZ control

• Alarms

• Audio

• 4K HDMI output, Full HD HDMI and 2 VGA

• Space for 4 HDDs

• Web interface, CMS and smartphone

• 16 IEEE802.3af/at PoE ports

• ONVIF compatible


SPECIFICATIONS:

Brand
X-SECURITY

IP camera inputs
LAN port for up to 16 channels

PoE power supply
Up to 16 channels, 150 W

Video output
1 4K HDMI, 1 Full HD HDMI, 2 VGA

Compatible IP cameras
X-Security (native protocol), ONVIF

Audio inputs
1 RCA input

Audio outputs
2 RCA outputs

Two-way audio
Using the audio input

Video compression format
H.265+ / H.265 / H.264+ / H.264 / MPEG4

Display resolution
HDMI1: 3840x2160; 1920x1080; 1280x1024; 1280 x 720
VGA1: 1920x1080; 1280x1024; 1280x720
HDMI2/VGA2: 1920x1080

Total bandwidth
320 Mbps

Recording resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1

Decoding resolution
16-channel @ 1080P (30 fps)

Alarms
16 inputs, 6 NO/NC relays

Recording mode
Manual, scheduled, motion detection, alarm

Artificial intelligence
Facial recognition on up to 14 CH, license plate reading on up to 4 CH, or recognition of people and vehicles on up to 16 CH according to VCA rules.
*Camera-based analytics

Smart functions
Line crossing, intrusion detection, abandoned object, face detection, heat map

Backup
USB (memory device, HDD, CD-RW, DVR-RW) / Network / SATA

Internal storage
4 x 3.5" SATA HDDs up to 10 TB (not included)

Communication
3xUSB ports / 2 RJ45 10/100/1000M (Ethernet)

Remote access
Browser (ActiveX), smartphone app or PSS software

Power supply
100 ~ 240 VAC / 16.7W (without HDD) / 150W (with PoE)

Dimensions
76 (W) x 440 (L) x 412.2 (H) mm / 4.3 kg (without HDD)


CONTENTS:

• X-SECURITY NVR recorder

• Mouse

• Ethernet cable

• Power cable

• User instructions

• CD with manual and software

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
