Description
230 V AC - 50 Hz
Mechanical limit switch
Optional external receiver

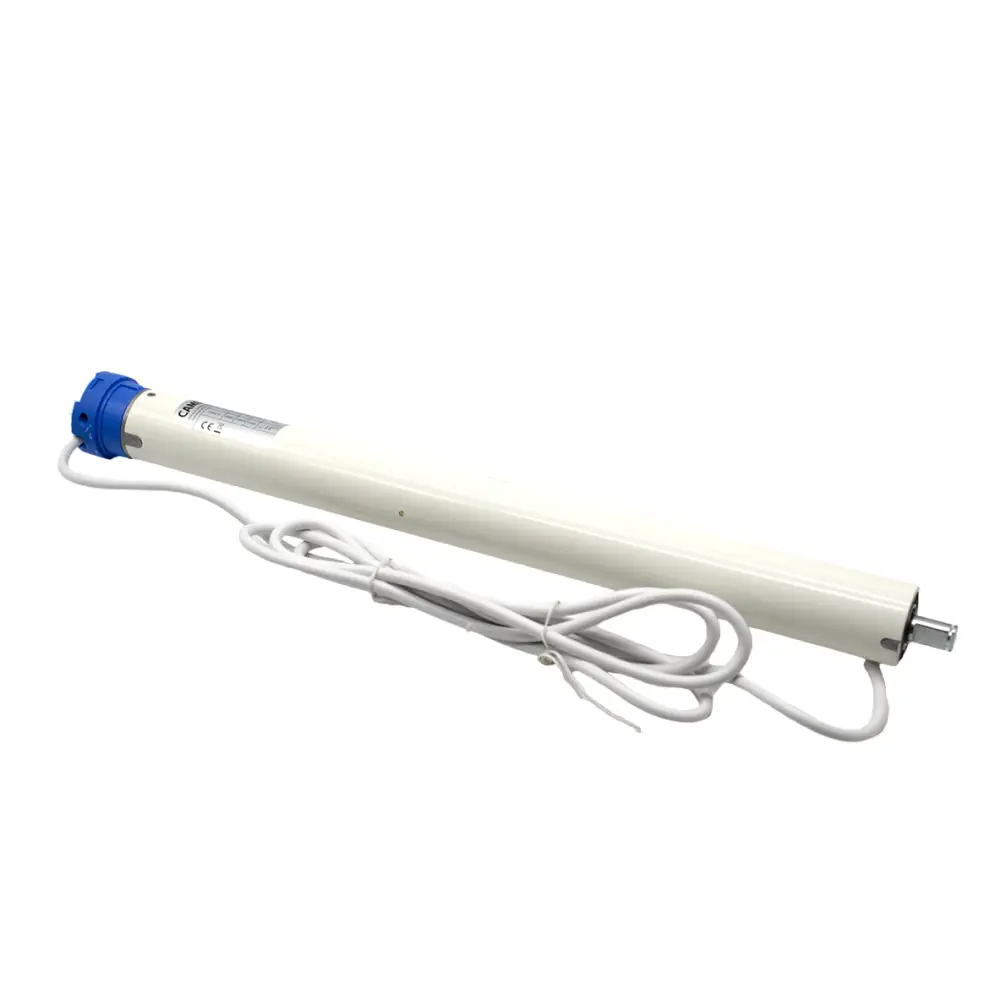

Model MONDRIAN 5 - Ø 45
• Can be used with a 50 mm round or octagonal tube.
• Manual mechanical limit switch with progressive screw adjustment.
• Universal head for fitting any mounting plate.
Torque (Nm): 50
Speed (rpm): 12
Lifting capacity (kg)*: 92
Limit switch revolutions (turns): 22
Operating time (min): 4
Protection rating (IP): 44
Current draw (A): 0.89
Power (W): 205
Length (mm) = L1: 523
Weight (kg): 2.6
Package dimensions (mm): 585 x 80 x 80
Packaged motor weight (kg)2.8
24-month warranty
