Description

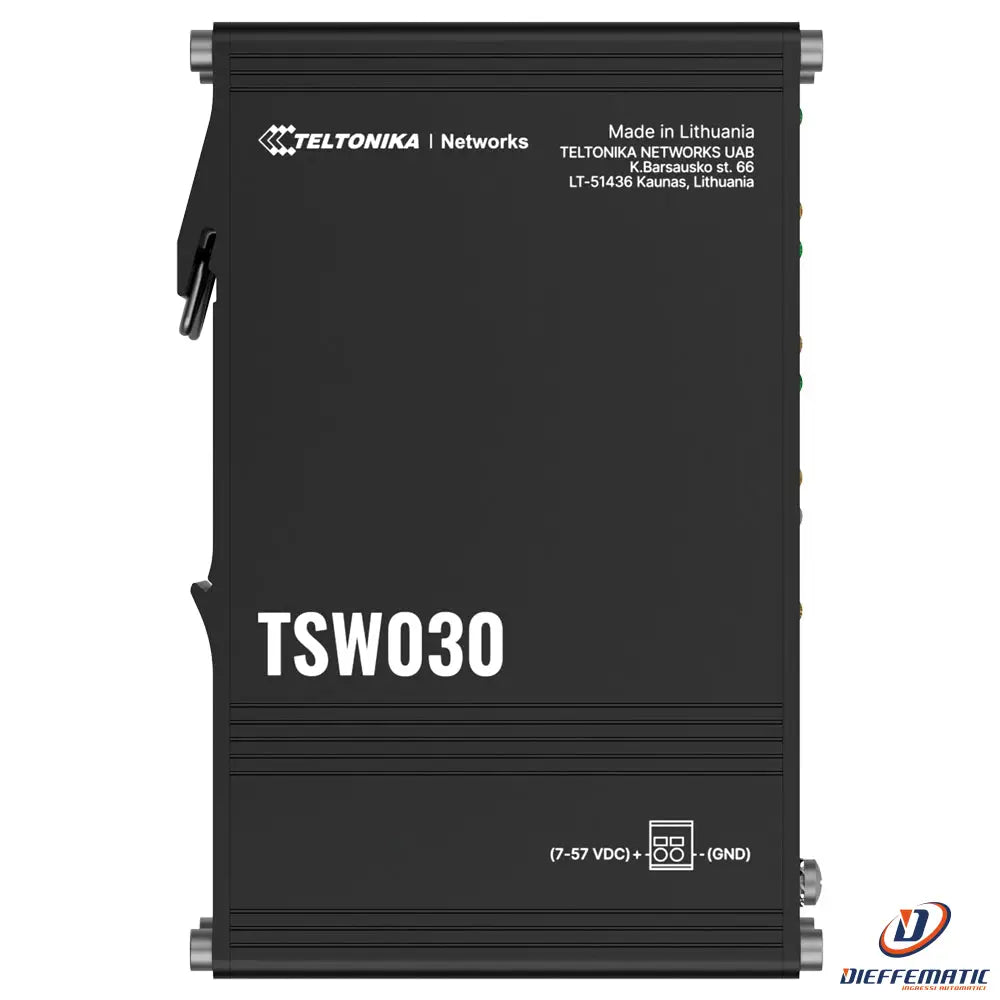

Industrial Unmanaged Switch
Model TK-TSW030
SKU: TK-TSW030
• Teltonika Industrial Unmanaged Switch
• 8 Fast Ethernet RJ45 ports
• Rugged aluminum housing
• Plug and Play
• DC 5 to 57V power supply
• Status LEDs
DESCRIPTION:
• Teltonika
• Industrial Unmanaged Switch
• Slim form factor
• 8 Gigabit RJ45 Ethernet ports
• Plug and Play
• 2-pin industrial DC power connector
• DC 5 to 57V
• Status LEDs
• Rugged
SPECIFICATIONS:
Brand
Teltonika
Device
Industrial Unmanaged Switch
Ethernet
8 10/100Mbps RJ45 Ethernet ports
Compliant with IEEE 802.3 standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Switching capacity (non-blocking)
20Gbps
MAC table
2K entries
Packet buffer
128 Kb
Jumbo frame
9216 bytes
Technology
Auto MDI/MDI-X cable detection
Power supply
Industrial 2-pin DC connector 7 to 57 V
Power consumption
Standby: 0.5W / Max: 1.5W
Power protection
Overvoltage protection: 60 V max
Reverse polarity protection: 80 V max
Surge protection: min. 64.4 V/max. 71.2 V
Breakdown input voltage, 93.6 V maximum reverse voltage @4.3 A reverse surge current.
Material
Aluminum
Protection rating
IP30
Operating temperature
-40° C ~ +75° C
Operating humidity
10 ~ 90% (non-condensing)
Optional Mounting Kit (Not included)
DIN Rail Mounting Kit
Dimensions
41.2 (H) x 113.1 (L) x 74.6 (D) mm
Weight
256 g
CONTENTS:
• Slim Industrial Switch
• User manual
• Integrated DIN rail mounting
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
