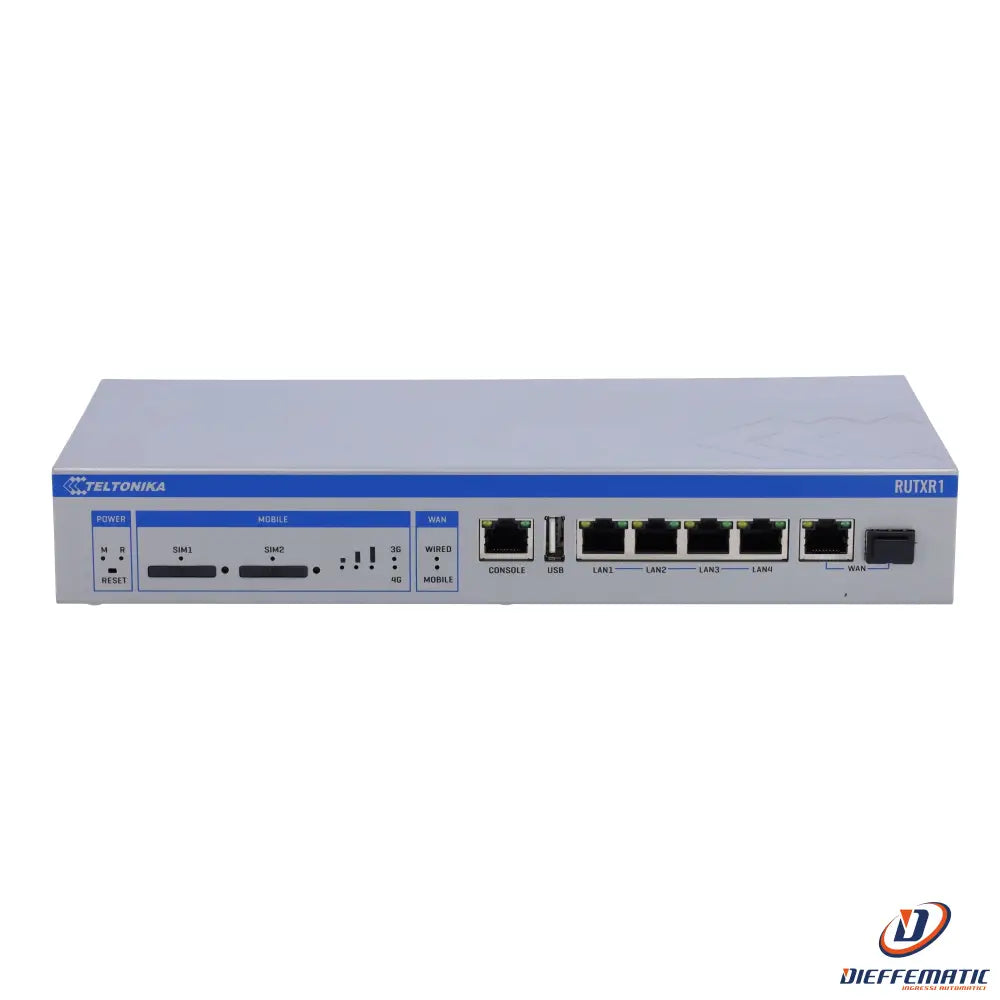

Teltonika TK-RUTXR1 Industrial 4G Router

Industrial 4G Router

Model TK-RUTXR1

SKU: TK-RUTXR1

• Teltonika Industrial 4G Router

• Dual SIM 4G Cat 6

• Wi-Fi 5

• 4 Gigabit Ethernet RJ45 ports

• Gigabit SFP port

• Rack mounting


DESCRIPTION:

The Teltonika TK-RUTXR1 is a highly versatile, reliable and secure 4G LTE industrial router, suitable for applications requiring high data transfer speeds, advanced security, flexible connectivity and remote management. Its resilience in industrial environments and ability to support IoT applications make it an ideal solution for video surveillance, industrial automation, remote monitoring and other critical use cases where a constant, secure connection is essential.

It offers outstanding remote management (RMS) and VPN features.

RMS (Remote Management System): This router enables remote management through the RMS platform, making it easier to monitor and control connected devices from anywhere. It is particularly useful for businesses that need to manage multiple routers at different locations, as it provides a centralized interface for configuration, updates and device status monitoring.

VPN (Virtual Private Network): Supports several VPN protocols, enabling secure, private connections over the Internet. It is ideal for protecting sensitive information and ensuring secure communications between different networks or devices. With the ability to configure a VPN, users can access the network remotely without compromising security.


• Industrial 4G Router

• 4G Cat 6

• Rack-mountable - Dual SIM

• Dual-band Wi-Fi 5 Wave 2

• 5 Gigabit Ethernet RJ45 ports

• SFP port

• USB 2.0

• Wi-Fi and LTE antennas

• 2x industrial 4-pin DC power connectors

• 9 to 50V DC power supply, included

• Status LED


SPECIFICATIONS:

Brand
Teltonika

Device
Industrial 4G Router

Wi-Fi
Wi-Fi 5 802.11ac Dual Band 2.4GHz+ 5GHz

Ethernet
4 RJ45 Ethernet ports 10/100/1000Mbps (1 WAN + 4 LAN)

SFP port
1 port, cannot operate simultaneously with the Ethernet WAN port.

Antenna connectors
LTE and Wi-Fi (antennas included)

CPU
Quad-core ARM Cortex A7, 717 MHz

RAM
256MB DDR3

Flash
256MB

Operating system
RutOS (based on OpenWRT)

Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet

VPN protocols
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier

Monitoring and Management
WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS

Cloud solutions
RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx

Services
DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging

Power supply
2x industrial 4-pin DC connector 9~50V Power supply included

Material
Steel

Operating temp.
-40° C ~ +75° C

Operating humidity
10 ~ 90 % (non-condensing)

Installation
19" rack mounts included

Dimensions
42.6 (H) x 272 (L) x 122.6 (D) mm

Weight
1050 g

Dual SIM
Automatic switching for low signal / data limit / roaming / no network

Regions
Europe, Middle East, Africa, Australia, APAC2, Brazil and Malaysia


CONTENTS:

• Industrial router

• 2x Wi-Fi antennas

• 2x LTE antennas

• 18W AC power supply

• 1.5 m Ethernet cable

• User instructions

• SIM adapter

• 4x pads

• Rack mounting kit

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Guide TK-RUTXR1

24-month warranty
