Description

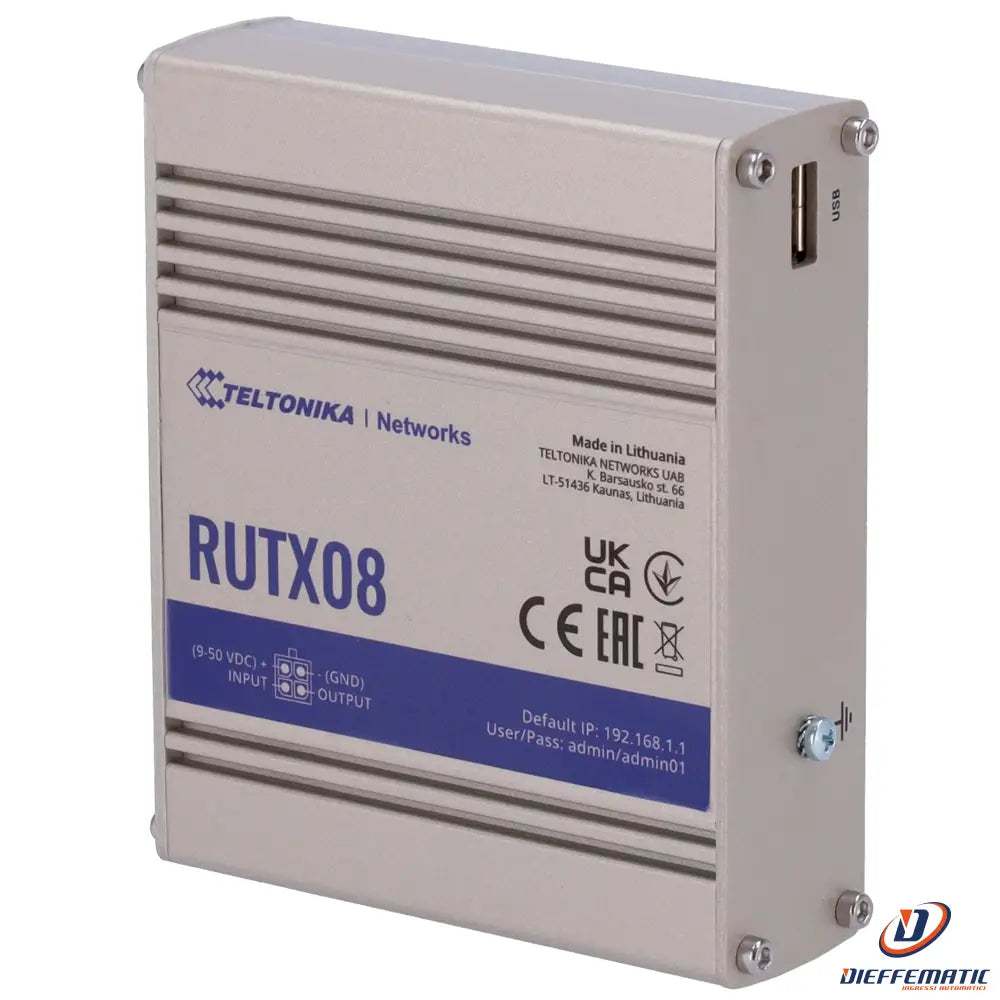

Industrial Router
Model TK-RUTX08
SKU: TK-RUTX08
• Teltonika Industrial Router
• 4 Gigabit RJ45 Ethernet ports
• USB 2.0
• Digital input/output
• Aluminum housing
DESCRIPTION:
• Teltonika
• Industrial router
• 4 Gigabit RJ45 Ethernet ports
• USB 2.0 and digital input/output
• 4-pin industrial DC power connector
• 9 to 50 V DC power supply, included
• Can be powered via Passive PoE
• Status LEDs
SPECIFICATIONS:
Brand
Teltonika
Device
Industrial router
Ethernet
4 RJ45 Ethernet ports 10/100/1000Mbps (1 WAN + 3 LAN)
CPU
Qualcomm 4x ARM Cortex A7 717MHz
RAM
256MB
Flash
256MB
Inputs and outputs
1 x digital input, 0 - 6 V detected as low level, 8 - 30 V detected as high level
1 x digital output, open collector input, maximum output 30 V, 300 mA
Operating system
RutOS (based on OpenWRT)
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA
VPN protocols
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
Monitoring and management
WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Cloud solutions
RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Services
DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
Power supply
Industrial 4-pin DC connector, 9~50V, power supply included
Material
Aluminum
Operating temperature
-40° C ~ +75° C
Operating humidity
10 ~ 90 % (non-condensing)
Optional Mounting Kit (Not included)
DIN Rail Mounting Kit, Compact DIN Rail Mounting Kit, Surface Mounting Kit
Dimensions
32.2 (H) x 115 (L) x 95.2 (D) mm
Weight
345 g
CONTENTS:
• Industrial router
• 18 W AC power supply
• 1.5 m Ethernet cable
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
TK-RUTX08 User Guide
24-month warranty
