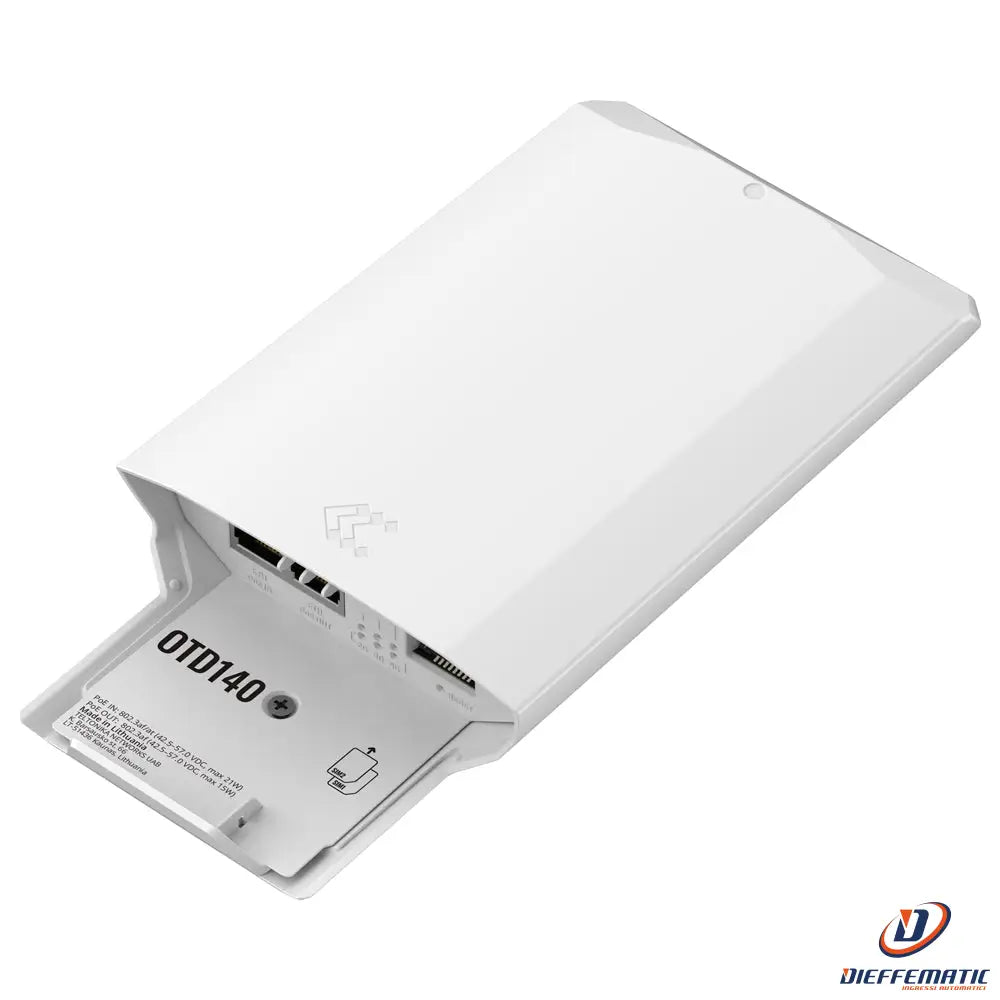

Industrial Outdoor 4G Router
Model TK-OTD140
SKU: TK-OTD140
• Teltonika Industrial Outdoor 4G Router
• 2 Fast Ethernet RJ45 ports
• 4G (LTE) Cat 4 up to 150Mbps
• Powered by PoE In 802.3af (42.5 - 57.0 VDC)
• IP55 protection rating
• Dual SIM slot
DESCRIPTION:
• Teltonika
• Industrial outdoor 4G router
• 4G Cat4 / 3G / 2G
• 2 SIM slots
• IP55
• Dual SIM for failover
• 2 Fast Ethernet RJ45 ports
• 802.3af/at standard PoE In power supply
• 1 PoE Out port
• 4 x status LEDs
SPECIFICATIONS:
Brand
Teltonika
Device
Industrial outdoor 4G router
Ethernet
2 RJ45 10/100Mbps Ethernet ports (2x WAN/LAN)
PoE features
802.3af Alternative B
Dual SIM format
2 x Mini SIM - 2FF
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128MB DDR2
Flash
16MB
4G type
Cat 4 up to 150Mbps
Operating system
RutOS (based on OpenWRT)
Routing protocols
BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routing
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP ,Telnet , SMPP, SNMP, MQTT, Wake On Lan (WOL), OPC UA, Azure MQTT, DNP3, DLMS
VPN protocols
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
Monitoring and management
WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, MODBUS
Cloud solutions
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Services
DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
Internal antennas
1 x 698 - 960 / 1710 - 2690 MHz, 50 ?, VSWR <3,5, gain <3 dBi, omnidirectional
1 x 698 - 960 / 1710 - 2690 MHz, 50 ?, VSWR <3, gain <4,5 dBi, omnidirectional
Power supply
PoE In 802.3af/at (42,5-57,0 VDC), reverse polarity protection, overvoltage protection
Material
Plastic (PC/ASA)
Temp.
Operating
-40° C ~ +75° C
Operating humidity
10 ~ 90 % (non-condensing)
Optional mounting kit (not included)
Pole mounting bracket included
Dimensions
49,30 (A) x 110 (L) x 235 (P) mm
Weight
855 g
Power consumption
Standby: < 2,5 W / Max: < 6 W / Maximum PoE < 21 W
CONTENTS:
• Industrial outdoor 4G router
• Router mounting bracket
• User manual
