Description

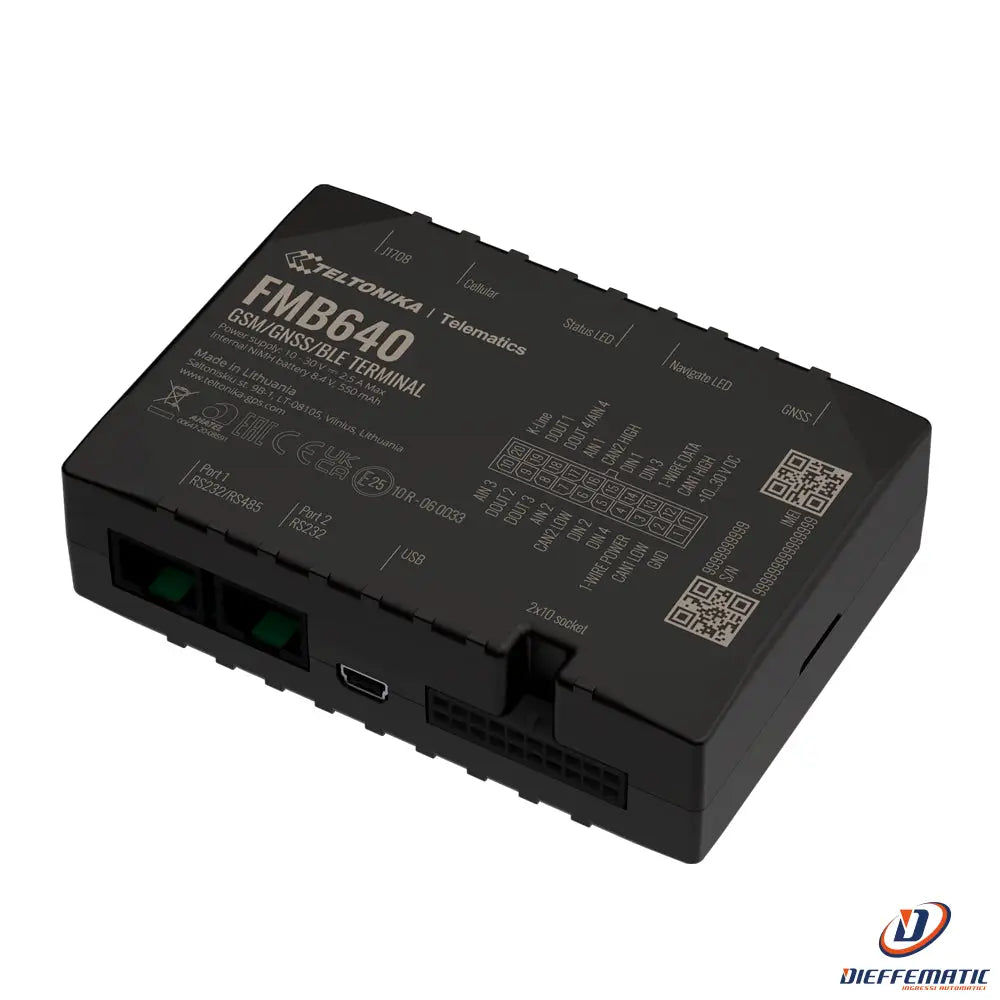

Professional vehicle tracker
Model TK-FMB640
SKU: TK-FMB640
• Professional vehicle tracker
• Connection to the internal wiring
• Concealed installation under the dashboard
• 2G
• Dual-SIM | Tachograph reader for heavy-duty vehicles
• D/A inputs and outputs | CAN bus reading
DESCRIPTION:
• Teltonika
• Vehicle tracker
• Internal wiring installation
• Integrated CAN bus reader
• Tachograph reader
• 2G (GSM/GPRS) connectivity
• GNSS positioning
• External antennas
• Dual-SIM slot and Mini-USB 2.0
• LED indicators
• Digital and analog inputs and outputs
• RS232 and RS485 inputs
• DC 10-30 V power supply
• Integrated battery
• Can be integrated with the AIKO fleet management platform
• AIKO license required for use
• SIM card required for use
SPECIFICATIONS:
Brand
Teltonika
Model
FMB640
Installation
Connection to the vehicle's internal wiring
Positioning
GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS
Mobile connectivity
2G (GSM/GPRS)
Connection interface
2 x SIM (Dual-SIM), 1 x Mini-USB 2.0 (configuration)
Indicators
Status and connectivity LEDs
Sensors
Accelerometer
Inputs
4 x Digital input
4 x Analog input
2 x J1939 CAN bus inputs / 1 x J1708 CAN bus input
1 x 1-Wire input
2 x RS232
1 x RS485
1 x Tachograph input
Outputs
4 x Digital output
Functions
Eco-driving, Overspeed, Forced disconnection, Collision detection, Energy-saving mode, Immobilizer, Anti-jamming
Specific functions
CAN bus data reading: fuel level, fuel consumption, odometer, speed, distance travelled, RPM
Tachograph data reading
Configuration and management
FOTA Web, Teltonika Configurator (USB)
Power supply
DC 10-30 V with overvoltage and reverse polarity protection
Integrated 8.4 V / 550 mAh Ni-Mh battery
Material
Plastic
Protection
Suitable for indoor use (IP41)
Operating temperature
-40 °C ~ +85 °C
Operating humidity
5% ~ 95% (non-condensing)
Dimensions
104.1 (H) x 76.8 (W) x 31.5 (D) mm
Vehicle management
Ideal for integration with the AIKO fleet management platform
Recommended applications
Fleet management, Heavy-duty vehicles, Refrigerated vehicles, Special vehicles, Commercial vehicles
CONTENTS:
• Teltonika tracker
• Connector with cables
• 2 x External antennas
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
TK-FMB640 Quick Guide
24-month warranty
