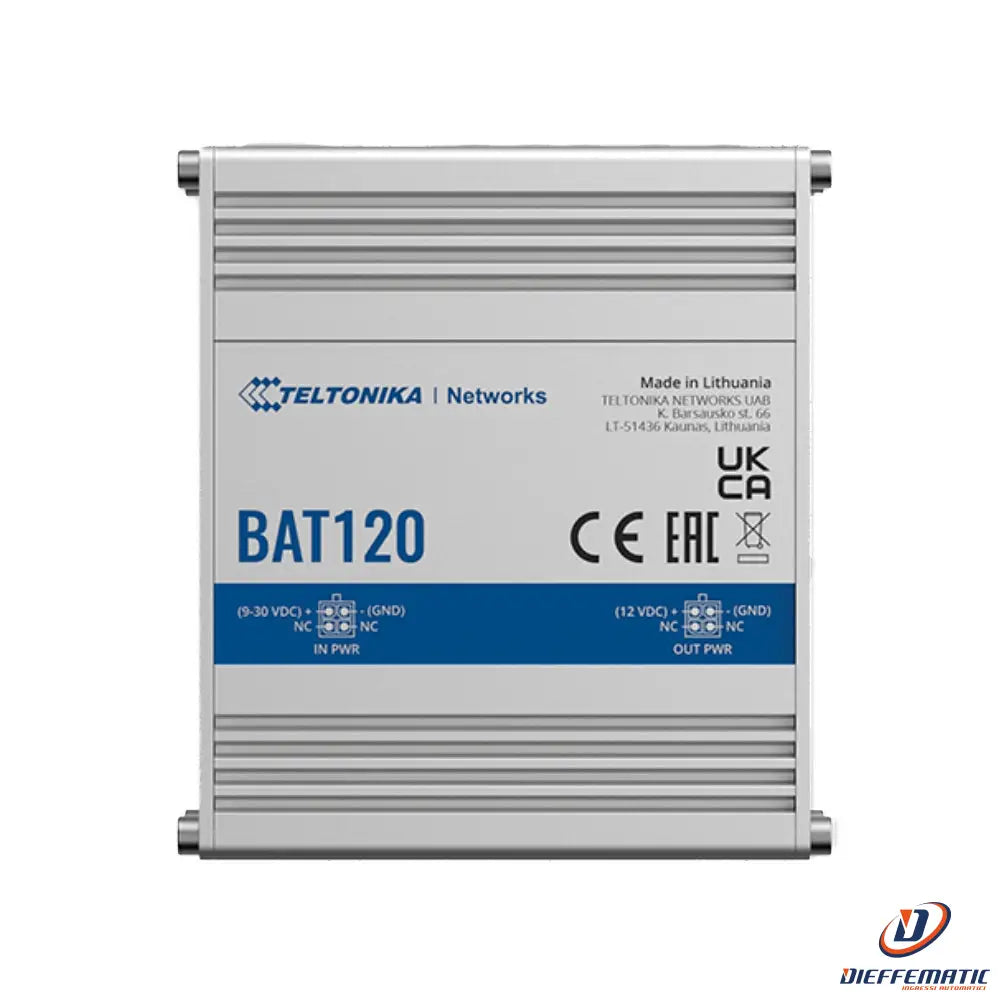

Teltonika TK-BAT120 UPS Input 9 - 30 VDC / Output 9 - 30 VDC

UPS Input 9 - 30 VDC / Output 9 - 30 VDC

Model TK-BAT120

SKU: TK-BAT120

• Teltonika UPS

• Input voltage 9 - 30 VDC / Output 9 - 30 VDC

• Reverse polarity protection

• Overvoltage protection

• 2 8650 lithium-ion batteries (included)

• Battery capacity 2300 mAh 17 Wh


DESCRIPTION:

• Teltonika

• UPS

• Input voltage 9

• 30 VDC

• Output voltage 9

• 30 VDC

• Output voltage in battery mode 12 VDC

• 2 8650 lithium-ion batteries, up to 6 h

• Battery capacity 2300 mAh 17 Wh

• Configure email or SMS alerts in the event of a power outage - Compatible with Teltonika network devices

• Reverse polarity protection, overvoltage protection


SPECIFICATIONS:

Brand
Teltonika

Input voltage
9 ~ 30 VDC

Output voltage
9 ~ 30 VDC (in 12 VDC battery mode)

Battery type
Li-Ion

Mounting
DIN rail or flat surface

Dimensions
30 (H) x 100 (W) x 85 (D) mm 1

Weight
315g

Compatible
RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100

Operating temperature
0°C ~ 45°C

Certifications
CE/RED, UKCA, EAC

Status LEDs
1 x IN PWR LED, 1 x OUT PWR LED, 4 x power status LEDs


CONTENTS:

• UPS

• Power supply

• Power cable

• User manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
