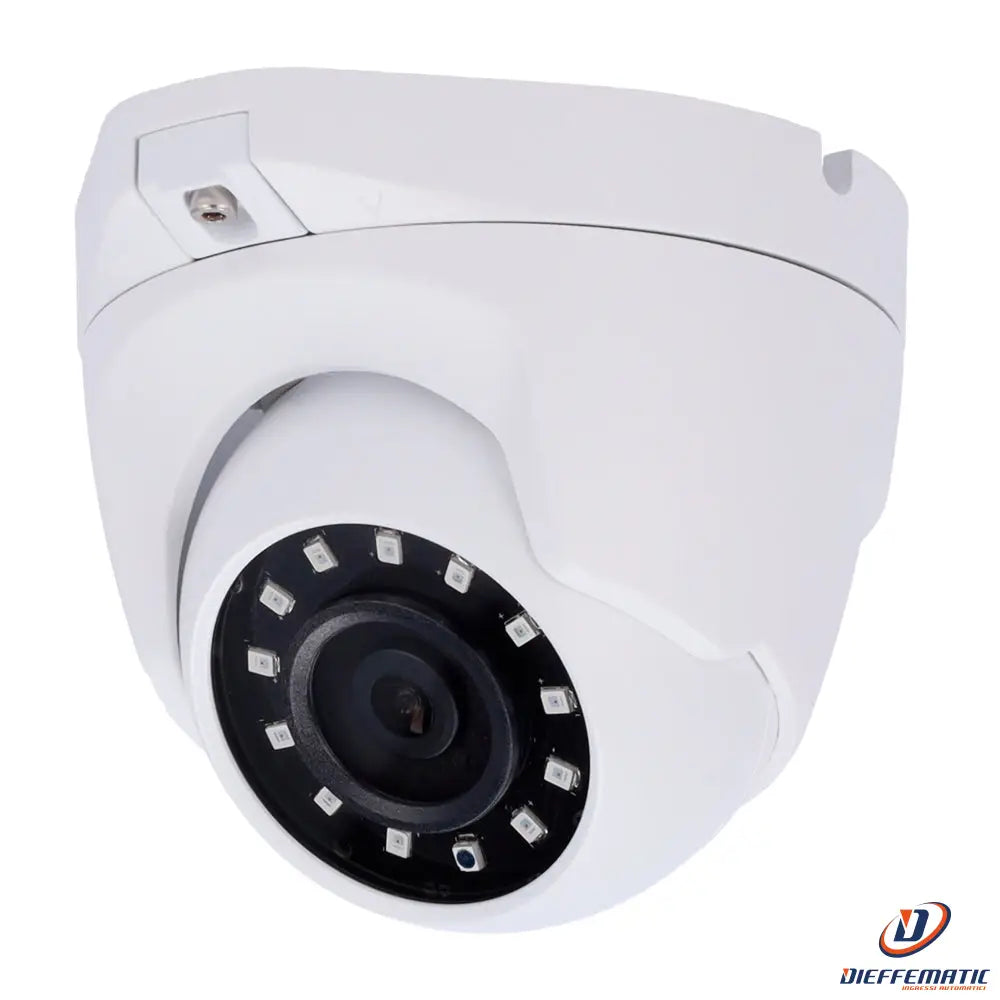

T822-2E-Wide Safire Gamma Eco Turret Camera

Safire ECO range turret camera

Model T822-2E-WIDE

SKU: T822-2E-WIDE

• Safire ECO range turret camera

• 4-in-1 output / 2 Mpx resolution (1920x1080)

• 1/2.7" CMOS

• 1.2 mm lens

• IR Matrix LED range 30 m

• Waterproof IP66


DESCRIPTION:

• HDTVI, HDCVI, AHD and analog turret camera

• ECO range

• 1/2.7" CMOS

• 2 Mp (1920x1080)

• 4-in-1 output

• 2.1 mm lens

• 0 Lux

• IR Matrix range 30 m

• 2D DNR

• IR CUT

• Waterproof IP66


SPECIFICATIONS:

Range
ECO

Image sensor
1/2.7" CMOS FH8536H

Maximum resolution
2 Mpx (1920x1080) at 30 fps

Lens
1.2 mm

Minimum illumination
0.01 Lux @ (F2.0, AGC ON)

Infrared illumination
0 Lux / IR Matrix LED (range 30 m)

Video output
HDTVI / HDCVI / AHD / CVBS

Basic functions
OSD menu

Configurable OSD functions
DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip

Alarm
Not available

Audio
Not available

Power supply
DC 12 V / 300 mA/3.6 W

Protection rating
Waterproof IP66

Operating temperature
-10° C ~ +60° C

Dimensions
70.8 (D) x 93.2 (H) x 104 (W) mm


CONTENTS:

• Safire 4-in-1 turret camera

• Mounting materials

• User manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
