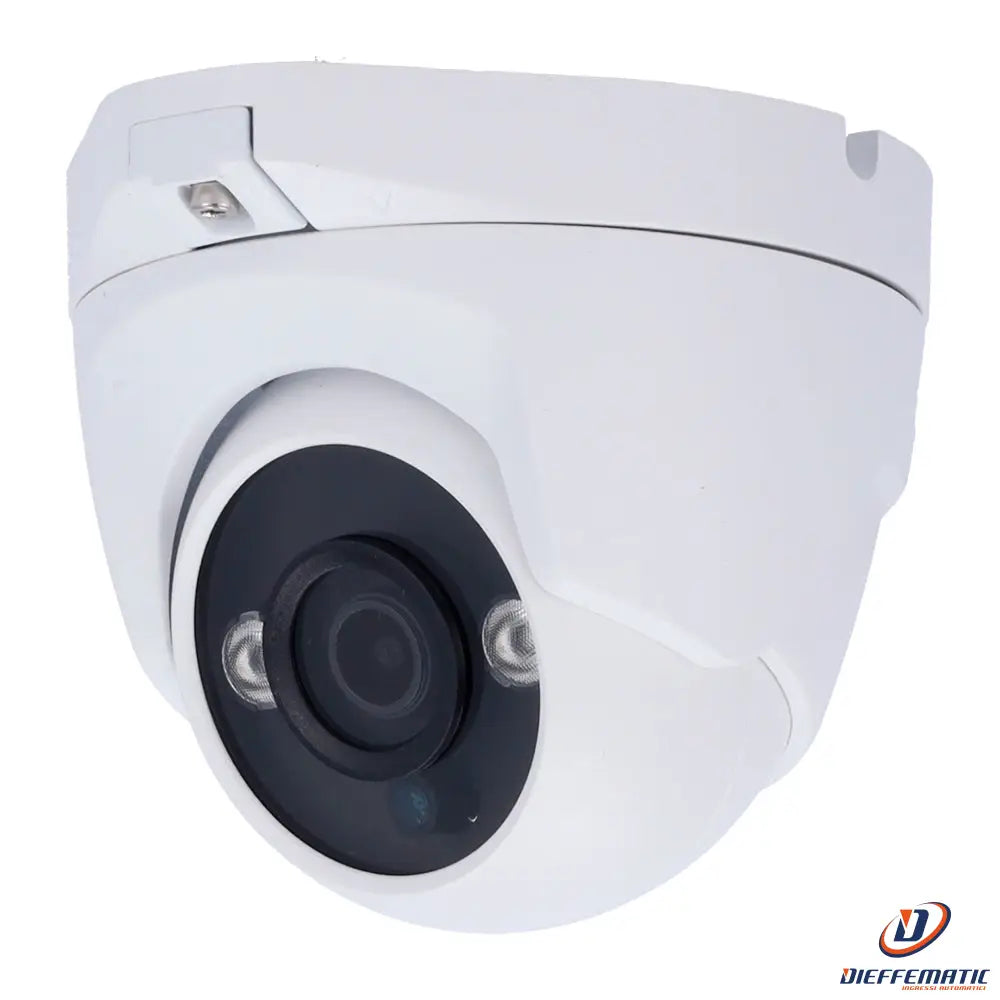

T822-2E Safire Gamma Eco Turret Camera

Safire ECO Range Turret Camera

Mod. T822-2E

SKU: T822-2E

• Safire ECO Range Turret Camera

• 4-in-1 output / 2 Mpx resolution (1920x1080)

• 1/2.7" CMOS

• 2.8 mm lens

• IR Matrix LED, range: 30 m

• Waterproof IP66


DESCRIPTION:

• Safire Turret Camera, HDTVI, HDCVI, AHD and Analog

• ECO range

• 1/2.7" CMOS

• 2 Mp (1920x1080)

• 4-in-1 output

• 2.8 mm lens

• 0 Lux

• IR Matrix range: 30 m

• 2D DNR

• IR CUT

• Waterproof IP66


SPECIFICATIONS:

Range
ECO

Optical sensor
1/2.7" CMOS FH8536H

Maximum resolution
2 Mpx (1920x1080) at 30 fps

Lens
2.8 mm

Minimum illumination
0.01 Lux @ (F2.3, AGC ON)

Infrared illumination
0 Lux / IR Matrix LED (range: 30 m)

Video output
HDTVI / HDCVI / AHD / CVBS

Basic functions
OSD menu

Configurable OSD functions
DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip

Alarm
Not available

Audio
Not available

Power supply
DC 12 V / 300 mA/3.6 W

Protection rating
Waterproof IP66

Operating temperature
-10° C ~ +60° C

Dimensions
70.8 (W) x 93.2 (H) x 104 (D) mm

Weight
290 g


CONTENTS:

• Safire 4-in-1 Turret Camera

• Mounting materials

• User instructions

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF data sheet

24-month warranty
