Shipping
Shipping in 5-10 business days
Description

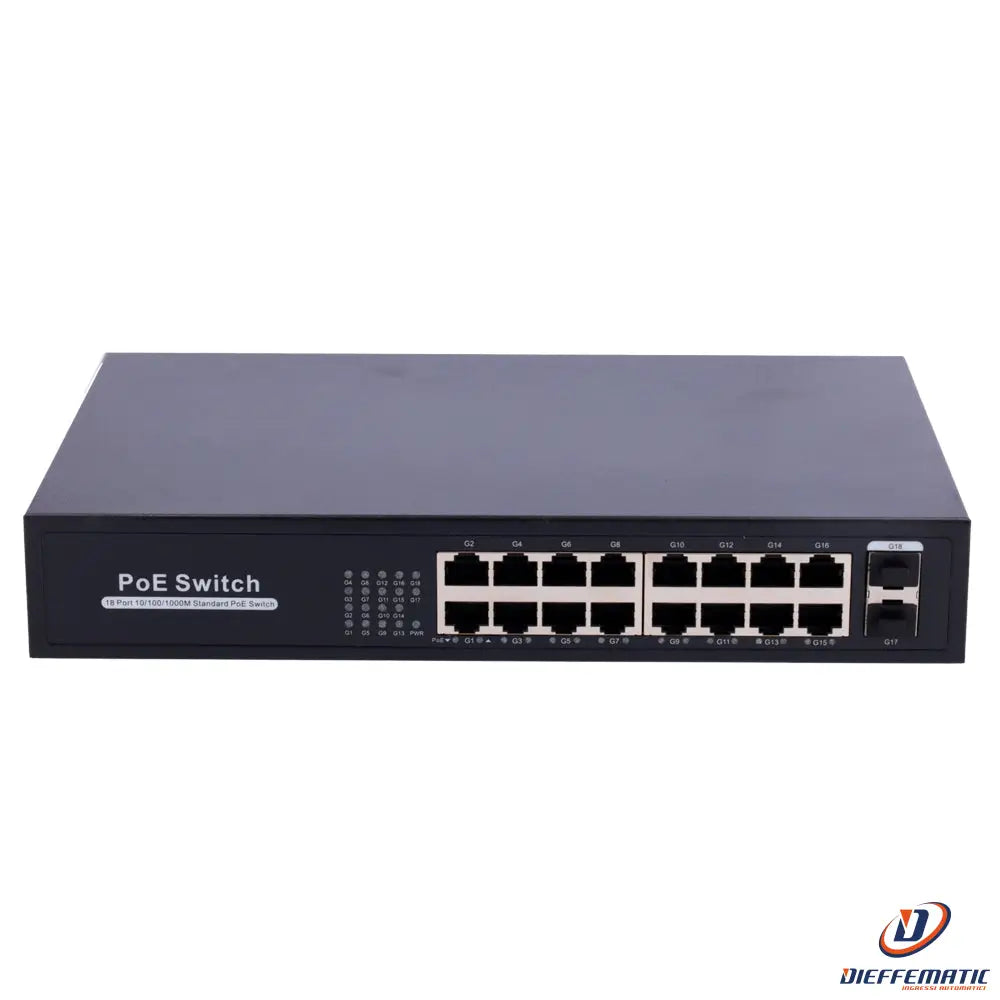

PoE Switch
Model SW1816POE-GF-250-E
SKU: SW1816POE-GF-250-E
• PoE switch
• 16 RJ45 ports + 2 SFP uplinks
• 16x 10/100/1000Mbps + 2x 10/100/1000Mbps
• 16 PoE 802.3af/at ports, up to 30W per port
• 250W total PoE power
• Rack mounting
DESCRIPTION:
• Desktop/wall/rack-mountable PoE switch
• 16 PoE+ RJ45 10/100/1000 Mbps ports + 2 10/100/1000 Mbps SFP uplink ports
• Ports 1-16 support PoE+ 802.3af/at
• Up to 30W per port
• Up to 250W total PoE power
• PoE with priority system
• Plug & Play
SPECIFICATIONS:
Interface
16 RJ45 10/100/1000Mbps ports + 2 10/100/1000Mbps SFP uplink ports
PoE Features
Ports 1-16 PoE+ 802.3af/at, up to 30W per port
Total PoE Power
Up to 250W
Priority PoE System
If the total PoE power (250W) is insufficient, the switch will prioritize power to the PoE ports with the highest priority (not configurable)
PoE Power Pins
1/2 (+), 3/6 (-)
Switching Capacity
52Gbps (Non-blocking)
Forwarding Rate
26.78Mpps
Jumbo Frame
10K
Buffer Memory
4M
MAC Table
8K
Lightning Protection
4KV
Power Supply
AC 100~240 V
Operating Temperature
-20° C - 55° C
Operating Humidity
5%~90% Non-condensing
Dimensions
270 x 181 x 44.5mm
Net/Gross Weight
<1.7kg / <2.2kg
CONTENTS:
• PoE switch
• AC cable
• User manual
• Rack mounting kit
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
