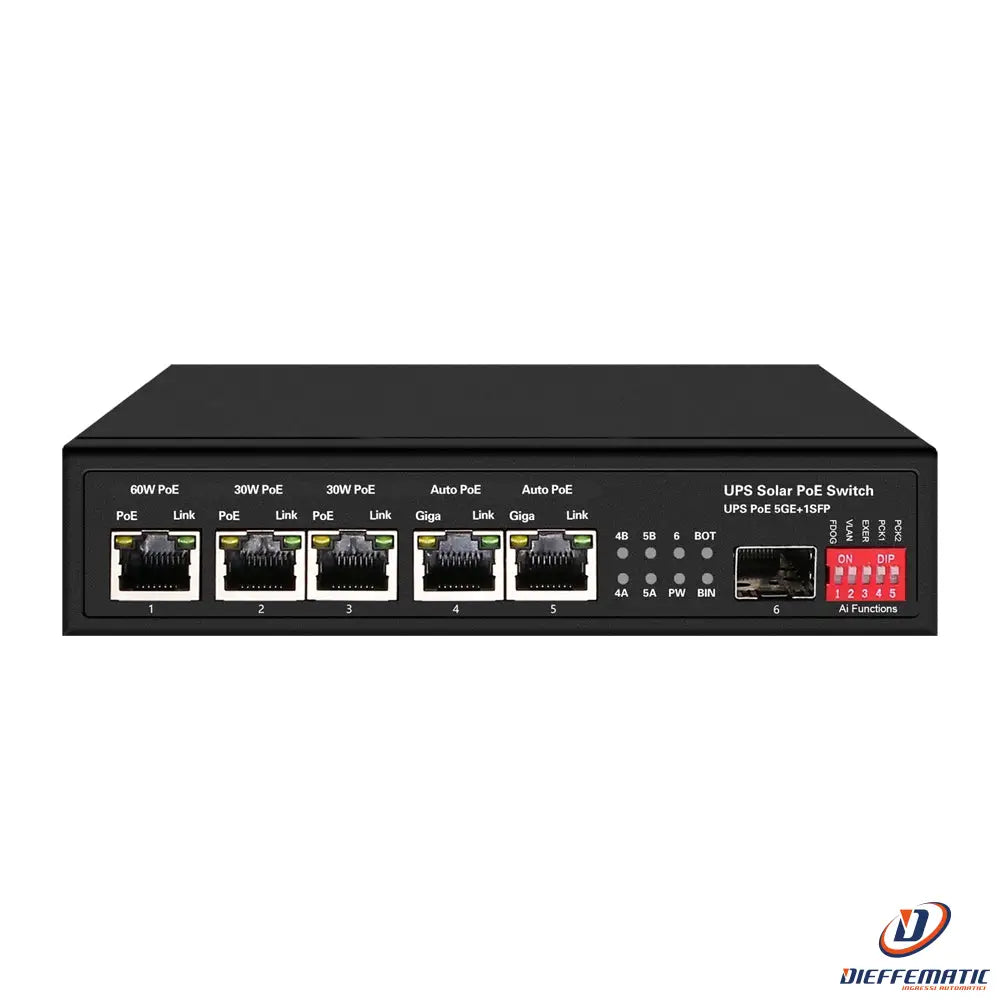

SW0605HIPOE-GF-DC-65 PoE Switch

PoE switch

Model SW0605HIPOE-GF-DC-65

SKU: SW0605HIPOE-GF-DC-65

• PoE switch

• 5 PoE ports + 1 SFP

• Port speed 10/100/1000 Mbps

• 1xHi-PoE (60W) + 2xPoE+ (30W) + 2x24/48V (25W)

• Up to 65W total PoE power

• Supports 12V/24V batteries and 400W panels


DESCRIPTION:

• Desktop switch

• 5 RJ45 ports 10/100/1000 Mbps + 1 Gigabit SFP uplink port

• 1 HiPoE port (port 1)

• 2 PoE+ ports (ports 2~3)

• 2 PoE+/24/48V Passive PoE ports (ports 4~5)- Supports up to 65W total PoE power across all ports

• Compatible with IEEE802.3af/at/bt PoE and 24/48V Passive PoE

• UPS function with controller for 12/24V 50AH battery

• Compatible with solar panels up to 400W


SPECIFICATIONS:

Interfaces
5 PoE RJ45 ports 10/100/1000 Mbps + 1 Gigabit SFP

PoE features
Port 1 Hi-PoE up to 60W 802.3bt
Ports 2-3 PoE+ up to 30W 802.3af/at
Ports 4-5 Passive PoE 24v/48V up to 25W

Battery controller
Compatible with 12 V or 24 V 50Ah 5A lead-acid and lithium batteries (battery not included)
Compatible with panels up to 400W

Charging functions
Fully automatic charging
Battery protection
Automatic battery voltage detection
Integrated automatic lithium battery activation system
PWM charging mode
Integrated low-load startup protection system

Power input
Supports 12V ?33V panel input or 12V batteries (DC 15-26V)
Supports 24V ?44V panel input or 24V batteries (DC 26-32V)

Transmission distance
10BASE-T: Cat3,4,5 UTP (?250 meters)
100BASE-TX: Cat5 or higher UTP (150 meters)
1000BASE-TX: Cat6 or higher UTP (150 meters)
1000BASE-SX: 62.5µm/50µm MMF(2m~550m)
1000BASE-LX: 62.5µm/50µm MM(2m~550m) or 10µm SMF(2m~5000m)

Bandwidth
12Gbps

Packet forwarding rate
8.64Mbps

MAC address table
2K

Buffer
2.5MB

Power supply
DC 24V / 2A

Dimensions
160 x 142 x 35 mm

Operating temperature
-20° C - 65° C

Weight
720 g

Installation
Rack or wall

Protection
3 kV 8/20 µs; IP30


CONTENTS:

• Switch

• Adapter

• User manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF data sheet

Datasheet SW0605HIPOE-GF-DC

24-month warranty
