Shipping
Shipping in 5-10 business days
Description

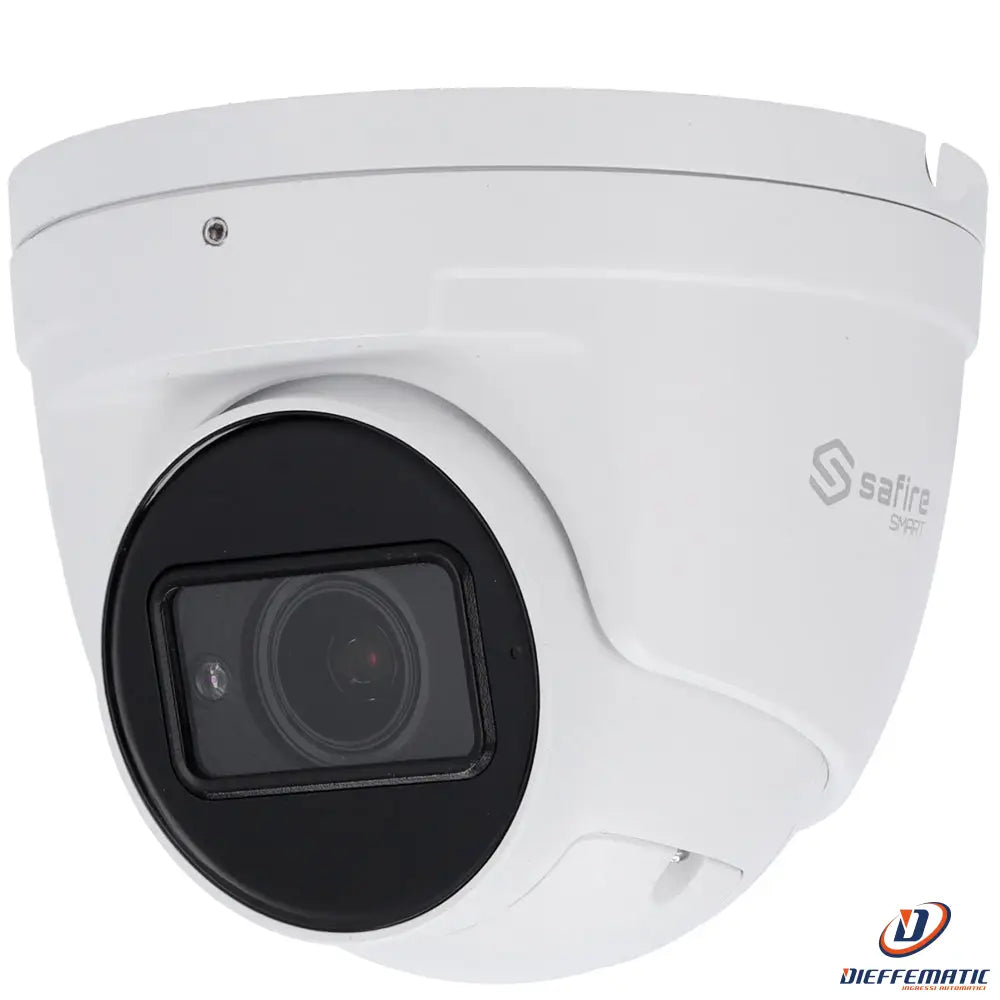

Turret camera
Model SF-T520Z-5E1
SKU: SF-T520Z-5E1
• Safire Smart
• E1 range 4-in-1 turret camera
• 5 Mpx (2560x1936), 1/2.7" CMOS
• Motorized 2.8~12 mm lens | IR range 50 m
• DWDR, HLC, BLC, AGC
• Waterproof IP67
DESCRIPTION:
• Safire Smart
• High-quality, high-performance Professional E1 range
• HDTVI, HDCVI, AHD and analog turret camera
• 1/2.7" CMOS
• 5Mpx (2560x1936)
• 4-in-1 output
• Motorized 2.8~12mm lens
• 0 Lux
• IR range 50 m
• 3D DNR
• IR CUT
• Mirror
• HLC, BLC, AGC, DWDR
• Waterproof IP67
SPECIFICATIONS:
Brand
Safire Smart
Range
High-quality, high-performance Professional E1 range
Image sensor
1/2.7" CMOS
Maximum resolution
5 Mp (2560x1936)
Resolution
5Mpx (20fps)
Lens
Motorized 2.8~12 mm (H: 90.5°~32.9°, V: 74.3°~25°, D: 103°~40.5°)
Minimum illumination
0.01 Lux @(F1.2, AGC ON)
Infrared illumination
0 Lux / IR range up to 50 m (ICR)
Day / Night
Auto / Color / BW (Black and white)
Video output
1 x BNC switchable HDTVI / HDCVI / AHD / CVBS
Video output switching
Via DVR (HDTVI by default)
Basic functions
OSD menu (remote)
Configurable OSD functions
DWDR, 3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR
Lens positioning
3 Axis
Power supply
DC 12 V / 500 mA, 6W max
Protection rating
Waterproof IP67
Operating temperature
-30° C ~ +50° C
Material
Metal body and plastic bracket
Dimensions
110 (H) x 130 (Ø) mm
Weight
650 g
CONTENTS:
• Safire Smart turret camera
• 3 wall plugs and 3 mounting screws
• Quick installation guide
• Installation template
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
