Shipping
Shipping in 5-10 business days
Description

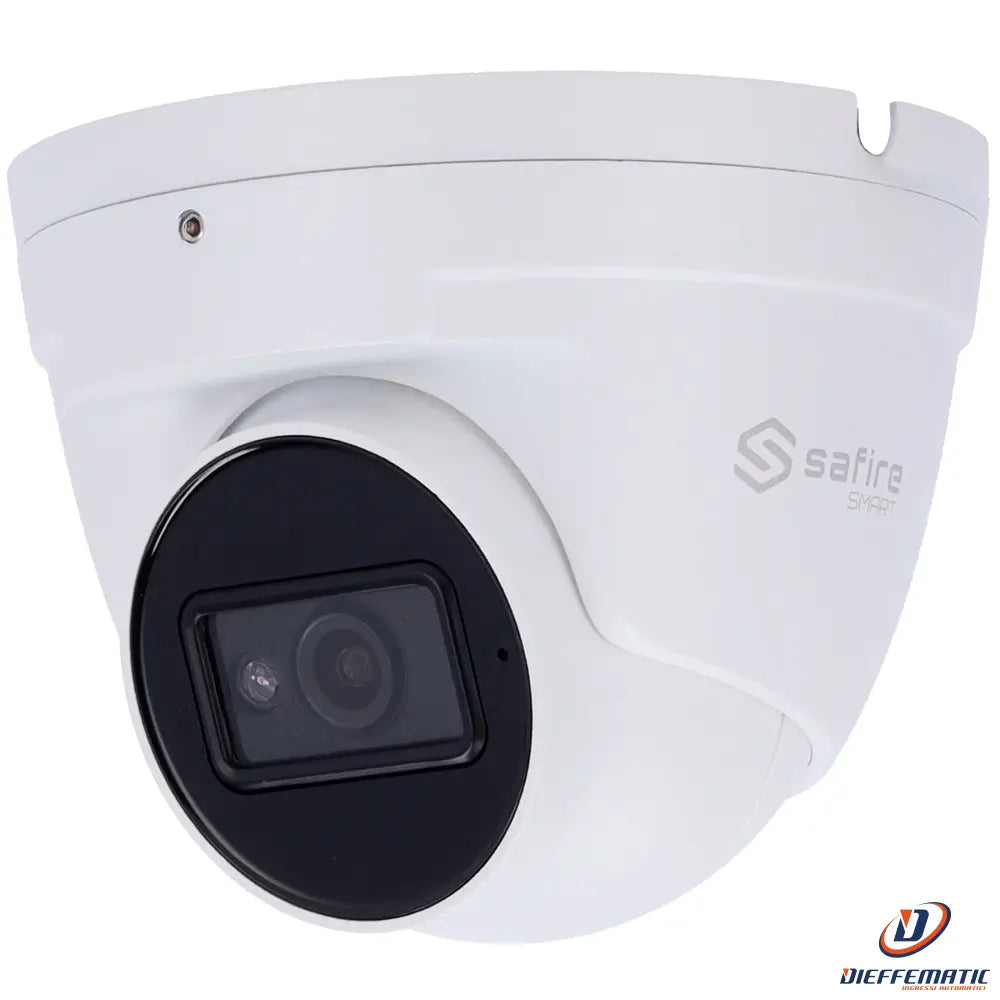

Turret camera
Model SF-T020SA-2E1
SKU: SF-T020SA-2E1
• Safire Smart
• E1 range 4-in-1 turret camera
• 2 MP (1920x1080), 1/2.8" CMOS Starlight
• 2.8 mm lens | IR range 30 m
• WDR, HLC, BLC, AGC | HDTVI audio over coaxial cable
• Waterproof IP67
DESCRIPTION:
• Safire Smart
• High-quality, high-performance E1 Professional range
• Turret camera, HDTVI, HDCVI, AHD and analog
• 1/2.8" CMOS Starlight
• 2 MP (1920x1080)
• 4-in-1 output
• 2.8 mm lens
• 0 Lux
• IR range 30 m
• 3D DNR
• IR CUT
• HLC, BLC, AGC
• WDR (120 dB)
• Audio over coaxial cable on HDTVI - Waterproof IP67
SPECIFICATIONS:
Brand
Safire Smart
Range
High-quality, high-performance E1 Professional range
Image sensor
1/2.8" CMOS Starlight
Maximum resolution
2 MP (1920x1080)
Resolution
2 MP (25 fps)
Lens
2.8 mm (H: 101°, V: 68.6°, D: 108.6°)
Minimum illumination
0.001 Lux @(F1.2, AGC ON)
Infrared illumination
0 Lux / IR range up to 30 m (ICR)
Day / Night
Auto / Color / B&W (black and white)
Audio over coaxial cable
Built-in microphone (audio over coaxial cable on HDTVI)
Video output
1 x switchable BNC HDTVI / HDCVI / AHD / CVBS
Video switching
Via DVR (HDTVI by default)
Basic functions
OSD menu (remote)
Configurable OSD functions
DWDR, 3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR
Lens positioning
3-axis
Power supply
DC 12 V / 300 mA, 4W max
Protection rating
Waterproof IP67
Operating temperature
-30° C ~ +50° C
Material
Metal body and plastic bracket
Dimensions
82.8 (L) x 94.6 (Ø) mm
Weight
390 g
CONTENTS:
• Safire Smart turret camera
• 3 wall plugs and 3 mounting screws
• Quick installation guide
• Installation template
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
