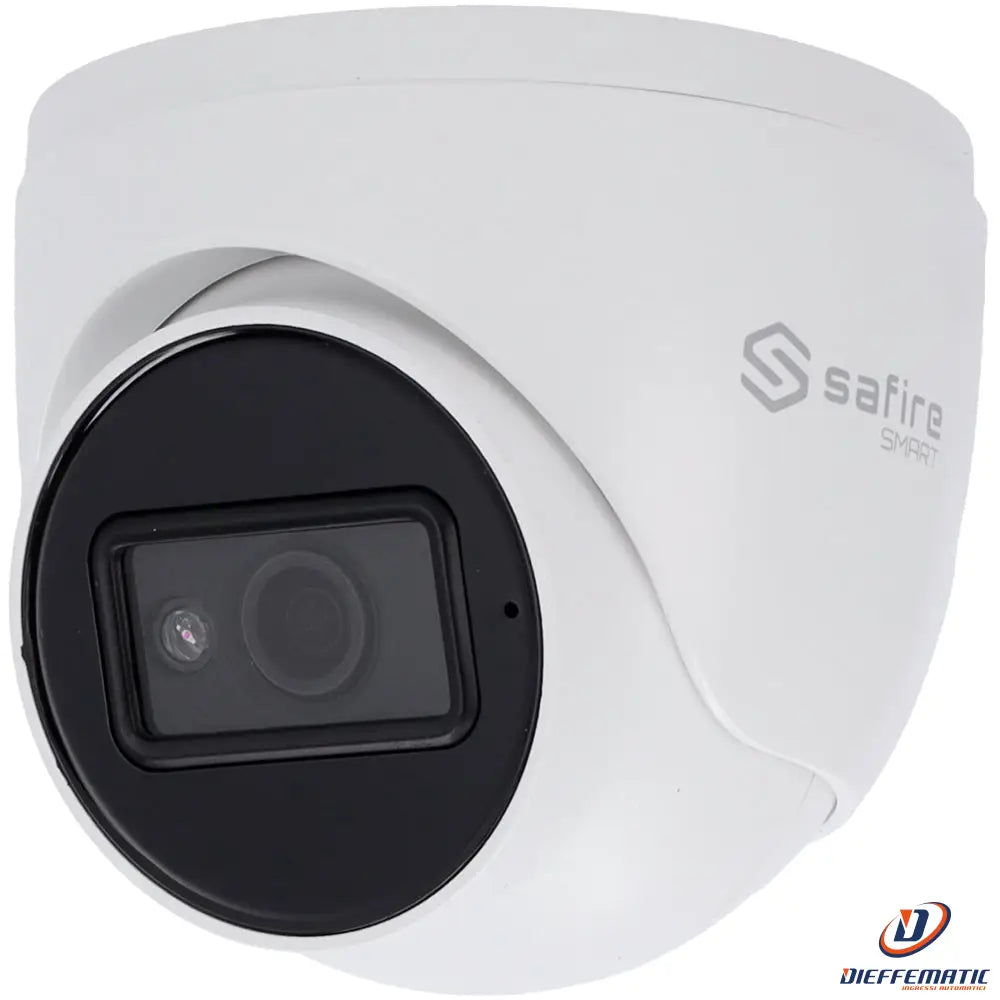

Safire Smart Sf-T020-5B1-0360 Turret camera

Turret camera

Model SF-T020-5B1-0360

SKU: SF-T020-5B1-0360

• Safire Smart

• B1 range 3-in-1 turret camera

• 5 Mpx ( (2560x1936) , 1/2.5" CMOS

• 3.6 lens | IR range 30 m

• DWDR, BLC, AGC

• Waterproof IP67


DESCRIPTION:

• Safire Smart

• B1 Economy range

• HDTVI, HDCVI, AHD turret camera

• 1/2.5" CMOS

• 5Mpx (2560x1936)

• 3-in-1 output

• 3.6 mm lens

• 0 Lux

• IR range 30 m

• 2D DNR

• IR CUT

• Mirror

• BLC, AGC, DWDR

• Waterproof IP67


SPECIFICATIONS:

Brand
Safire Smart

Range
B1 Economy

Image sensor
1/2.5" CMOS

Maximum resolution
5 Mp (2560x1936)

Resolution
5MP@20fps /4MP@30fps

Lens
3.6 mm (H: 88.6°, V: 72.4°, D: 101.3°)

Minimum illumination
0.01 Lux @(F1.2, AGC ON)

Infrared illumination
0 Lux / IR range up to 30 m (ICR)

Day / Night
Auto / Color / B&W (Black and white)

Video output
1 x switchable BNC HDTVI / HDCVI / AHD

Video output switching
Via DVR (HDTVI by default)

Basic functions
OSD menu (remote)

Configurable OSD functions
DWDR, 2D/3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR

Lens positioning
3 Axis

Power supply
DC 12 V / 250 mA, 3W max

Protection rating
Waterproof IP67

Operating temperature
-30° C ~ +50° C

Material
Metal body and plastic mount

Dimensions
82.8 (L) x 94.6 (Ø) mm

Weight
390 g


CONTENTS:

• Safire Smart turret camera

• 3 wall plugs and 3 mounting screws

• Quick installation guide

• Installation template

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF manual

24-month warranty
