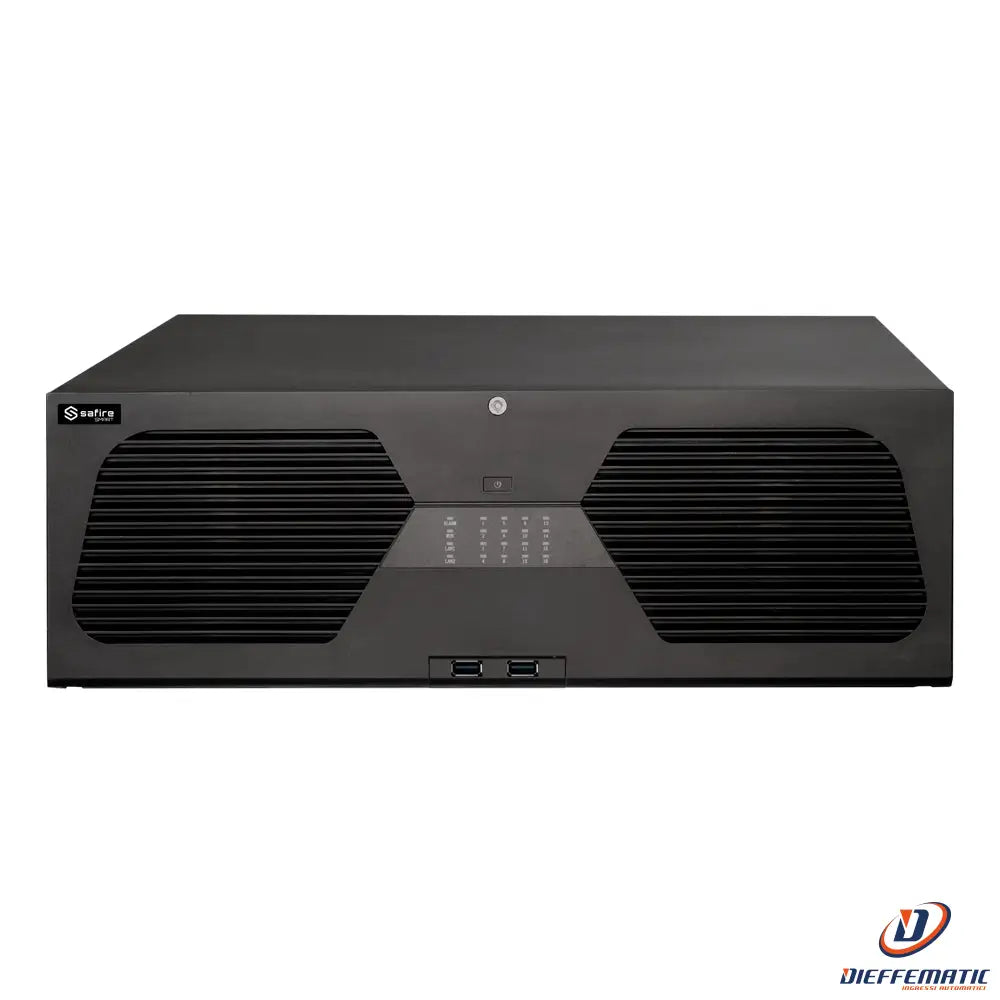

Safire Smart Sf-Nvr816128A-A3 NVR Recorder A3

A3 NVR recorder

Model SF-NVR816128A-A3

SKU: SF-NVR816128A-A3

• Safire Smart

• NVR for IP cameras, A3 range

• 128-channel video / H.265S compression / 8 HDDs

• Resolution up to 16 Mpx / 768 Mbps bandwidth

• HDMI up to 8K and VGA / fisheye dewarping

• Facial recognition, video metadata


DESCRIPTION:

• Safire Smart

• A3 range

• NVR for IP cameras

• 128 channels

• Supported bandwidth: 768 Mbps

• Maximum resolution: 16 megapixels

• H.265S/H.265+/H.265/H.264+ compression

• 4 4K HDMI outputs and 1 VGA output

• POS function

Smart searches for people, vehicles and two-wheelers

• Facial recognition

• Face tracking on map

• Dewarping for fisheye cameras

• Activation/deactivation via the app

• Dual-stream IP access

• RCA audio

• Alarms

• Space for 8 HDDs

• Web interface, CMS and smartphone

• ONVIF compatible

• NDAA certified


SPECIFICATIONS:

Brand
Safire Smart

Range
A3

IP camera inputs
128 IP channels

Compatible IP cameras
Safire Smart (native protocol), ONVIF

Two-way audio
1 input / 1 RCA output

Main stream recording
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/
960H/D1/CIF

Decoding capacity
1CH 16Mpx @ 30FPS
4CH 12Mpx @ 30FPS

Video compression format
H.265S / H.265+ / H.265 / H.264+ / H.264

Audio compression
G.711(U/A)

Total bandwidth
768 Mbps input / 768 Mbps output

Video output
1 8K HDMI, 2 4K HDMI, 1 Full HD HDMI / 1 VGA

Display resolution
HDMI1: 7680x4320@60/30, 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768
HDMI2: 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768
HDMI3: 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768
HDMI4: 1920x1080, 1280x1024, 1024x768
VGA: 1920x1080, 1280x1024, 1024x768
*HDMI 1 and VGA output the same video signal
** When 8K resolution is enabled on HDMI 1, HDMI2 is disabled

Multifunction
Pentaplex: Live view, recording, playback, backup and remote access

Multi-screen
Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 / 64 (Live view)
Auxiliary output 1: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 (Live view)
Auxiliary output 2: 1 / 4 / 6 / 8 / 9 / 13 / 16 (Live view)
Auxiliary output 3: 1 / 4 / 6 / 8 / 9 / 13 / 16 (Live view)
Maximum 132 (64 + 36 + 16 + 16)

Recording method
Manual, scheduled, motion detection, intelligent events, alarm input, POS

POS function
Yes

Perimeter protection
Safire Smart 4I1 or 8I2 cameras must be used
Artificial intelligence based on the classification of people, vehicles, and two-wheeled vehicles:
- Area intrusion
- Line crossing
- Area entry
- Area exit
Detailed searches for intelligent events

Facial recognition
Face detection with Safire Smart 4I1 or 8I2 cameras, up to 64CH (all channels)
Face detection by the NVR itself using any camera, up to 4CH
Facial recognition on up to 16CH
Processing up to 18 images per second
32 libraries and up to 10,000 face images
Image search via video recorder, app, and PC software
Face tracking on map
Statistical information on face results by day, week, month, or a custom period

Video metadata
With Safire Smart 4I1 or 8I2 cameras, up to 64CH (all channels)
Using the NVR itself with any camera, up to 8CH
People and vehicle attribute identification
For people: up to 13 characteristics can be extracted (glasses, clothing color, etc.)
For vehicles: up to 5 characteristics can be extracted (color, type, etc.)

License plate recognition
Yes (Safire Smart license plate recognition camera required)

Dewarping
Supports fisheye camera dewarping

Alarms
16 Inputs / 4 Outputs

External backup
USB memory / USB HDD / USB CD-RW / USB DVR-RW

Internal storage
8x 3.5" SATA3.0 HDDs up to 10 TB (not included)

RAID
RAID0, RAID1, RAID5, RAID6 and RAID10

Communication
1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/100/1000M (Ethernet) / RS485

Remote access
Web browser, Safire Smart Smartphone App and Safire Smart VMS PC Software

Power supply
ATX200 ? 50W (Without Hard Disk)

Operating temperature
-10°C ~50°C, Humidity 10~90%

Dimensions / Weight
90 (H) x 445 (W) x 436 (D) mm / 1.18 Kg


CONTENTS:

Safire Smart A3 NVR video recorder

• Mouse

• Ethernet cable

• Quick start guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

Quick Start Guide NVR Safire Smart

NVR Safire Smart User Manual EN

Safire Smart VMS User Manual EN

24-month warranty
