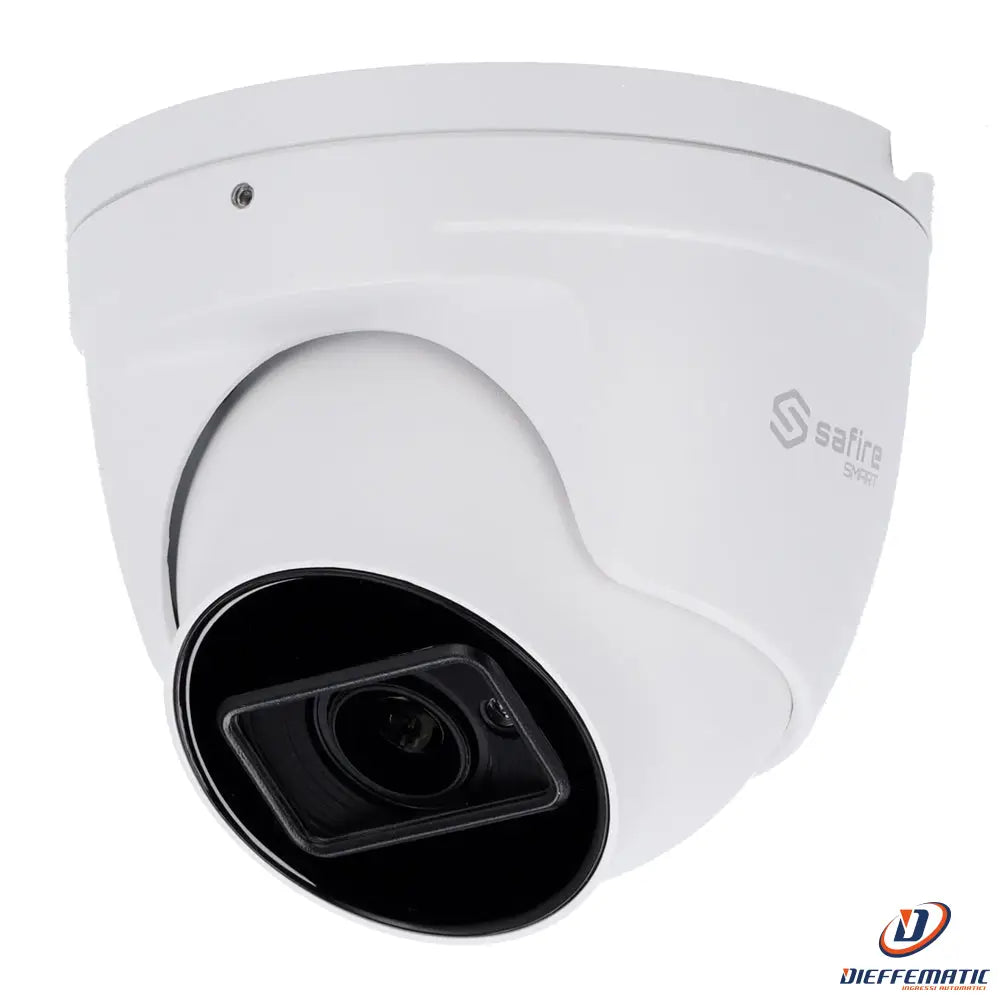

Safire Smart Sf-Ipt520Za-8I1 I1 IP Turret Camera

I1 IP turret camera

Mod. SF-IPT520ZA-8I1

SKU: SF-IPT520ZA-8I1

• Safire Smart

• I1 range Advanced AI IP turret camera

• 8 Megapixel resolution (3840x2160)

• Motorized 2.8-12 mm lens | Microphone | IR 50m

• Advanced AI: people, vehicles and two-wheeled vehicles

• Waterproof IP67 | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• I1 range

• IP turret camera

• 1/2.8" Progressive Scan CMOS

• 8 Megapixels (3840x2160)

• Motorized 2.8-12 mm lens

• 0 Lux

• IR range 50 m

• H.265+ / H.264+ compression

• WDR

• 3DNR

• Built-in microphone

• Audio

• TrueSense: Person and vehicle classification

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• Waterproof IP67


SPECIFICATIONS:

Brand
Safire Smart

Range
I1

Image sensor
1/2.8" Progressive Scan CMOS

Maximum resolution
8 Megapixels (3840x2160)

Minimum illumination
Color: 0.02 Lux @(F1.6, AGC ON), 0 Lux with IR

IR range
50 m

Day/night
Removable ICR mechanical filter

Electronic shutter
1/2~1/100.000 s

Main stream frame rate
20 FPS (8Mpx)
25 FPS (6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P)

Sub-stream frame rate
25 FPS (720P, D1, 480x240)

Third stream frame rate
25 FPS (720P, D1, CIF, 480x240)

Compression
H.265+ / H.265 / H.264+ / H.264

Bitrate
64 Kbps ~ 12 Mbps

Lens
Motorized 2.8-12 mm

Field of view (FOV)
H: 99-34°, V: 53-18°, D: 115-36°

DORI
W: 86 m (D), 34 m (O), 17 m (R), 9 m (I)
T: 273 m (D), 109 m (O), 55 m (R), 27 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart features
Advanced AI based on person and vehicle classification for: area intrusion, line crossing, area entry, area exit
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
Built-in microphone / 1 input

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal memory
microSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

Power supply
DC 12 V / 666 mA / 8 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
111.50 (Ø) x 99.6 (H) mm

Weight
661 g


CONTENTS:

• Safire Smart I1 IP turret camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

8MP I1 User Manual EN

Safire Smart VMS User Manual EN

24-month warranty
