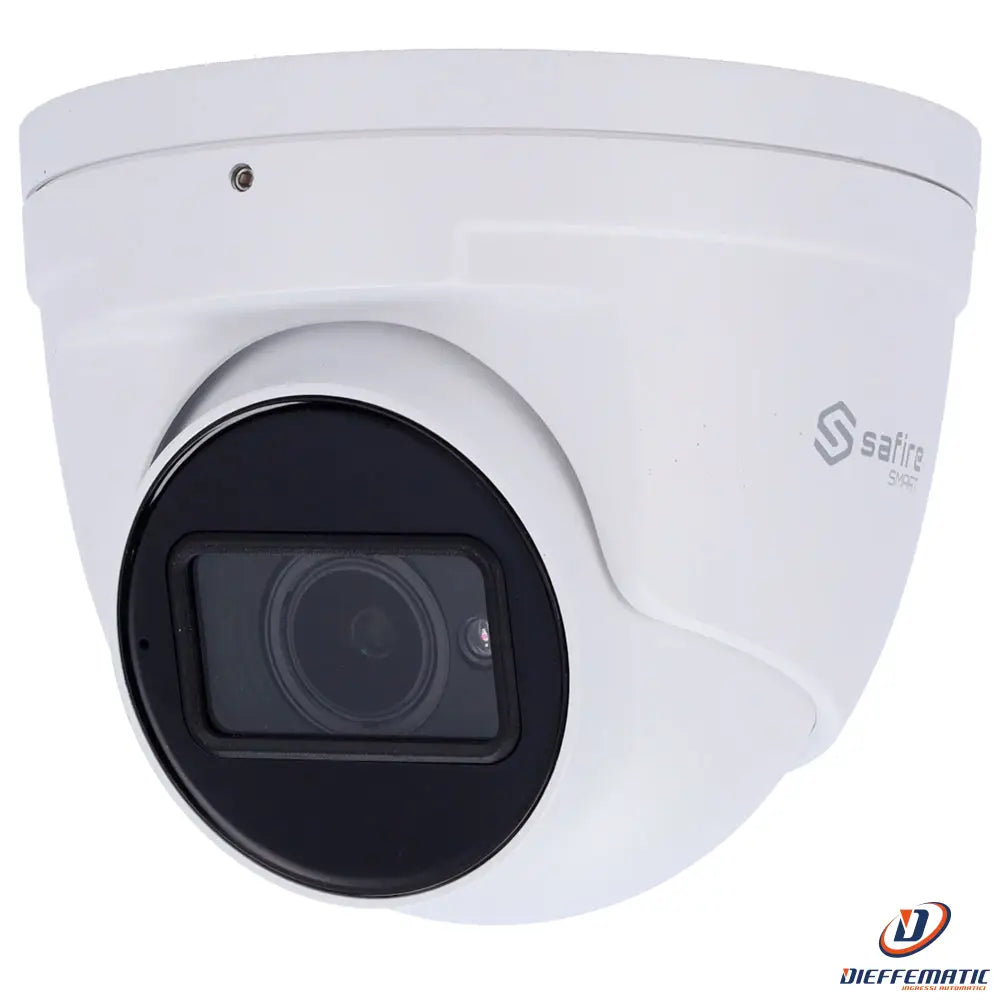

Safire Smart Sf-Ipt520Za-6I1 I1 IP Dome Camera

I1 IP Dome Camera

Model SF-IPT520ZA-6I1

SKU: SF-IPT520ZA-6I1

• Safire Smart

• I2 range Advanced AI IP Dome Camera

• 6 Megapixel resolution (3296x1856)

• 2.8~12 mm motorized lens | Audio | IR 50 m

• Advanced AI: Video metadata and Face Detection

• IP67 waterproof | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• I2 Range with Advanced Artificial Intelligence

• IP Turret Camera

• 1/2.8" Progressive Scan CMOS

• 6 Megapixels (3296x1856)

• 2.8~12 mm lens

• 0 Lux

• IR range 50 m

• H.265+ / H.264+ compression

• WDR

• 3DNR

• Built-in microphone

• Built-in microphone

• Audio

• Advanced Artificial Intelligence: people, motor vehicle and non-motor vehicle detection

• Face capture

• Video metadata

• People, motor vehicle and non-motor vehicle counting

• WEB, CMS, smartphone and NVR interface

• MicroSD card up to 256GB

• ONVIF compatible

• PoE (IEEE802.3af)

• IP67 waterproof


SPECIFICATIONS:

Brand
Safire Smart

Range
I2

Image sensor
1/2.8" Progressive Scan CMOS

Maximum resolution
6 Megapixels (3296x1856)

Minimum illumination
Color: 0.015 Lux @(F1.4, AGC ON), 0 Lux with IR

IR range
50 m

Day/Night
Removable ICR mechanical filter

Electronic Shutter
1/2~1/100.000 s

Main Stream Frame Rate
30 FPS (6Mpx, 5Mpx, 4Mpx, 1080P)

Sub Stream Frame Rate
30 FPS (720P, D1, CIF, VGA, 480x240)

Third Stream Frame Rate
30 FPS (D1, 480x240, CIF)

Compression
H.265+ / H.265 / H.264+ / H.264

Bitrate
64 Kbps ~ 12Mbps

Lens
Motorized 2.8-12 mm

Field of View (FOV)
H: 108-36°, V: 57-20°, D: 129-42°

DORI
W: 66 m (D), 27 m (O), 13 m (R), 7 m (I)
T: 204 m (D), 82 m (O), 41 m (R), 20 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
Advanced AI: Classification of people, vehicles, and non-motorized vehicles for: area intrusion, line crossing, area entry, area exit
Face detection and capture
People, vehicles, and non-motorized vehicles counting
Video metadata (attribute extraction):
- Person: up to 13 attributes (clothing color, hat, backpack, ...)
- Vehicle: up to 5 attributes (color, type, make, model, and direction)
- Non-motorized vehicle: Up to 1 attribute
Other intelligent events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
1 Input / 1 Output / Built-in microphone

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Alarms
1 Input / 1 Relay

Internal storage
MicroSD card up to 256GB

EIS (Electronic Image Stabilization)
Yes

Remote access
Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software

Interoperability
ONVIF

Power supply
DC 12 V / 10W max. / PoE IEEE802.3af

Protection rating
IP67 waterproof

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
111.5 (Ø) x 99.6 (H) mm

Weight
660 g


CONTENTS:

• Safire Smart I1 IP Dome Camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Manual SERIES I EN

Safire Smart VMS User Manual EN
