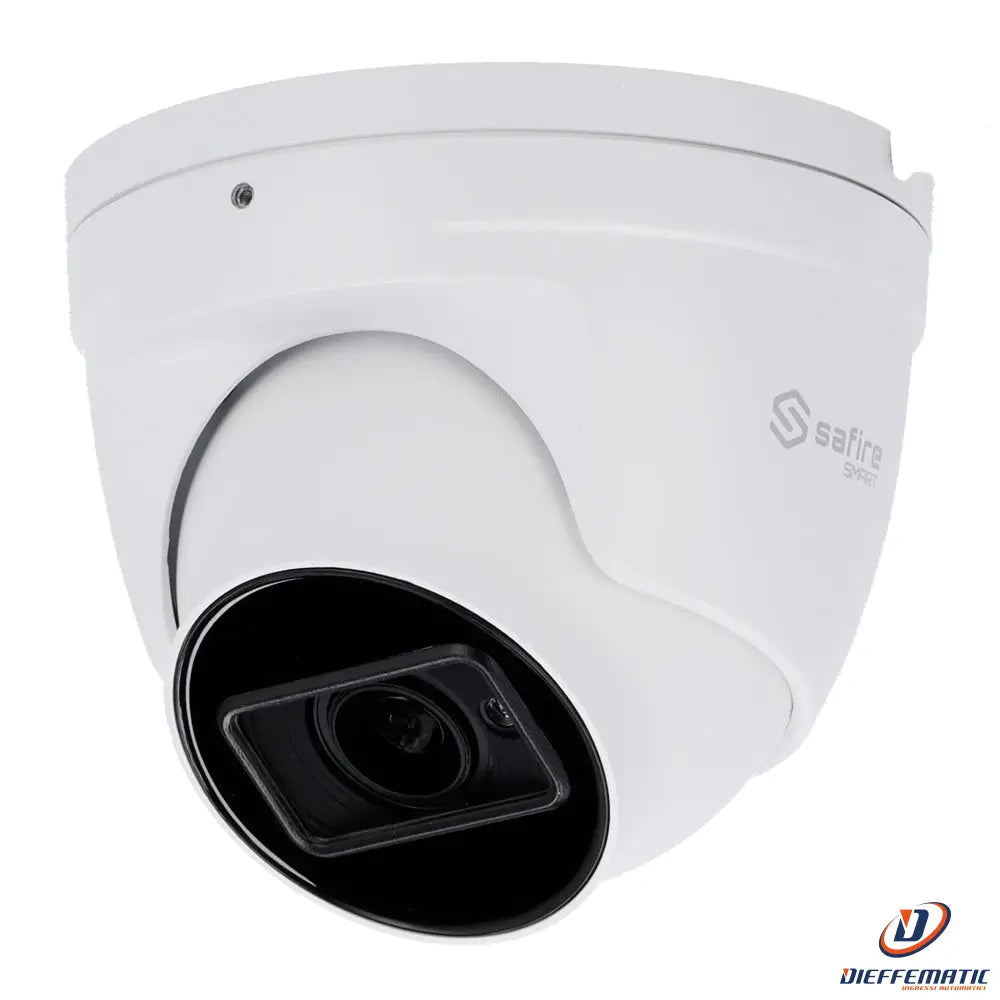

Safire Smart Sf-Ipt520Za-4I1 I1 IP Turret Camera

I1 IP turret camera

Model SF-IPT520ZA-4I1

SKU: SF-IPT520ZA-4I1

• Safire Smart

• I1 range IP turret camera with Advanced AI

• 4 Megapixel resolution (2592x1520)

• 2.8~12 mm motorized lens | Microphone | 50 m IR

• Advanced AI: Perimeter, Face, Counting, Metadata

• IP67 waterproof | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• I1 range with Advanced Artificial Intelligence

• IP turret camera

• 1/3" Progressive Scan CMOS

• 4 Megapixel (2592x1520)

• 2.8~12 mm motorized lens

• 0 Lux

• IR range 50 m

• H.265+ / H.264+ compression

• WDR

• 3DNR

• Built-in microphone

• Audio

• Advanced Artificial Intelligence: Classification of people, vehicles and non-motorized vehicles

• Face detection and capture

• People and vehicle counting

• Identification of people and vehicle characteristics

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• IP67 waterproof


SPECIFICATIONS:

Brand
Safire Smart

Range
I1

Image sensor
1/3" Progressive Scan CMOS

Maximum resolution
4 Megapixel (2592x1520)

Minimum illumination
Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR

IR range
50 m

Day/night
Removable mechanical ICR filter

Electronic Shutter
1/2~1/100.000 s

Main Stream Frame Rate
25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P)
HFR mode: 60 FPS (1080P / 720P)

Sub Stream Frame Rate
25 FPS (720P, D1, CIF, 480x240)

Third Stream Frame Rate
25 FPS (D1, 480x240, CIF)

Compression
H.265+ / H.265 / H.264+ / H.264

Bitrate
64 Kbps ~ 8 Mbps

Lens
2.8~12 mm motorized lens

Field of View (FOV)
H: 100-28.9°, V: 54.5-16.7°, D: 104.8-33.1°

DORI
W: 59 m (D), 24 m (O), 12 m (R), 6 m (I)
T: 206 m (D), 82 m (O), 41 m (R), 21 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
Advanced AI based on the classification of people, vehicles and non-motorized vehicles for: intrusion detection, line crossing, area entry, area exit
Face detection and capture
People, vehicle and non-motorized vehicle counting
Attribute identification:
- Person: up to 13 characteristics
- Vehicle: up to 5 characteristics
- Non-motorized vehicle: up to 1 characteristic
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
Built-in microphone, 1 input

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal storage
microSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

Power supply
DC 12 V / 792qwsaa mA / 9.5 W max. / PoE IEEE802.3af

Protection rating
IP67 waterproof

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
131 (Ø) x 99.60 (H) mm

Weight
670 g


CONTENTS:

• Safire Smart I1 IP Turret Camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Manual 4MP I1 EN

Safire Smart VMS User Manual EN

24-month warranty
