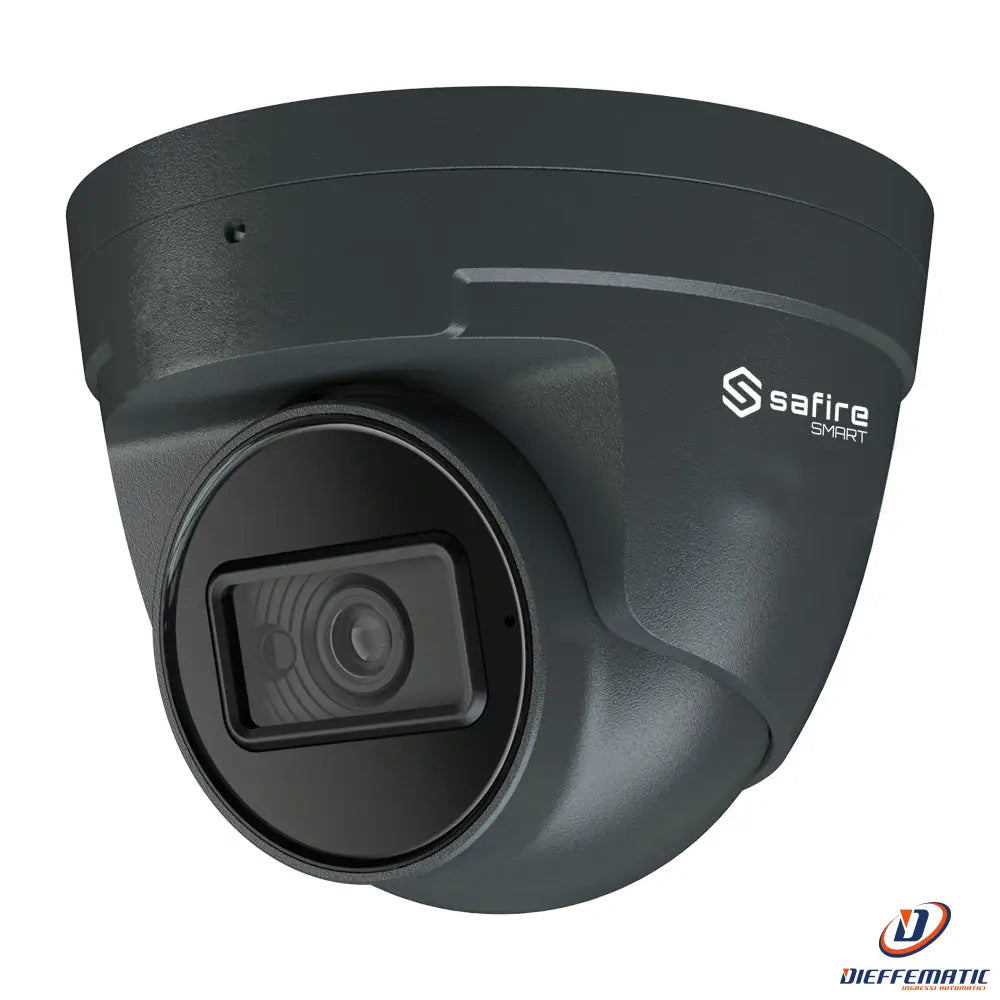

Safire Smart SF-IPT520ZA-4E1-Grey E1 IP Turret Camera

E1 IP Turret Camera

Mod. SF-IPT520ZA-4E1-GREY

SKU: SF-IPT520ZA-4E1-GREY

• Safire Smart

• E1 range IP Turret Camera with Artificial Intelligence

• 4 Megapixel resolution (2566x1440)

• Motorized 2.8~12mm lens | Microphone | IR 50m

• AI: Classification of people and vehicles

• Waterproof IP67 | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• E1 range

• IP Turret Camera

• 1/3" Progressive Scan CMOS

• 4 Megapixel (2560x1440)

• Motorized 2.8~12mm lens

• 0 Lux

• IR range 50 m

• H.265 / H.264 compression

• WDR

• 3DNR

• Built-in microphone

• Audio

• Artificial intelligence: Classification of people and vehicles

• WEB, CMS, Smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• Waterproof IP67

• Gray color


SPECIFICATIONS:

Brand
Safire Smart

Range
E1

Image sensor
1/3" Progressive Scan CMOS

Maximum resolution
4 Megapixel (2560x1440)

Minimum illumination
Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR

IR range
50 m

Day/night
Removable ICR mechanical filter

Electronic shutter
1/2~1/100.000 s

Main stream frame rate
25 FPS (4Mpx, 3Mpx, 1080P, 720P)

Sub-stream frame rate
25 FPS (720P, D1, CIF)

Third stream frame rate
25 FPS (D1, 480x240, CIF)

Compression
H.265 / H.264

Bitrate
64 Kbps ~ 8 Mbps

Lens
Motorized 2.8~12 mm

Field of view (FOV)
H: 92-31°, V: 48-17.2°, D: 112-35.6°

DORI
W: 64 m (D), 25 m (O), 13 m (R), 6 m (I)
T: 188 m (D), 75 m (O), 38 m (R), 19 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
Artificial intelligence based on the classification of people and vehicles for: area intrusion, line crossing, area entry, area exit
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
Built-in microphone, 1 input

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal storage
MicroSD card up to 256GB

Remote access
Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software

Interoperability
ONVIF

Power supply
DC 12 V / 666 mA / 8 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
111.5 (Ø) x 99.6 (H) mm

Weight
650 g


CONTENTS:

Safire Smart E1 IP Turret Camera

• Installation materials

• Quick installation guide

CLICK ON THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Manual 4MP E1 EN

Safire Smart VMS User Manual EN

24-month warranty
