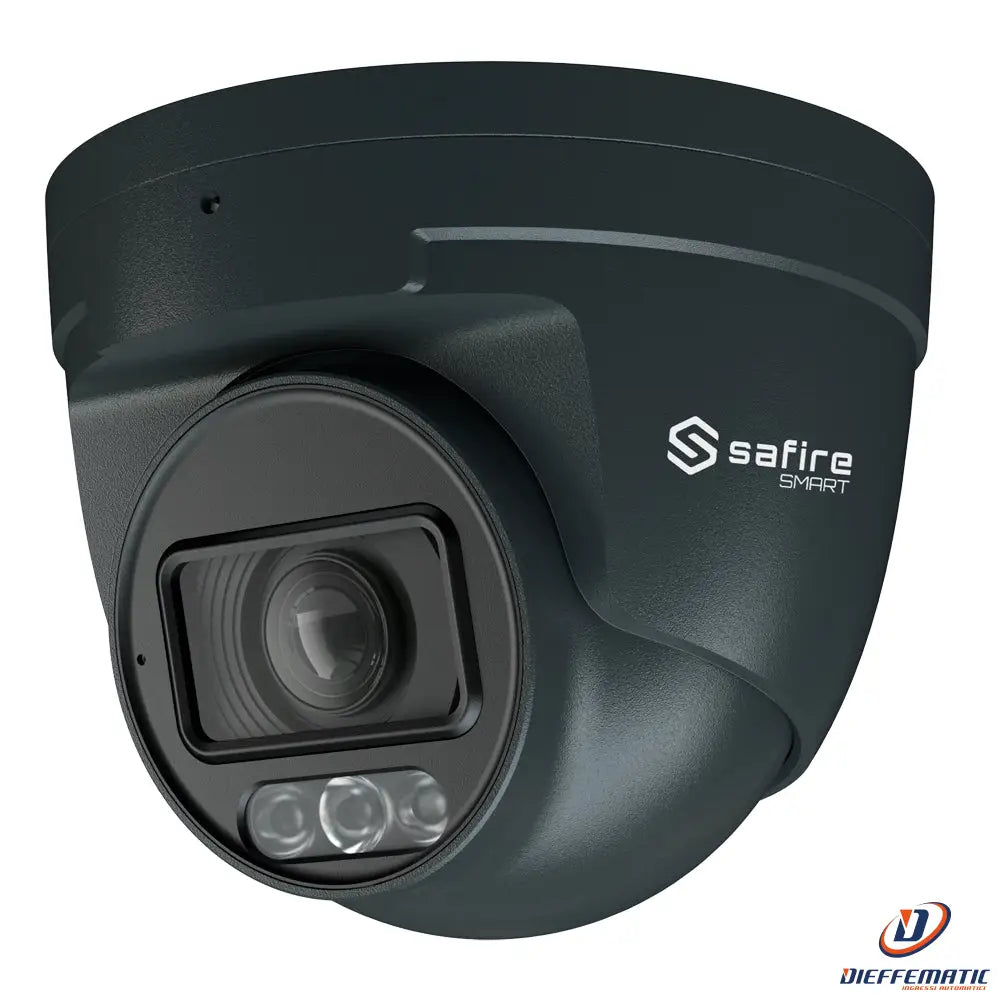

Safire Smart SF-IPT511ZA-4E1-DL-Grey E1 IP Turret Camera

E1 IP Turret Camera

Model SF-IPT511ZA-4E1-DL-GREY

SKU: SF-IPT511ZA-4E1-DL-GREY

• Safire Smart

• E1 AI range IP Turret Camera

• 4 Megapixel resolution (2566x1440)

• 2.8~12mm motorized lens | IR&LED up to 50m

• AI: Person and vehicle classification

• Waterproof IP67 | PoE (IEEE802.3af) | P2P


DESCRIPTION:

• Safire Smart

• E1 Range with Artificial Intelligence

• IP Turret Camera

• 1/3" Progressive Scan CMOS

• 4 Megapixel (2560x1440)

• 2.8~12mm motorized lens

• 0 Lux

• Night Color, 24/7 color image

• Dual illumination: IR range 50 m and white LED range 40m

• H.265+/H.265/H.264+/H.264 compression

• WDR

• 3DNR

• Built-in microphone

• Audio

• Artificial Intelligence: Person and vehicle classification

• SMD

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• P2P

• PoE (IEEE802.3af)

• Waterproof IP67


SPECIFICATIONS:

Brand
Safire Smart

Range
E1

Optical sensor
1/3" Progressive Scan CMOS

Maximum resolution
4 Megapixel (2560x1440)

Minimum illumination
Color: 0.004 Lux @(F1.0, AGC ON)

Illumination Range
Dual illumination:
IR up to 50m
White LED up to 40m

Day/night
Removable mechanical ICR filter

Electronic Shutter
1/2~1/100.000 s

Main Stream Frame Rate
25 FPS (4Mpx, 3Mpx, 1080P, 720P)

Sub Stream Frame Rate
25 FPS (720P, D1, VGA, CIF)

Third Stream Frame Rate
25 FPS (D1, 480x240, CIF)

Compression
H.265+ / H.265 / H.264+ / H.264

Bit rate
64 Kbps ~ 6 Mbps

Lens
Motorized 2.8~12 mm

Field of view (FOV)
H: 92-31°, V: 48-17°, D: 112-36°

DORI
W: 64 m (D), 26 m (O), 13 m (R), 6 m (I)
T: 182 m (D), 75 m (O), 38 m (R), 19 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, mirror function, privacy mask, ROI

Motion detection and SMD
Supports both functions

Smart functions
Artificial intelligence based on person and vehicle classification for: area intrusion, line crossing, area entry, area exit
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
Built-in microphone, 1 input

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal storage
MicroSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

P2P
Yes

Power supply
DC 12 V / 9 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
111.6 (Ø) x 99.6 (H) mm

Weight
660 g


CONTENTS:

Safire Smart E1 IP turret camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Safire Smart VMS User Manual EN

24-month warranty
