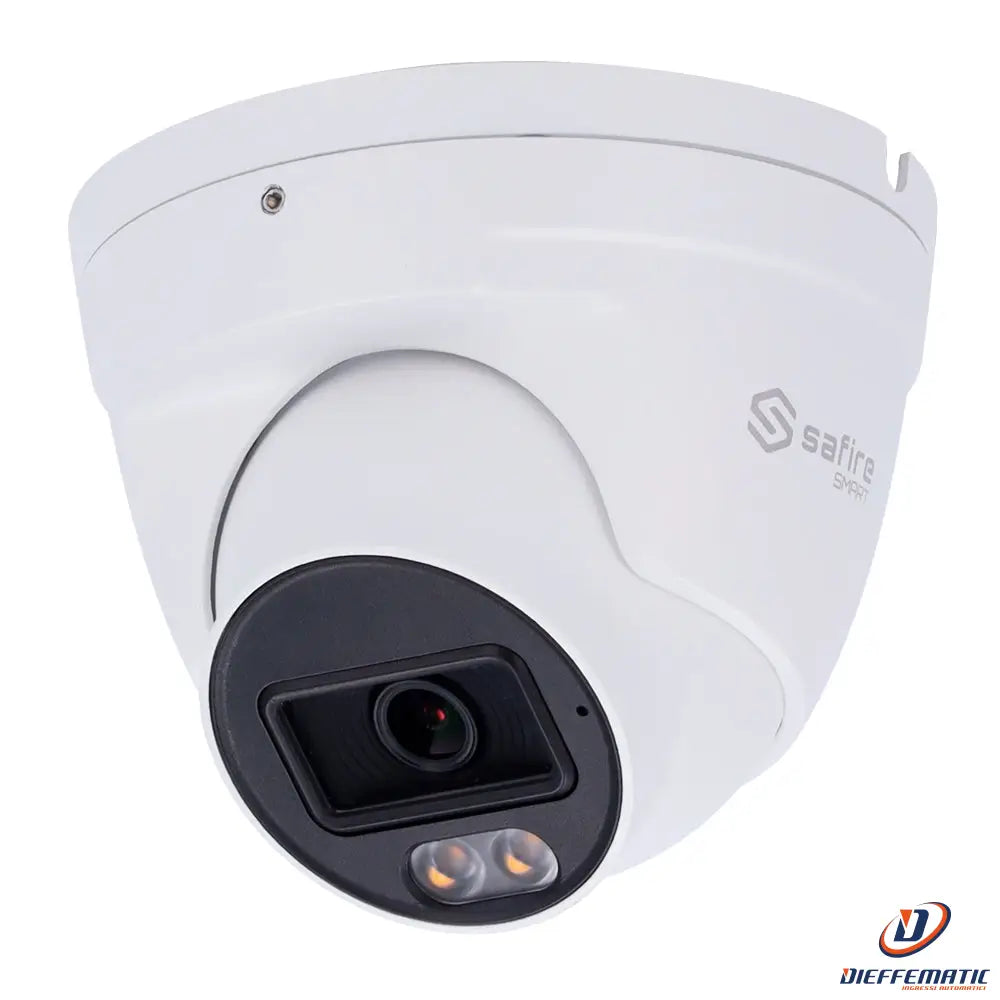

Safire Smart Sf-Ipt011A-6E1-Dl E1 IP Bullet Camera

E1 IP bullet camera

Mod. SF-IPT011A-6E1-DL

SKU: SF-IPT011A-6E1-DL

• Safire Smart

• E1 range IP turret camera with Artificial Intelligence

• 6-megapixel resolution (3200x1800)

• 2.8 mm lens | Audio IN | IR and white light, 30 m

• AI: Classification of people and vehicles

• Waterproof IP67 | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• E1 range with Artificial Intelligence

• IP turret camera

• 1/2.5" Progressive Scan CMOS

• 6 megapixels (3200x1800)

• 2.8 mm lens

• 0 Lux

• Dual IR and white light, 30 m range

• H.265+ / H.265 / H.264+ / H.264 compression

• WDR

• 3DNR

• Audio input

• Built-in microphone

• MicroSD card

• Artificial Intelligence: Classification of people and vehicles

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• Waterproof IP67


SPECIFICATIONS:

Brand
Safire Smart

Range
E1

Image sensor
1/2.5" Progressive Scan CMOS

Maximum resolution
6 megapixels (3200x1800)

Minimum illumination
Color: 0.008 Lux @(F1.6, AGC ON), 0 Lux with IR

IR and white light range
30 m

Day/night
Removable mechanical ICR filter

Electronic shutter
1/2~1/100.000 s

Main stream frame rate
20 FPS (6Mpx)
30 FPS (4Mpx, 1080P)

Sub stream frame rate
25 FPS (720P, D1, CIF)

Third stream frame rate
25 FPS (D1, 480x240, CIF)

Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG

Bit rate
64 Kbps ~ 8 Mbps

Lens
2.8 mm

Field of view (FOV)
H: 104°, V: 55°, D: 128°

DORI
69 m (D), 28 m (O), 14 m (R), 7 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, mirror function, privacy mask, ROI

Motion detection
Yes

Smart functions
AI-based classification of people and vehicles for: area intrusion, line crossing, area entry, area exit
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
1 input / built-in microphone

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal storage
MicroSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

Power supply
DC 12 V / 6.5 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal and plastic

Operating temperature
-30° C ~ +60° C

Dimensions
Ø 118.5 x 93.7 (H) mm

Weight
450 g


CONTENTS:

• Safire Smart E1 IP bullet camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Manual 4&6MP E1 DL EN

Safire Smart VMS User Manual EN

24-month warranty
