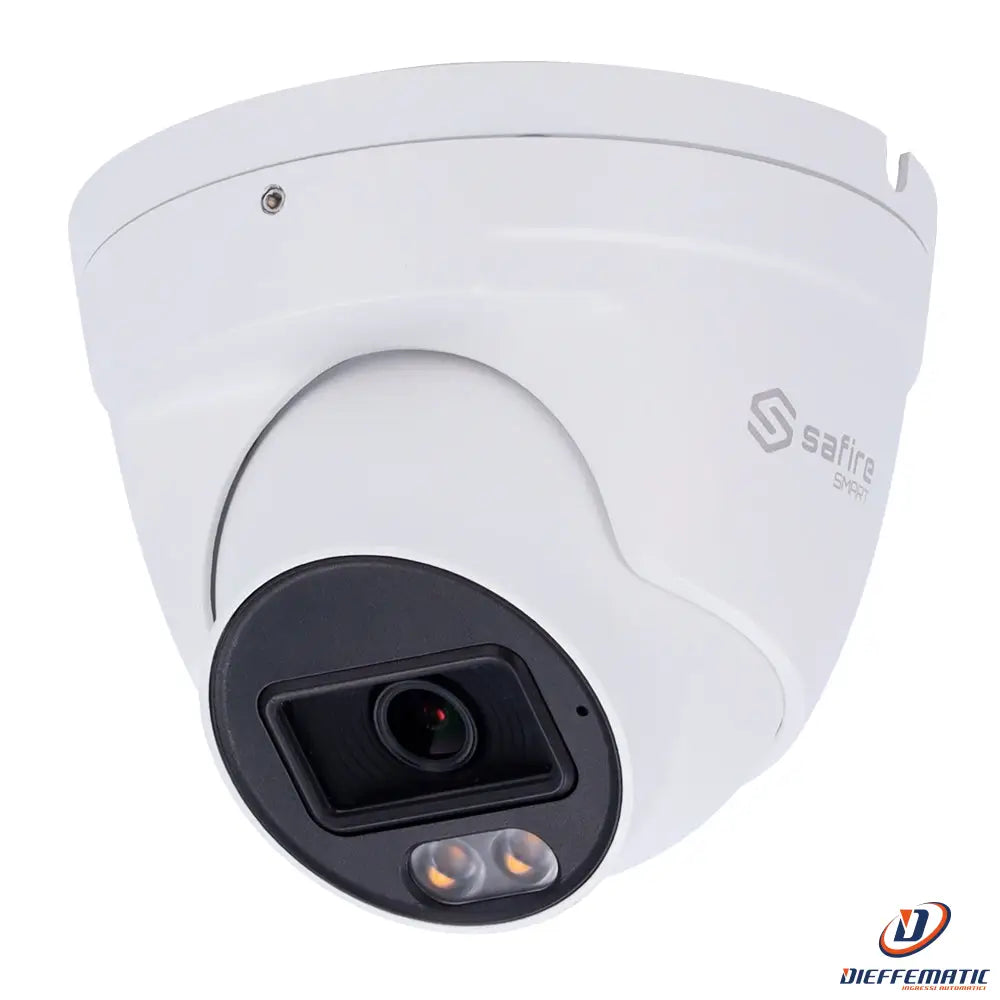

Safire Smart Sf-Ipt010A-8E1-Dl E1 IP Turret Camera

E1 IP turret camera

Mod. SF-IPT010A-8E1-DL

SKU: SF-IPT010A-8E1-DL

• Safire Smart

• E1 range IP turret camera with Artificial Intelligence

• 8 Megapixel resolution (3840x2160)

• 2.8 mm lens | Audio IN | IR and White Light 50 m

• AI: Person and vehicle classification

• IP67 waterproof | PoE (IEEE802.3af) | P2P


DESCRIPTION:

• Safire Smart

• E1 range with Artificial Intelligence

• IP turret camera

• 1/2.8" Progressive Scan CMOS

• 8 Megapixel (3840x2160)

• 2.8 mm lens

• 0 Lux

• Dual IR and White Light, range 50 m

• H.265+ / H.265 / H.264+ / H.264 compression

• WDR

• 3DNR

• Audio input

• Built-in microphone

• MicroSD card

• Artificial Intelligence: Person and vehicle classification

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• IP67 waterproof

• P2P


SPECIFICATIONS:

Brand
Safire Smart

Range
E1

Optical sensor
1/2.8" Progressive Scan CMOS

Maximum resolution
8 Megapixel (3840x2160)

Minimum illumination
Color: 0.02 Lux @(F1.6, AGC ON), 0 Lux with IR

IR and White Light Range
White LEDs up to 30 m
IR LEDs up to 50 m

Day/night
Removable ICR mechanical filter

Electronic Shutter
1/2~1/100.000 s

Main Stream Frame Rate
20 FPS (8Mpx)
30 FPS (6Mpx, 4Mpx, 2K, 1080P)

Sub Stream Frame Rate
25 FPS (720P, D1, VGA, 640x360, CIF, 480x240)

Third Stream Frame Rate
25 FPS (720P, D1, 640x360, CIF)

Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG

Bitrate
64 Kbps ~ 12 Mbps

Lens
2.8 mm

Field of view (FOV)
H: 106°, V: 57°, D: 124°

DORI
79 m (D), 32 m (O), 16 m (R), 8 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy mask, ROI

Motion detection
Yes

Smart functions
Artificial intelligence based on the classification of people and vehicles for: area intrusion, line crossing, area entry, area exit
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
1 input / Built-in microphone

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal storage
microSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

P2P
Yes

Power supply
DC 12 V / 12 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
Ø 94.6x 82.8 mm

Weight
450 g


CONTENTS:

Safire Smart E1 IP turret camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Safire Smart VMS User Manual EN

24-month warranty
