Description

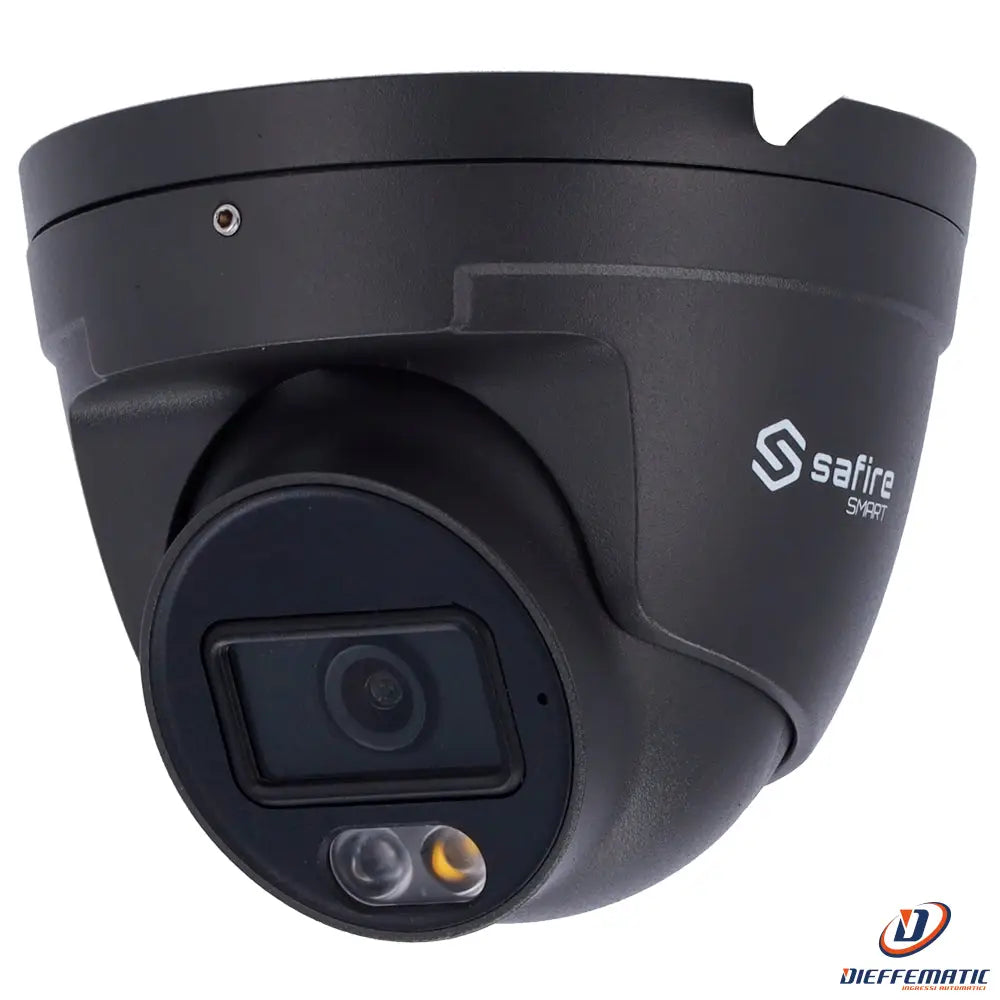

B1 IP Turret Camera
Mod. SF-IPT010A-2B1-DL-GREY
SKU: SF-IPT010A-2B1-DL-GREY
• Safire Smart
• B1 range IP Turret Camera with dual light
• 1/3" Progressive Scan CMOS
• 2 Megapixel resolution (1920x1080)
• 2.8 mm lens | IR & LED up to 20m
• IP67 waterproof | PoE (IEEE802.3af)
DESCRIPTION:
• Safire Smart
• B1 Range with Artificial Intelligence
• IP Turret Camera
• 1/3" Progressive Scan CMOS
• 2 Megapixel (1920x1080)
• 2.8 mm lens
• 0 Lux
• Dual illumination: IR range 20 m and white LED range 20m
• H.265 / H.264 compression
• WDR
• 3DNR
• Built-in microphone
• Audio
• WEB, CMS, Smartphone and NVR interface
• ONVIF compatible
• PoE (IEEE802.3af)
• IP67 waterproof
• Gray color
SPECIFICATIONS:
Brand
Safire Smart
Range
B1 Night Color Economy
Optical sensor
1/3" Progressive Scan CMOS
Maximum resolution
2 Megapixel (1920x1080)
Minimum illumination
Color: 0.003 Lux @(F1.0, AGC ON)
Night Color, 24/7 color image
Illumination Range
Dual illumination:
IR up to 20m
White LED up to 20m
Auto / Manual
* Automatic: When the camera detects a person, it switches from black-and-white mode to color mode, activating the white light
Day/night
Removable mechanical ICR filter
Electronic Shutter
1/2~1/100.000 s
Main Stream Frame Rate
25 FPS (1080P, 720P)
Sub Stream Frame Rate
25 FPS (720P, D1, CIF)
Third Stream Frame Rate
25 FPS (D1, 480x240, CIF)
Compression
H.265 / H.264
Bitrate
64 Kbps ~ 8 Mbps
Lens
Fixed 2.8 mm
Field of view (FOV)
H: 95°, V: 55°, D: 109°
DORI
41 m (D), 17 m (O), 8 m (R), 4 m (I)
Image enhancements
DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror (Mirror function)
SMD (Smart Motion Detection)
Smart Motion Detection: Supports person-based motion detection
Smart functions
Line crossing and area intrusion based on person detection
Smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)
Audio
Built-in microphone, 1 input
Audio compression
G711A / U
Network interface
Ethernet 10 / 100M BaseT
Internal memory
Not available
Remote access
Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software
Interoperability
ONVIF
Power supply
DC 12 V / 410 mA / 5W max. / PoE IEEE802.3af
Protection rating
Waterproof IP67
Operating temperature
-20° C ~ +55° C
Dimensions
84.8 (H) x 113.8 (Ø) mm
Weight
300 g
CONTENTS:
Safire Smart B1 IP Turret Camera
• Installation Materials
• Quick Installation Guide
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF Datasheet
2MP B1 User Manual IT
2MP B1 User Manual EN
Safire Smart VMS User Manual EN
24-month warranty
