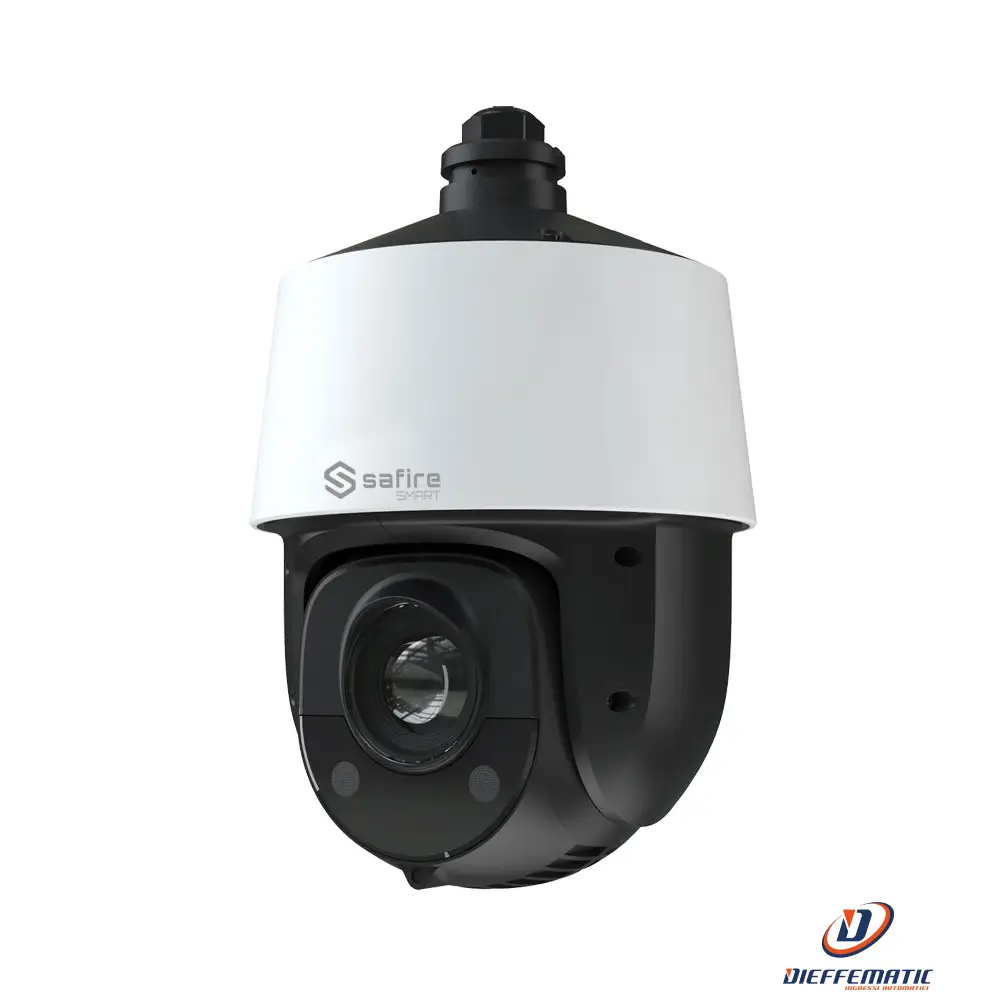

Safire Smart Sf-Ipsd4015It-2E1 E1 IP PTZ camera

E1 IP PTZ camera

Model SF-IPSD4015IT-2E1

SKU: SF-IPSD4015IT-2E1

• Safire Smart


• E1 range IP PTZ camera with Artificial Intelligence

• 2 Megapixel resolution (1920x1080)

• 15X optical zoom | 200m IR | 120 dB WDR

• Auto-tracking of people and vehicles

• IP66 waterproof | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• E1 range with Artificial Intelligence

• IP PTZ camera

• 1/2.8" Progressive Scan CMOS

• 2 Megapixels (1920X1080)

• 15X optical zoom

• 5-75 mm lens

• 0 Lux

• IR range 200 m

• 120 dB WDR

• H.265 / H.264 compression

• WDR

• 3DNR

• Artificial intelligence for classifying people and vehicles

• Intelligent auto-tracking, monitoring of people and vehicles

• WEB, CMS, Smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• IP66 waterproof

• Bracket included


SPECIFICATIONS:

Brand
Safire Smart

Range
E1

Optical sensor
1/2.8" Progressive Scan CMOS

Resolution
2 Megapixels (1920x1080)

Minimum illumination
Colour: 0.002 Lux @(F1.6, AGC ON), 0 Lux with IR

IR LED
200m (850nm)

Compression
H.265+/ H.265 / H.264+/ H.264

Optical zoom
15X

Digital zoom
16X

Lens
5 - 75 mm

FOV
H: 54° - 4° / V: 32° - 2.3° / D: 64.5° - 4.6°

DORI
W: 73 m (D), 29 m (O), 15 m (R), 7 m (I)
T: 883 m (D), 350 m (O), 177 m (R), 88 m (I)

Electronic shutter
1/1s~1/10,000s

Day / Night
Removable mechanical ICR filter

Image enhancements
BLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI

WDR
120 dB

Advanced functions
Artificial intelligence based on person and vehicle classification for: area intrusion, line crossing, area entry, area exit
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Intelligent auto-tracking
Intelligent person and vehicle tracking

Pan/Tilt range
Horizontal: 360°, Vertical: -10°~90° auto-flip

Manual speed
Horizontal: 0.1° ~ 80° /s, Vertical: 0.1° ~80° /s

Speed between presets
Horizontal: 80° /s, Vertical: 80° /s

Preset positions
360 presets, 8 tours, 4 patrols

Internal storage
MicroSD card, Max 256 GB

Audio
Not available

Alarms
Not available

PTZ control
Via network access

Network interface
Ethernet 10 / 100M BaseT

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF, PSIA, CGI

Power supply
DC 12 V / 1A, PoE IEEE802.3af (Max. 12W)

Operating temperature
-30° C ~ +65° C

Protection rating
IP66 / 6000V surge protection

Dimensions (without bracket)
268 mm (H) x 173 (Ø) mm

Weight (without bracket)
2000 g


CONTENTS:

Safire Smart E1 IP PTZ Camera

• Installation materials

• Wall bracket

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

PTZ Camera User Manual IT

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

User Manual PTZ IPC EN

Safire Smart VMS User Manual EN

24-month warranty
