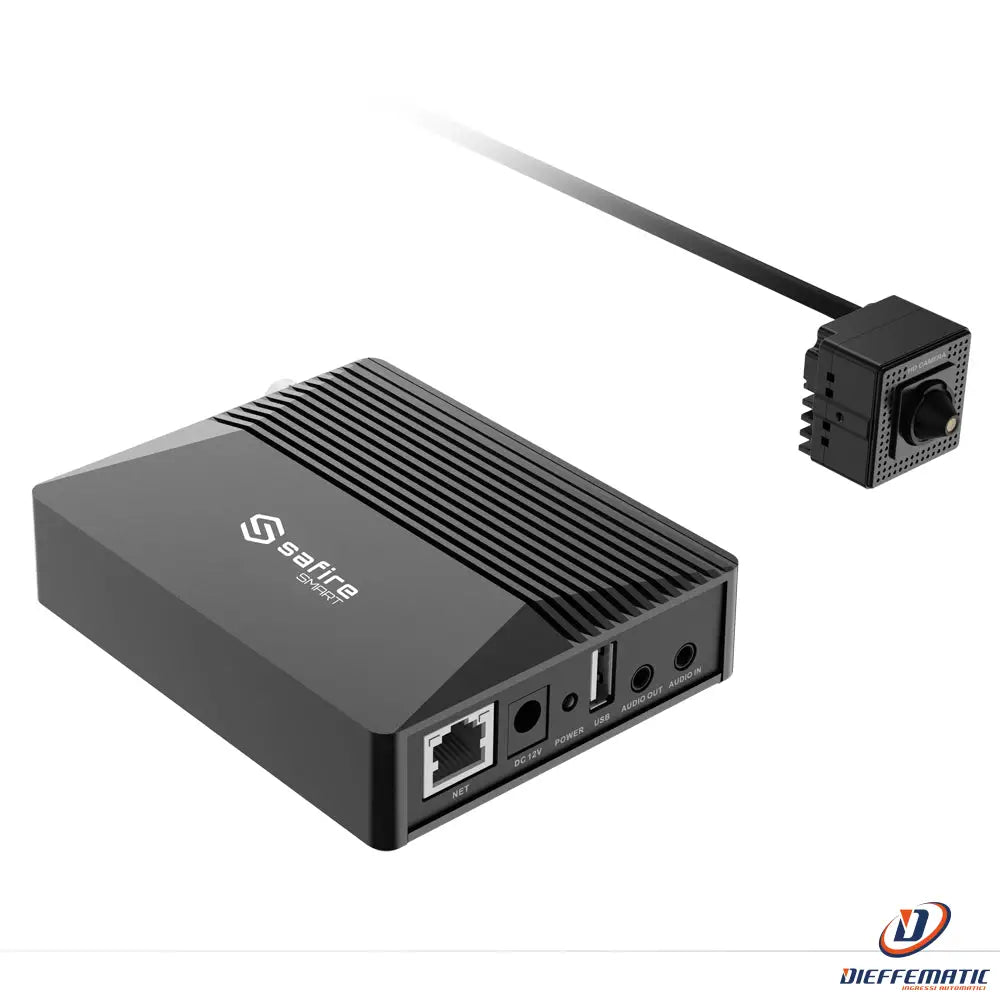

I1 IP pinhole camera
Model SF-IPPHOLE025A-2I1
SKU: SF-IPPHOLE025A-2I1
• Safire Smart
• Advanced AI I1 range IP pinhole camera
• 2 Megapixel resolution (1920x1080)
• 2.8 mm lens | Audio & Alarms
• Advanced AI: Perimeter, Face, Counting, Metadata
• PoE (IEEE802.3af)
DESCRIPTION:
• Safire Smart
• I1 range with advanced artificial intelligence
• Mini IP pinhole camera
• 1/2.8" Progressive Scan CMOS
• 2 Megapixel (1920x1080)
• 2.8 mm lens
• 0 Lux
• H.265+ / H.264+ compression
• WDR 120dB
• 3DNR
• Audio
• Alarms
• Advanced artificial intelligence: detection of people, vehicles and non-motorized vehicles
• Face capture
• Heat map
• WEB, CMS, smartphone and NVR interface
• ONVIF compatible
• PoE (IEEE802.3af)
SPECIFICATIONS:
Brand
Safire Smart
Range
I1
Image sensor
1/2.8" Progressive Scan CMOS
Maximum resolution
2 Megapixel (1920x1080)
Minimum illumination
Color: 0.05 Lux @(F2.2, AGC ON)
Electronic shutter
1/2~1/100,000 s
Main stream frame rate
25 FPS (1080P, 720P), D1, CIF, 480x240
Sub stream frame rate
25 FPS (720P, D1, CIF)
Third stream frame rate
25 FPS (D1, CIF, 480x240)
Compression
H.265+ / H.265 / H.264+ / H.264
Bitrate
64 Kbps ~ 6 Mbps
Lens
2.8 mm
Field of view (FOV)
H: 104°, V: 59°, D: 117°
DORI
38 m (D), 15 m (O), 8 m (R), 4 m (I)
Image enhancements
WDR 120dB, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, ROI
Motion detection
Yes
Smart functions
Advanced AI based on classification of people, vehicles and non-motorized vehicles for: area intrusion, line crossing, region entry, region exit
Face detection and capture
People, vehicles and non-motorized vehicle counting
Other smart events: abandoned object, removed object, heat map
Exceptions
Scene change, defocus detection and abnormal color detection
Video input
BNC (for pinhole camera)
Audio
1 input (3.5mm) / 1 output (3.5mm)
Audio compression
G711A / U
Alarms
8 inputs / 4 relays
Network interface
Ethernet 10/100M BaseT
Internal memory
MicroSD card up to 256GB
Remote access
Web browser, Safire Smart Smartphone App, Safire Smart VMS PC software
Interoperability
ONVIF
Power supply
DC 12 V / 460 mA / 5.5 W max. / PoE IEEE802.3af
Protection rating
Not available
Material
Metal
Operating temperature
-30° C ~ +60° C, < 95%
Dimensions
Camera: 30.4 (D) x 31.6 (H) x 30.4 (W) mm
Box: 108.5 (D) x 87.8 (H) x 28 (W) mm
Weight
Camera: 52.4 g
Box: 271.4 g
CONTENTS:
• Safire Smart I1 IP Pinhole Camera
• IP Main Box with alarms for pinhole camera
• Installation materials
• Quick installation guide
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
PINHOLE Camera User Manual EN
24-month warranty
