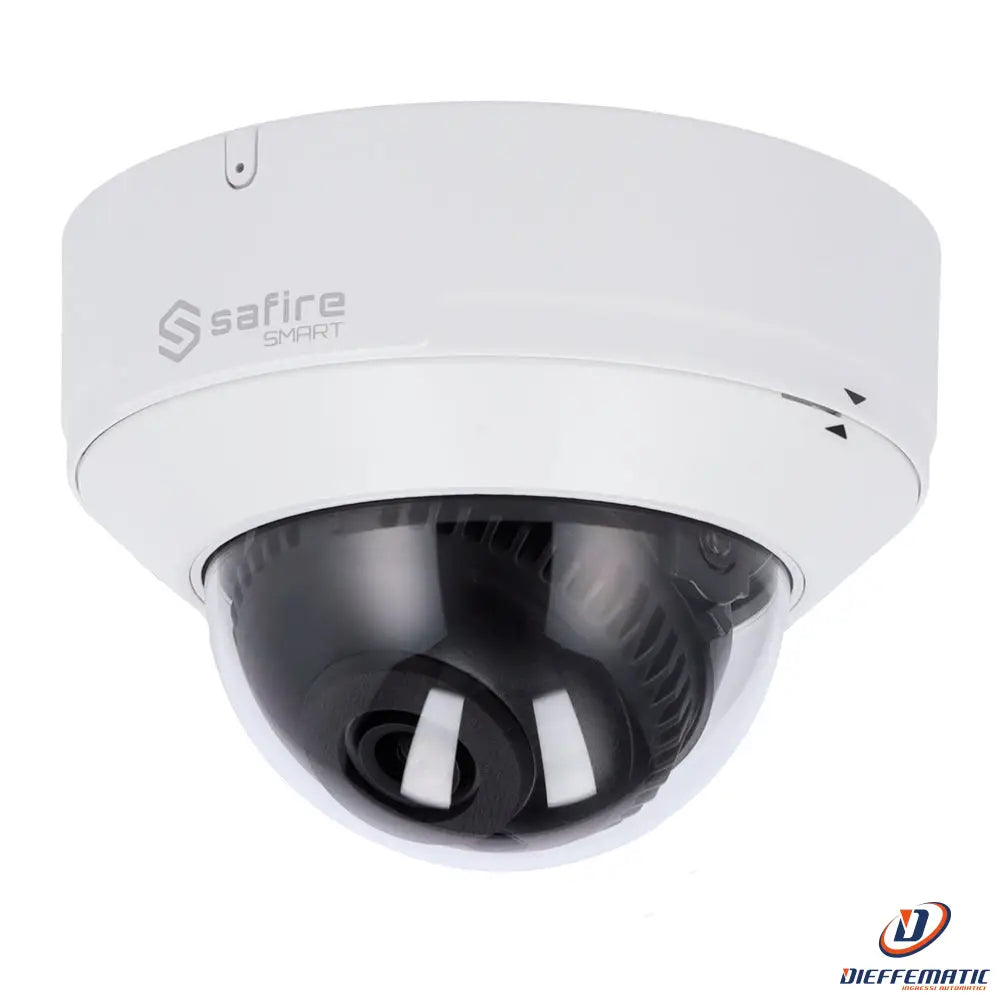

Safire Smart Sf-Ipd040A-4I1 I1 IP Dome Camera

I1 IP Dome Camera

Mod. SF-IPD040A-4I1

SKU: SF-IPD040A-4I1

• Safire Smart

• I1 range IP Dome Camera with Advanced AI

• 4 Megapixel resolution (2592x1520)

• 2.8 mm lens | Audio & Alarms | 30 m IR

• Advanced AI: Perimeter, Face, Counting, Metadata

• IP67 waterproof & IK10 | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• I1 range with Advanced Artificial Intelligence

• IP Dome Camera

• 1/3" Progressive Scan CMOS

• 4 Megapixel (2592x1520)

• 2.8 mm lens

• 0 Lux

• IR range 30 m

• H.265+ / H.264+ compression

• 120 dB WDR

• 3DNR

• Built-in microphone

• Audio

• Alarms

• Advanced Artificial Intelligence: people, motor vehicle and non-motorized vehicle detection

• Face capture

• Video metadata

• People, motor vehicle and non-motorized vehicle counting

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• 3-axis

• IP67 waterproof

• IK10 vandal-resistant


SPECIFICATIONS:

Brand
Safire Smart

Range
I1

Optical sensor
1/3" Progressive Scan CMOS

Maximum resolution
4 Megapixel (2592x1520)

Minimum illumination
Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR

IR range
30 m

Day/night
Removable ICR mechanical filter

Electronic Shutter
1/2~1/100.000 s

Main Stream Frame Rate
25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P)
HFR mode: 60 FPS (1080P / 720P)

Sub Stream Frame Rate
25 FPS (720P, D1, CIF, 480x240)

Third Stream Frame Rate
25 FPS (D1, 480x240, CIF)

Compression
H.265+ / H.265 / H.264+ / H.264

Bitrate
64 Kbps ~ 8 Mbps

Lens
2.8 mm

Field of view (FOV)
H: 95°, V: 53.2°, D: 100.7°

DORI
61 m (D), 24 m (O), 12 m (R), 6 m (I)

Image enhancements
WDR 120dB, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart Functions
Advanced AI based on the classification of people, vehicles and non-motorized vehicles for: area intrusion, line crossing, area entrance, area exit
Face detection and capture
People, vehicles and non-motorized vehicle counting
Feature identification:
- Person: up to 13 features
- Vehicle: up to 5 features
- Non-motorized vehicle: Up to 1 feature
Other smart events: abandoned object, removed object

Exceptions
Scene change, blur detection and abnormal color detection

Audio
Built-in microphone, 1 input

Audio compression
G711A / U

Alarms
1 input / 1 relay

Network interface
Ethernet 10 / 100M BaseT

Internal storage
MicroSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

3 Axis
Yes

Power supply
DC 12 V / 460 mA / 5.5 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67, vandal-resistant IK10

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
119 (Ø) x 87.80 (H) mm

Weight
650 g


CONTENTS:

• Safire Smart I1 IP Dome Camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Manual 4MP I1 EN

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

Safire Smart VMS User Manual EN

24-month warranty
