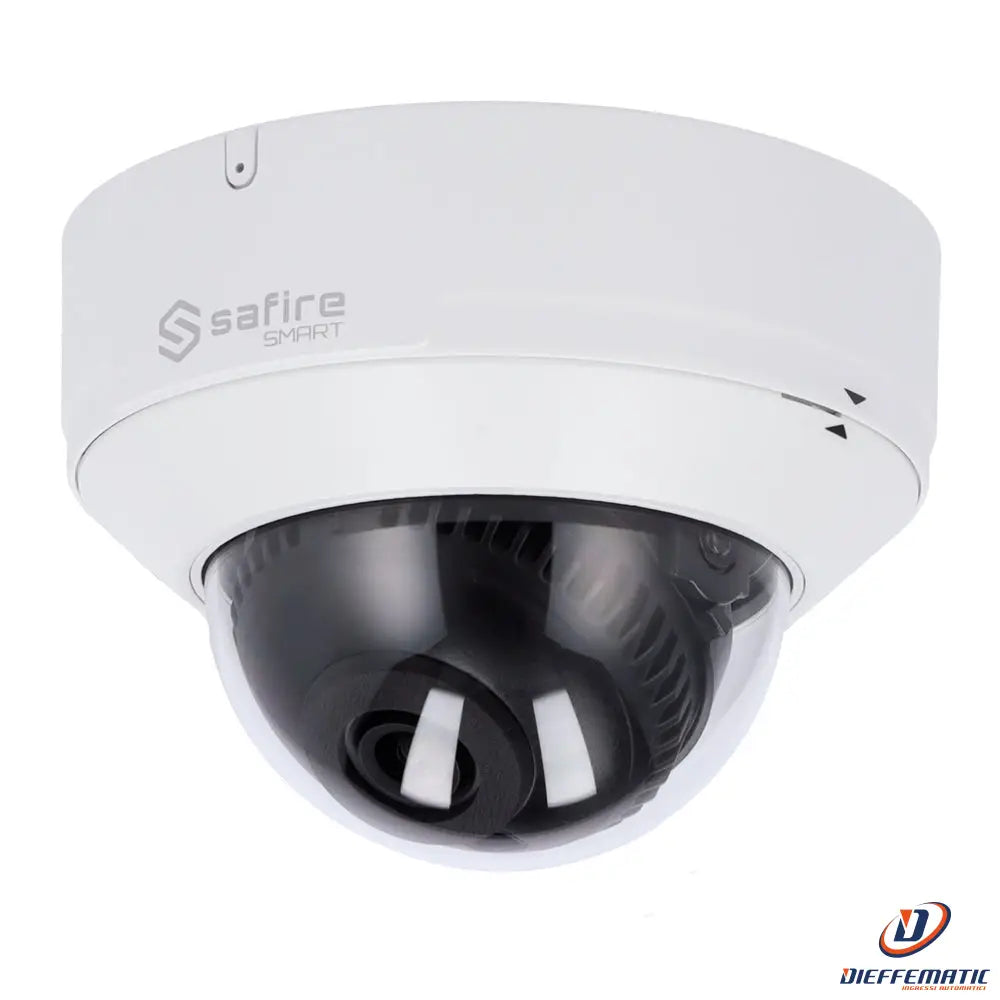

Safire Smart Sf-Ipd040A-4E1 E1 IP Dome Camera

E1 IP dome camera

Model SF-IPD040A-4E1

SKU: SF-IPD040A-4E1

• Safire Smart

• E1 range IP dome camera with artificial intelligence

• 4 Megapixel resolution (2566x1440)

• 2.8 mm lens | Built-in microphone | IR 30 m

• AI: Person and vehicle classification

• IP67 waterproof & IK10 | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• E1 range with artificial intelligence

• IP dome camera

• 1/3" Progressive Scan CMOS

• 4 Megapixel (2560x1440)

• 2.8 mm lens

• 0 Lux

• IR range 30 m

• H.265 / H.264 compression

• WDR

• 3DNR

• Built-in microphone

• Audio

• Artificial intelligence: Person and vehicle classification

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• 3-axis

• IP67 waterproof

• IK10 vandal-proof


SPECIFICATIONS:

Brand
Safire Smart

Range
E1

Optical sensor
1/3" Progressive Scan CMOS

Maximum resolution
4 Megapixel (2560x1440)

Minimum illumination
Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR

IR range
30 m

Day/night
Removable ICR mechanical filter

Electronic shutter
1/2~1/100.000 s

Main stream frame rate
25 FPS (4Mpx, 3Mpx, 1080P, 720P)

Sub-stream frame rate
25 FPS (720P, D1, CIF)

Third stream frame rate
25 FPS (D1, 480x240, CIF)

Compression
H.265 / H.264

Bit rate
64 Kbps ~ 8 Mbps

Lens
2.8 mm

Field of view (FOV)
H: 94°, V: 50°, D: 115°

DORI
61 m (D), 24 m (O), 12 m (R), 6 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
Artificial intelligence based on the classification of people and vehicles for: area intrusion, line crossing, area entry, area exit
Other intelligent events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
1 audio input
Built-in microphone

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal memory
MicroSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

Power supply
DC 12 V / 375 mA / 4.5 W max. / PoE IEEE802.3af

3 Axis
Yes

Protection rating
Waterproof IP67, vandal-resistant IK10

Material
Metal and plastic

Operating temperature
-30° C ~ +60° C

Dimensions
119 (Ø) x 87.8 (H) mm

Weight
640 g


CONTENTS:

Safire Smart E1 IP Dome Camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF sheet

User Manual 4MP E1 EN

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

Safire Smart VMS User Manual EN

24-month warranty
