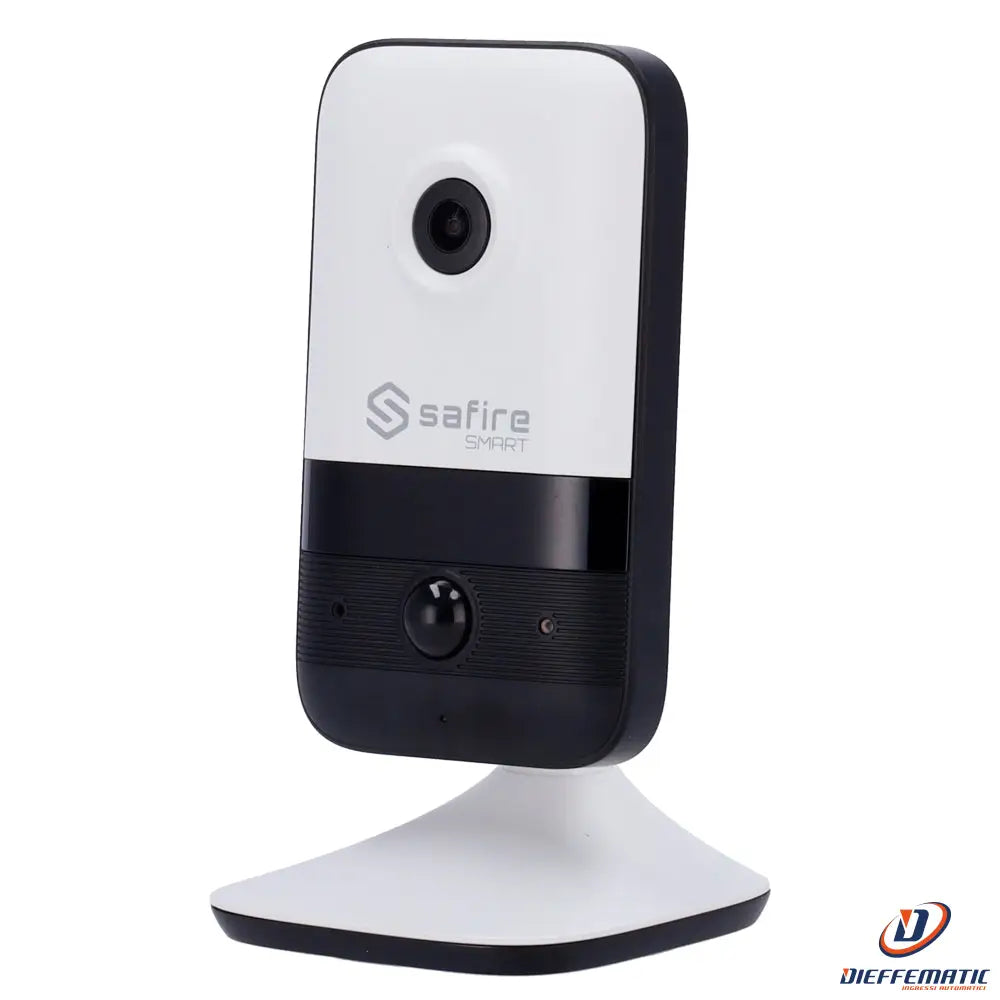

Safire Smart Sf-Ipcu014A-4B1W-Pir Cube Camera

Cube camera

Model SF-IPCU014A-4B1W-PIR

SKU: SF-IPCU014A-4B1W-PIR

• Safire Smart


• B1 WiFi range Bullet IP camera

• 4 Megapixel resolution (2560x1440)

• 2.1 mm lens | Detection. People | Two-way audio

• IR 10 m | PoE (IEEE802.3af) | Alarm IN / OUT

• P2P with push notification in case of an alarm


DESCRIPTION:

• Safire Smart

• B1 WiFi range WiFi cube IP camera

• 1/3" Progressive Scan CMOS

• 4 Megapixel (2560x1440)

• 2.1 mm lens

• 0 Lux

• IR range 10 m

• H.265+ / H.264+ compression

• WDR

• MicroSD card

• Person detection

• PIR detector

• Microphone and speaker

• Two-way audio

• Alarm input and output

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• WiFi IEE802.1b/g/n

• PoE (IEEE802.3af)

• P2P


SPECIFICATIONS:

Brand
Safire Smart

Range
B1 WiFi

Optical sensor
1/3" Progressive Scan CMOS

Maximum resolution
4 Megapixel (2560x1440)

Minimum illumination
Color: 0.035 Lux @(F1.2, AGC ON), 0 Lux with IR

IR range
10 m

Day/night
Removable ICR mechanical filter

Electronic shutter
1/2~1/100,000 s

Main Stream frame rate
25 FPS (4Mpx, 3Mpx, 1080P, 720P)

Sub Stream frame rate
25 FPS (720P, D1, CIF)

Compression
H.265+ / H.264+ / H.265 / H.264

Bitrate
64 Kbps ~ 6 Mbps

Lens
2.1 mm

Field of view (FOV)
H: 94°, V: 50°, D: 115°

DORI
62 m (D), 25 m (O), 12 m (R), 6 m (I)

Image enhancements
WDR (78 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

PIR detector
Detection range up to 5m, 100°

Smart functions
Person detection

Smart alarms
Motion detection, person detection, alarm input, PIR, memory card full, memory card error, IP conflict or disconnected cable

Audio
1 Microphone / 1 Speaker
Two-way audio via mobile app or web interface
Recording of messages for each alarm

Audio compression
G711A / U

Alarm
1 Input / 1 Output

Network interface
Ethernet 10 / 100M BaseT

Internal memory
MicroSD card up to 128GB

Remote access
Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software

P2P
Yes
Push notifications for video exceptions, person detection, PIR detection or alarm input in the Safire Smart app

WiFi
2.4GHz
IEEE802.11 b/g/n
Up to 50m outdoors

Interoperability
ONVIF

Power supply
DC 12 V / 666 mA / 5 W max. / PoE IEEE802.3af

Material
Plastic

Installation bracket angle
Horizontal: 0°-230°; Vertical: 0°-71°; Rotation: 0°-360°

Operating temperature
-20° C ~ +50° C

Dimensions
130 (L) x 71.7 (H) x 71.7 (D) mm

Weight
140 g

Installation
Integrated tabletop, ceiling or wall mount


CONTENTS:

• Cube camera

• 2 wall plugs and 2 mounting screws

• Installation sticker

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
