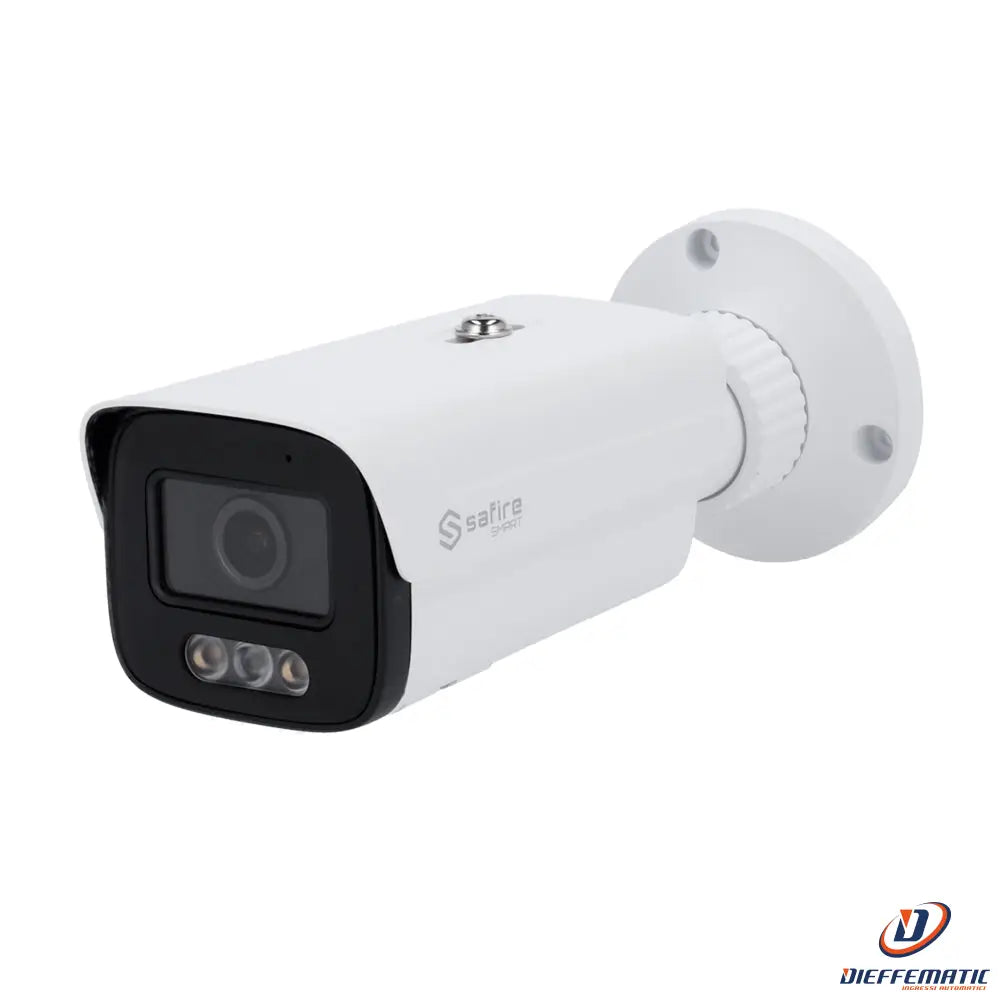

Safire Smart SF-IPB380CA-4I1-NIGHT I1 IP bullet camera

I1 IP bullet camera

Model SF-IPB380CA-4I1-NIGHT

SKU: SF-IPB380CA-4I1-NIGHT

• Safire Smart

• I1 Night Color AI range IP bullet camera

• 4 Megapixel resolution (2566x1440)

• 1/1.79" Progressive Scan CMOS

• Night Color X, 24/7 color image

• IP67 waterproof | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• I1 Night Color range with artificial intelligence

• IP bullet camera

• 1/1.79" Progressive Scan CMOS

• 4 Megapixels (2688x1520)

• 2.8 mm lens

• 0 Lux

• Night Color, 24/7 color image

• White light up to 20m

• H.265+ / H.264+ compression

• WDR

• 3DNR

• Built-in microphone

• Audio

• Advanced artificial intelligence: detection of people, vehicles and non-motorized vehicles

• Face capture

• People, vehicle and non-motorized vehicle counting

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• IP67 waterproof


SPECIFICATIONS:

Brand
Safire Smart

Range
I1 Night Color X, 24/7 color imaging with high sensitivity

Image sensor
1/1.79" Progressive Scan CMOS

Maximum resolution
4 Megapixels (2688x1520)

Minimum illumination
Color: 0.0003 Lux @(F1.0, AGC ON)
Night Color X, 24/7 color image

Illumination range
White LED up to 20m

Day/night
ICR mechanical filter

Electronic shutter
1/2~1/100.000 s

Main Stream frame rate
25 FPS (4Mpx, 2K, 3Mpx, 1080P,)

Sub Stream frame rate
25 FPS (1080P, 720P, D1, CIF)

Third Stream frame rate
25 FPS (D1, 480x240, CIF)

Compression
H.265+ / H.264+

Bitrate
64 Kbps ~ 8 Mbps

Lens
Fixed 2.8 mm

Field of view (FOV)
H: 112°, V: 61°, D: 118°

DORI
52 m (D), 21 m (O), 10 m (R), 5 m (I)

Image enhancements
DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
Advanced AI based on the classification of people, vehicles and non-motorized vehicles for: area intrusion, line crossing, area entry, area exit
Face detection and capture
People, vehicles and non-motorized vehicle counting
Attribute identification:
- Person: up to 13 characteristics
- Vehicle: up to 5 characteristics
- Non-motorized vehicle: Up to 1 characteristic
Other smart events: abandoned object, removed object

Exceptions
Scene change, blur detection and abnormal color detection

Audio
Built-in microphone, 1 input, 1 output

Audio compression
G711A / U

Alarm
1 input / 1 output

Network interface
Ethernet 10 / 100M BaseT

Internal memory
microSD card up to 1TB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

Power supply
DC 12 V / 708 mA / 8.5 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
80.3 (H) x 80.5 (W) x 217.8 (L) mm

Weight
690 g


CONTENTS:

• Safire Smart I1 IP bullet camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Manual 4MP I1 NIGHT EN

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

Safire Smart VMS User Manual EN

24-month warranty
