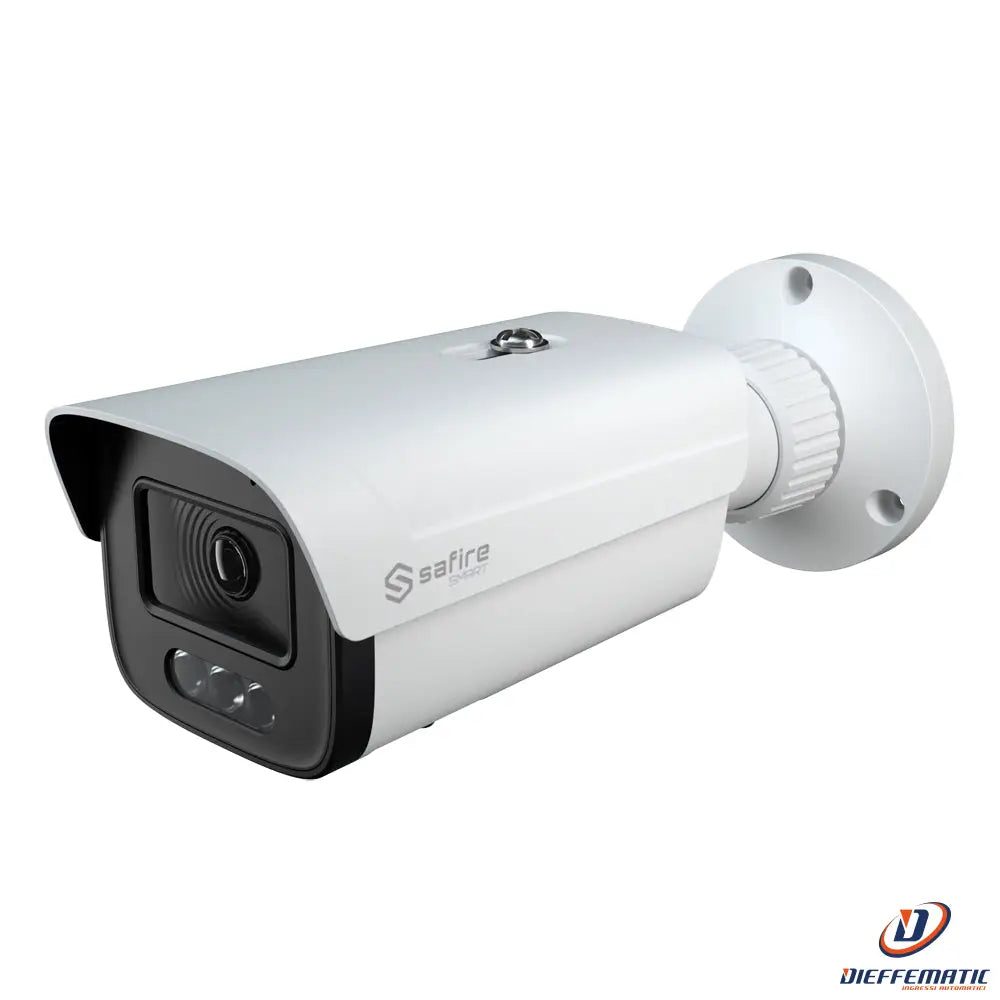

Safire Smart Sf-Ipb380A-4E1-Dl-0360 E1 IP Bullet Camera

E1 IP Bullet Camera

Mod. SF-IPB380A-4E1-DL-0360

SKU: SF-IPB380A-4E1-DL-0360

• Safire Smart

• E1 range AI IP Bullet Camera

• 4 Megapixel resolution (2566x1440)

• 3.6 mm lens | Built-in microphone | DL 30m

• AI: People and vehicle classification

• Waterproof IP67 | PoE (IEEE802.3af) | P2P


DESCRIPTION:

• Safire Smart

• E1 range with artificial intelligence

• IP Bullet Camera

• 1/3" Progressive Scan CMOS

• 4 Megapixel (2560x1440)

• 3.6 mm lens

• 0 Lux

• Dual illumination: IR and white LED with 30 m range

• H.265 / H.264 compression

• WDR

• 3DNR

• Built-in microphone

• Artificial intelligence: People and vehicle classification

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• P2P

• PoE (IEEE802.3af)

• Waterproof IP67


SPECIFICATIONS:

Brand
Safire Smart

Range
E1

Image sensor
1/3" Progressive Scan CMOS

Maximum resolution
4 Megapixel (2560x1440)

Minimum illumination
Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR

Dual illumination
IR and white light with 30 m range

Day/night
Removable ICR mechanical filter

Electronic shutter
1/2~1/100.000 s

Main stream frame rate
25 FPS (4Mpx, 3Mpx, 1080P, 720P)

Sub stream frame rate
25 FPS (720P, D1, CIF)

Third stream frame rate
25 FPS (D1, 480x240, CIF)

Compression
H.265 / H.264

Bit rate
64 Kbps ~ 8 Mbps

Lens
3.6 mm

Field of view (FOV)
H: 78°, V: 38°, D: 94°

DORI
105 m (D), 42 m (O), 21 m (R), 10 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
Artificial intelligence based on people and vehicle classification for: area intrusion, line crossing, area entry, area exit
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
Built-in microphone

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal storage
microSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

P2P
Yes

Power supply
DC 12 V / 6 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal and plastic

Operating temperature
-30° C ~ +60° C

Dimensions
94.6 (Ø) x 82.8 (H) mm

Weight
460 g


CONTENTS:

Safire Smart E1 IP Bullet Camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

Safire Smart VMS User Manual EN

24-month warranty
