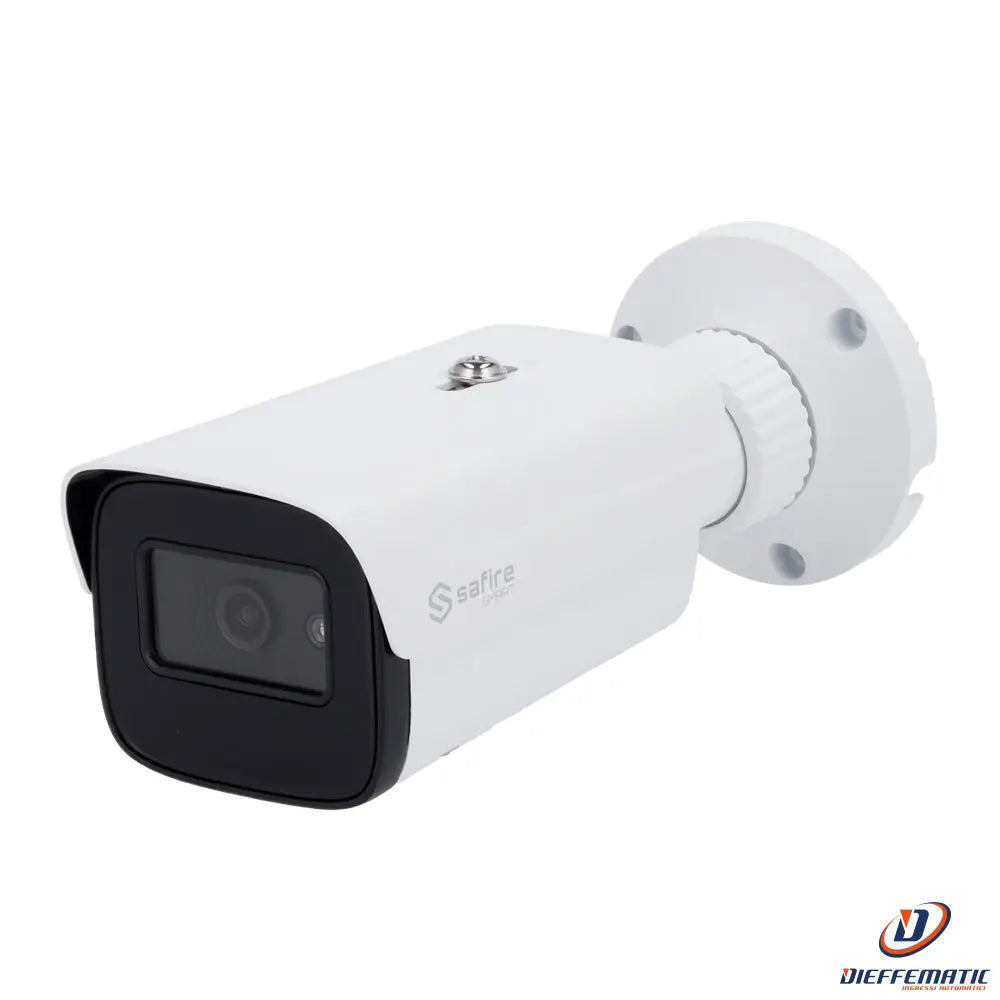

Safire Smart Sf-Ipb370A-4I1-0360 I1 IP Bullet Camera

I1 IP Bullet Camera

Model SF-IPB370A-4I1-0360

SKU: SF-IPB370A-4I1-0360

• Safire Smart

• I1 range IP Bullet Camera with Advanced AI

• 4 Megapixel resolution (2592x1520)

• 3.6 mm lens | Audio | IR 50 m

• TrueSense+: People, vehicle and face detection

• IP67 waterproof | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• I1 range with Advanced AI

• IP Bullet Camera

• 1/3" Progressive Scan CMOS

• 4 Megapixel (2592x1520)

• 3.6 mm lens

• 0 Lux

• IR range 50 m

• H.265+ / H.264+ compression

• WDR

• 3DNR

• Audio

• Advanced AI: people, vehicle and non-motorized vehicle detection

• Face capture

• Video metadata

• People, vehicle and non-motorized vehicle counting

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• IP67 waterproof


SPECIFICATIONS:

Brand
Safire Smart

Range
I1

Image sensor
1/3" Progressive Scan CMOS

Maximum resolution
4 Megapixel (2592x1520)

Minimum illumination
Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR

IR range
50 m

Day/night
Removable mechanical ICR filter

Electronic Shutter
1/2~1/100.000 s

Main Stream Frame Rate
25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P)
HFR mode: 60 FPS (1080P / 720P)

Sub Stream Frame Rate
25 FPS (720P, D1, CIF, 480x240)

Third Stream Frame Rate
25 FPS (D1, 480x240, CIF)

Compression
H.265+ / H.265 / H.264+ / H.264

Bitrate
64 Kbps ~ 8 Mbps

Lens
3.6 mm

Field of View (FOV)
H: 78°, V: 40°, D: 97°

DORI
75 m (D), 30 m (O), 15 m (R), 8 m (I)

Image Enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
TrueSense+, artificial intelligence for classifying people, vehicles and non-motorized vehicles in: area intrusion, line crossing, area entry, area exit
Face detection and capture
People, vehicles and non-motorized vehicles counting
Attribute identification:
- Person: up to 13 attributes
- Vehicle: up to 5 attributes
- Non-motorized vehicle: Up to 1 attribute
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
1 input

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal storage
microSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

Power supply
DC 12 V / 702 mA / 8.5 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
80.30 (H) x 80.50 (W) x 217.80 (L) mm

Weight
660 g


CONTENTS:

Safire Smart I1 IP Bullet Camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Manual 4MP I1 EN

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

Safire Smart VMS User Manual EN

24-month warranty
