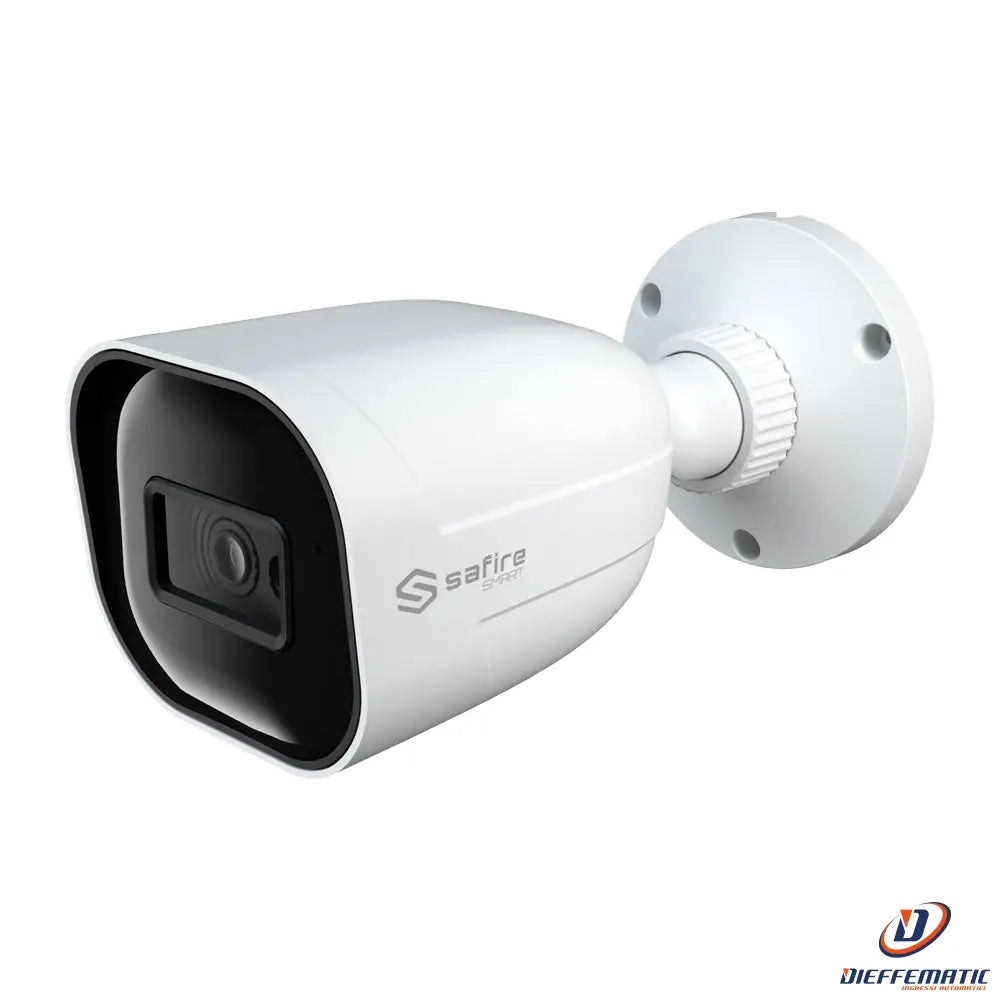

Safire Smart Sf-Ipb080A-6I1 I1 IP Bullet Camera

I1 IP Bullet Camera

Mod. SF-IPB080A-6I1

SKU: SF-IPB080A-6I1

• Safire Smart

• I1 range Advanced AI IP Bullet Camera

• 6 Megapixel resolution (3296x1856)

• 2.8 mm lens | Audio | IR 30m

• Advanced AI: Perimeter, Face, Counting, Metadata

• IP67 waterproof | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• I1 range with Advanced AI - IP Bullet Camera

• 1/2.5" Progressive Scan CMOS

• 6 Megapixels (3296x1856)

• 2.8 mm lens

• 0 Lux

• IR range 30 m

• H.265+ / H.264+ compression

• WDR

• 3DNR

• Audio

• Built-in microphone

• Advanced artificial intelligence: people, motor vehicle and non-motor vehicle detection

• Face capture

• Video metadata

• People, motor vehicle and non-motor vehicle counting

• WEB, CMS, smartphone and NVR interface

• MicroSD card up to 256GB

• ONVIF compatible

• PoE (IEEE802.3af)

• IP67 waterproof


SPECIFICATIONS:

Brand
Safire Smart

Range
I1

Image sensor
1/2.5" Progressive Scan CMOS

Maximum resolution
6 Megapixels (3296x1856)

Minimum illumination
Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR

IR range
30 m

Day/Night
Removable ICR mechanical filter

Electronic Shutter
1/2~1/100.000 s

Main Stream Frame Rate
25 FPS (6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P)

Sub Stream Frame Rate
25 FPS (720P, D1, CIF, 480x240)

Third Stream Frame Rate
25 FPS (D1, 480x240, CIF)

Compression
H.265+ / H.265 / H.264+ / H.264

Bitrate
64 Kbps ~ 8 Mbps

Lens
2.8 mm

Field of View (FOV)
H: 104°, V: 54.5°, D: 130°

DORI
71 m (D), 28 m (O), 14 m (R), 7 m (I)

Image Enhancements
WDR 120dB, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
Advanced AI based on the classification of people, vehicles and non-motorized vehicles for: area intrusion, line crossing, area entry, area exit
Face detection and capture
People, vehicles and non-motorized vehicle counting
Feature identification:
- Person: up to 13 features
- Vehicle: up to 5 features
- Non-motorized vehicle: up to 1 feature
Other smart events: abandoned object, removed object

Exceptions
Scene change, blur detection and abnormal color detection

Audio
1 input / 1 output / Built-in microphone

Audio compression
G711A / U

Internal memory
MicroSD card up to 256GB

Network interface
Ethernet 10 / 100M BaseT

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software and Safire Smart app

Interoperability
ONVIF

Power supply
DC 12 V / 7.5 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
74.5 (H) x 74.5 (W) x 167.50 (L) mm

Weight
423 g


CONTENTS:

• Safire Smart I1 IP bullet camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Manual SERIES I EN

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

Safire Smart VMS User Manual EN

24-month warranty
