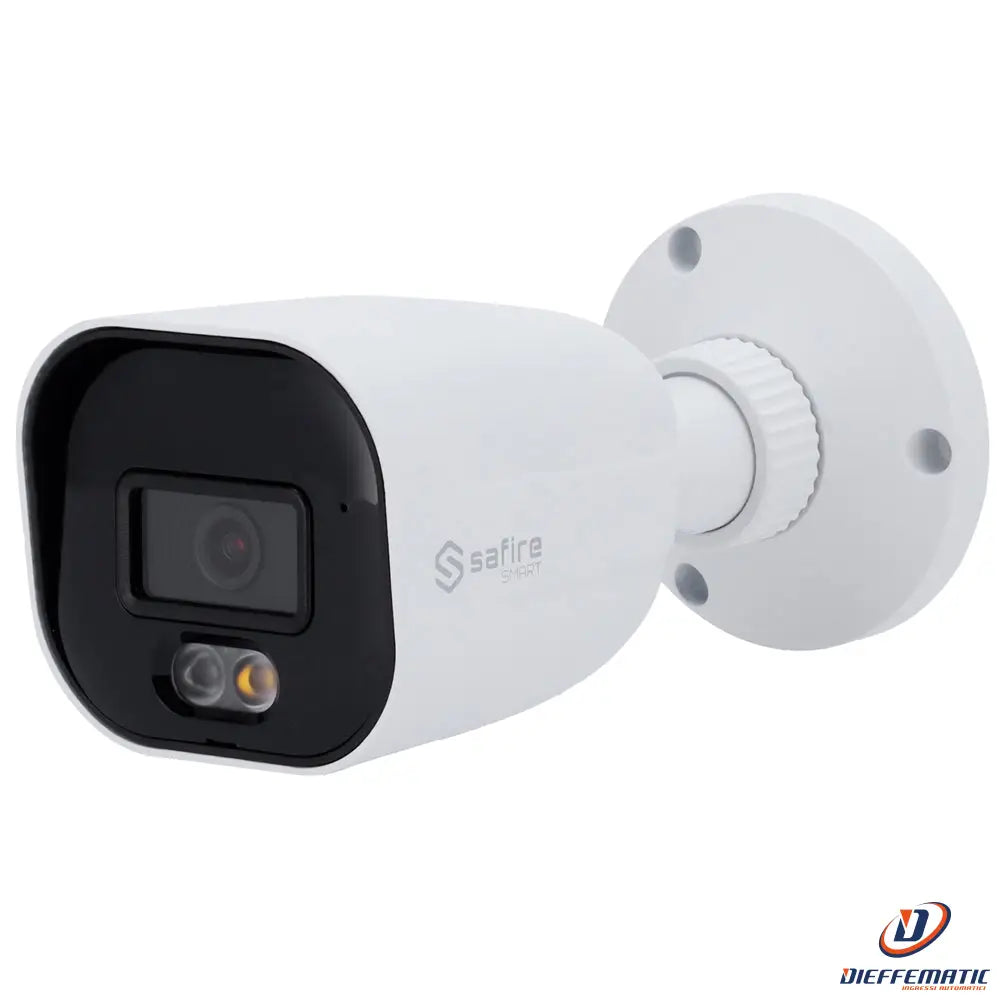

Safire Smart Sf-Ipb080A-6B1-Dl B1 IP Bullet Camera

B1 IP bullet camera

Mod. SF-IPB080A-6B1-DL

SKU: SF-IPB080A-6B1-DL

• Safire Smart

• B1 range IP bullet camera with dual light

• 6 Megapixel resolution (3200x1800)

• 2.8 mm lens | Built-in microphone

• Dual IR + white LED lighting up to 20m

• IP67 waterproof | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• B1 dual-lens range

• IP bullet camera

• 1/2.7" Progressive Scan CMOS

• 6 Megapixel (3200x1800)

• 2.8 mm lens

• 0 Lux

• Dual Light range: 20 m

• H.265+ / H.265 / H.264+ / H.264 compression

• WDR

• 3DNR

• Built-in microphone

• WEB, CMS, smartphone and NVR interface

• ONVIF-compatible

• PoE (IEEE802.3af)

• IP67 waterproof


SPECIFICATIONS:

Brand
Safire Smart

Range
B1 dual-lens range

Image sensor
1/2.7" Progressive Scan CMOS

Maximum resolution
6 Megapixel (3200x1800)

Minimum illumination
Color: 0.008 Lux @(F1.6, AGC ON), 0 Lux with IR

Dual Light
IR and white light range: 20 m

Day/night
Removable ICR mechanical filter

Electronic shutter
1/2~1/100.000 s

Main stream frame rate
20 FPS (6Mpx)
30 FPS (4Mpx, 1080P)

Sub-stream frame rate
30 FPS (720P, D1, CIF, 480x240)

Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG

Bitrate
64 Kbps ~ 8 Mbps

Lens
2.8 mm

Field of view (FOV)
H: 110.5°, V: 57°, D: 131°

DORI
60 m (D), 24 m (O), 12 m (R), 6 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Audio
Built-in microphone

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal memory
microSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

Power supply
DC 12 V / 6 W max. / PoE IEEE802.3af

Protection rating
IP67 waterproof

Material
Metal and plastic

Operating temperature
-30° C ~ +60° C

Dimensions
75 (H) x 75 (W) x 167.6 (L) mm

Weight
382 g


CONTENTS:

• Safire Smart B1 IP bullet camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

Safire Smart VMS User Manual EN

24-month warranty
