Description

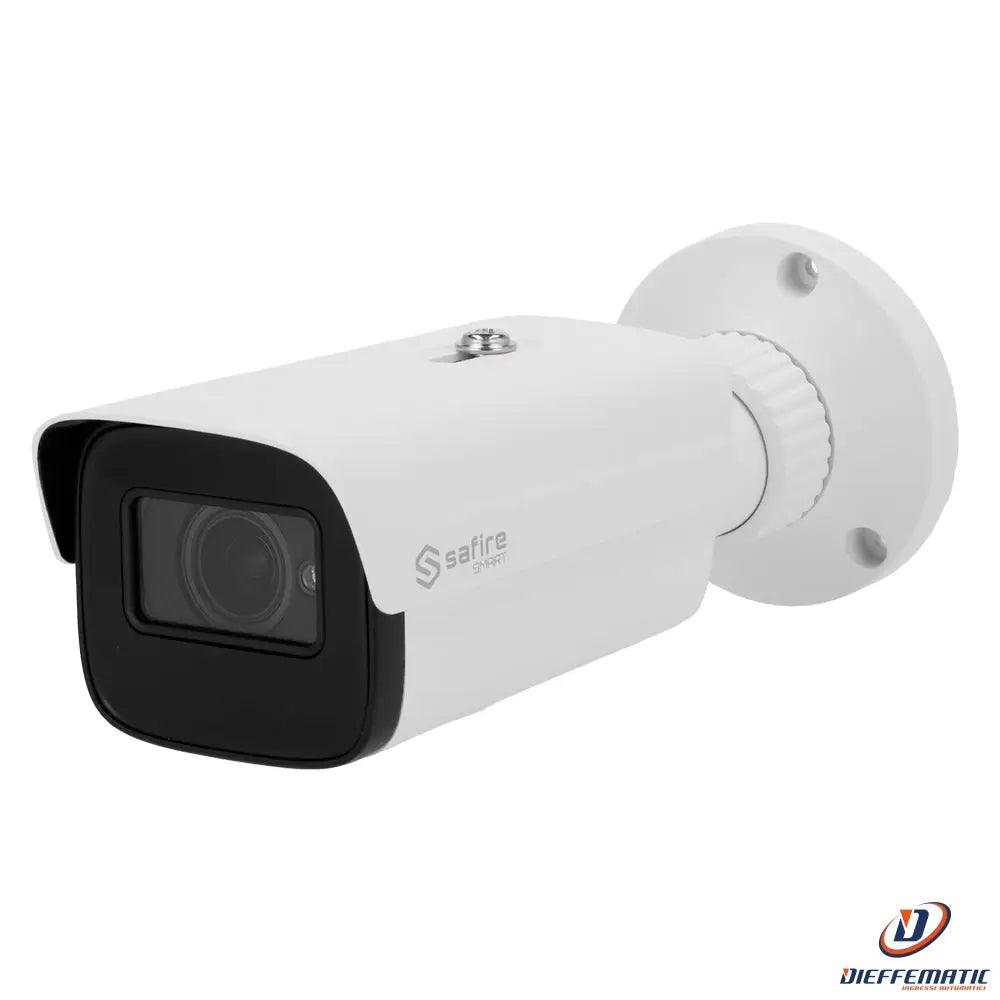

Bullet Camera
Model SF-B580Z-3KE1
SKU: SF-B580Z-3KE1
• Safire Smart
• E1 range 4-in-1 Bullet Camera
• 3K (2944x1656, 5Mpx 16:9), 1/2.5" CMOS
• Motorized 2.8 - 12 mm lens | IR range 50 m
• DWDR, HLC, BLC, AGC
• Waterproof IP67
DESCRIPTION:
• Safire Smart
• High-quality, high-performance E1 Professional range
• HDTVI, HDCVI, AHD and analog Bullet Camera
• 1/2.5" CMOS
• 3K (2944x1656, 5Mpx 16:9)
• 4-in-1 output
• Motorized 2.8-12 mm lens
• 0 Lux
• IR range 50 m
• 2DNR
• IR CUT
• Image enhancement: HLC, BLC, AGC, DWDR
• Waterproof IP67
SPECIFICATIONS:
Brand
Safire Smart
Range
High-quality, high-performance E1 Professional range
Image sensor
1/2.5" CMOS
Maximum resolution
3K (2944x1656, 5Mpx 16:9)
Resolution
TVI: 2944x1656@20fps, 2560x1440@25fps/30fps
CVI:2560x1440@25fps/30fps
AHD: 2944x1656@20fps, 2560x1440@25fps/30fps
CVBS: PAL/NTSC
Lens
Motorized 2.8 - 12 mm
Minimum illumination
0.01 Lux @(F1.2, AGC ON)
Infrared illumination
0 Lux / IR range up to 30 m (ICR)
Day / Night
Auto / Color / BW (Black and White)
Video output
1 x switchable BNC HDTVI / HDCVI / AHD / CVBS
Video switching
Via DVR (HDTVI by default)
Audio
Not available
Basic functions
OSD menu (remote)
Configurable OSD functions
DWDR, 2DNR, AWB, ATW, BLC, AGC, Smart IR
Lens positioning
3 Axis
Power supply
DC 12 V / 500 mA, 4W max
Protection rating
Waterproof IP67
Operating temperature
-30° C ~ +50° C
Material
Metal housing and plastic bracket
Dimensions
80.5 (H) x 80.5 (W) x 217.70 (L) mm
Weight
570 g
CONTENTS:
• Safire Smart Bullet Camera
• 3 wall plugs and 3 mounting screws
• Quick installation guide
• Installation template
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
