Description

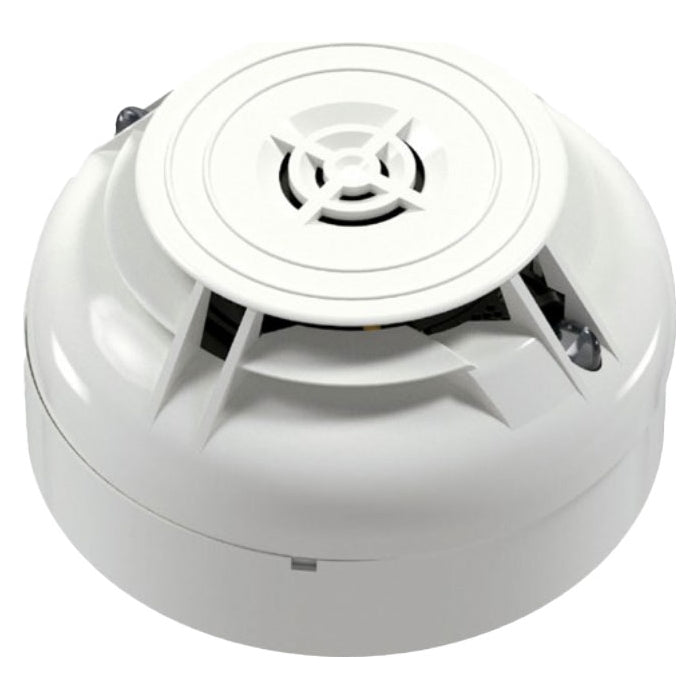

Self-Test range optical detector with isolator and Self-Test function
SKU: NFSTI-OPT
Features
• Optical detector with integrated Self-Test capsule
• Real automatic testing with smoke and heat
• Compatible with NOTIFIER INSPIRE control panels
• Integrated isolator and Bluetooth communication for use with the CLSS app
Specifications
Optical detector with integrated isolator
• Two status LEDs with 360° visibility
• Isolator can be enabled or disabled depending on the wiring
• Switch addressing: 01 to 159
• Mechanical tamper protection
• Compatible with Advanced Protocol (AP) and CLIP
• The Self-Test function requires a licence and is compatible only with Advanced Protocol
• Integrated Self-Test capsule for up to 4 tests per year
• Optical sensor testing using real smoke generation
• Internal fan for smoke distribution and obstruction testing
• Test time: up to 1 minute per device
• Bluetooth connectivity for maintenance and testing via the CLSS app, which allows you to check detector operation from your mobile phone and record the results in the cloud
• Identification and management via the CLSS app using Bluetooth BLE
• Alarm LED test option via the app
Self-Test compatible with NOTIFIER INSPIRE control panels (v1.2.0-R.108 or later)
• Requires a CLSS gateway (one per networked system)
• Compatible with current EN54 loop cards
• Operating current: 200 µA at 24 VDC
• Maximum alarm current: 2 mA at 24 VDC
• Maximum current (amber LED): 4.5 mA at 24 VDC
• Maximum current during Self-Test: 300 mA at 15 VDC / 180 mA at 24 VDC
• Operating air velocity: 0 to 20 m/s
• Air velocity during Self-Test: 0 to 1.5 m/s
• Operating temperature: -5 °C to +47 °C
• Relative humidity: 10% to 93% (non-condensing)
• Colour: pure white
• Compatible with the NOTIFIER-77 intelligent base (B501AP) for quick, secure installation
• Dimensions: 102 x 55 mm
• Weight: 110 g
• Certifications: EN 54-7:2018, EN 54-17:2005/AC:2017, CE, UKCA, VdS
24-month warranty
