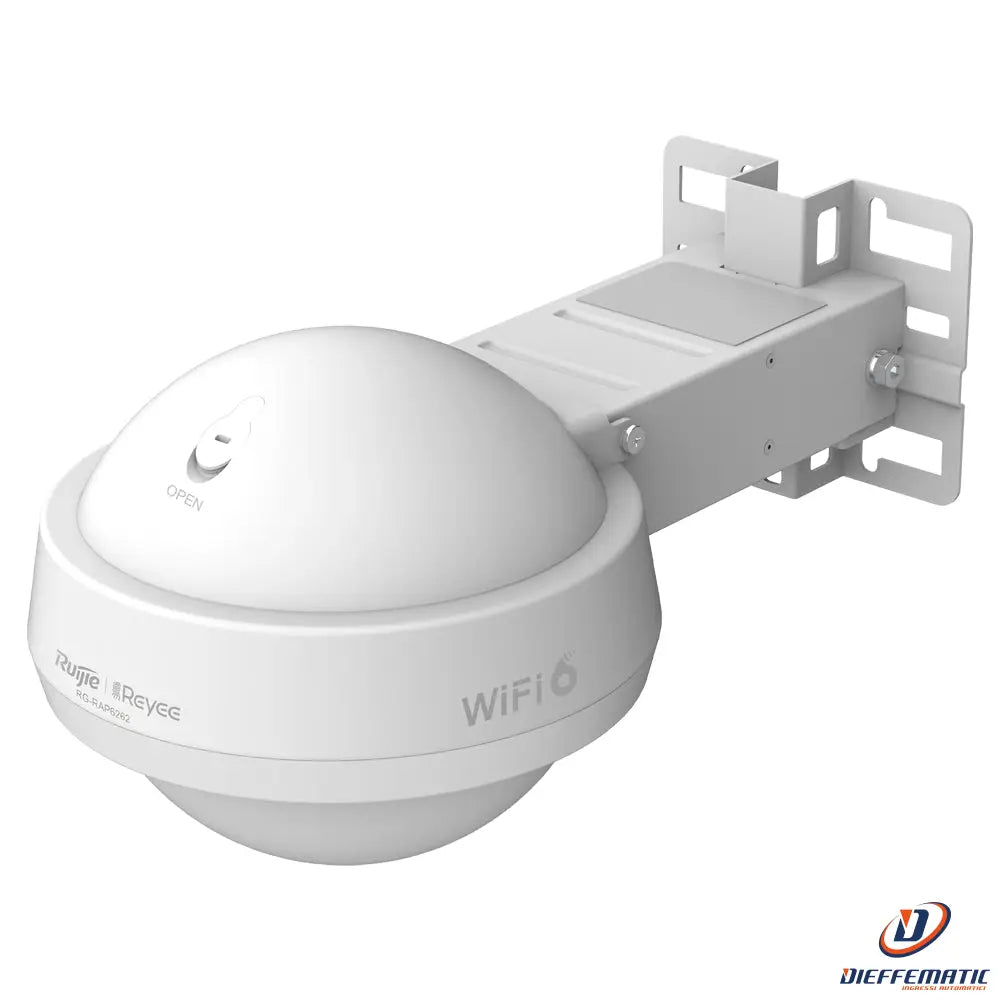

Reyee Rg-Rap6262 IP68 Outdoor Omnidirectional Wi-Fi Access Point

Outdoor omnidirectional IP68 Wi-Fi access point

Model RG-RAP6262

SKU: RG-RAP6262

• Reyee

• Outdoor omnidirectional IP68 Wi-Fi 6 AP

• 2.4 and 5 GHz frequency

• Supports 802.11a/b/g/n/ac/ax

• Transmission speed up to 3000 Mbps / 160MHz

• 2x2:2 MU-MIMO antennas at 2.4GHz, 2x2:2 at 5GHz


DESCRIPTION:

• Reyee

• Dual-band Wi-Fi 6 802.11AX access point with dual-stream operation at 2.4 and 5 GHz

• UFO design

• Compatible with 802.11a/b/g/n/ac Wave 2/ax

• Supports connections up to 3000 Mbps

• MIMO technology with two integrated 3 and 4 dBi antennas

• Channel width up to 160MHz

• SFP and Gigabit RJ45 ports

• Multi-SSID

• Temperature range from -30 to 65 °C

• PoE+ power supply

• IP68


SPECIFICATIONS:

Brand
Reyee

Wireless standard
Wi-Fi 6 802.11ax

Frequencies
2.4 and 5GHz

2.4GHz transmission speed
Up to 574 Mbps

5GHz transmission speed
Up to 2402 Mbps

Integrated antenna
2x2 internal MU-MIMO antennas, 2.4 GHz (3dBi) and 5 GHz (4dBi)

Operating modes
Wireless access point
Routing with basic functions
Compatible with Reyee AP Mesh

Security
WPA / WPA2 (AES) / WPA-PSK

Management
Configuration via web interface or remotely with the Ruijie Cloud app

Interface
1 RJ45 port 10/100/1000Mbps
1 SFP port 1000Mbps - Connects the AP up to 20Km away via single-mode fiber

Outdoor certification
IP68

Power supply
PoE+ IEEE802.3af/802.3at 24W
DC 12V/1.5A

Installation
Suitable for poles with a diameter of 70-140mm

Operating temperature
-30 °C ~ 65 °C

Dimensions
230 mm x 230 mm x 195 mm (without mounting brackets)

Weight
1.4 kg (without mounting brackets)


CONTENTS:

• Access point

• Installation guide

• Mounting anchors

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
