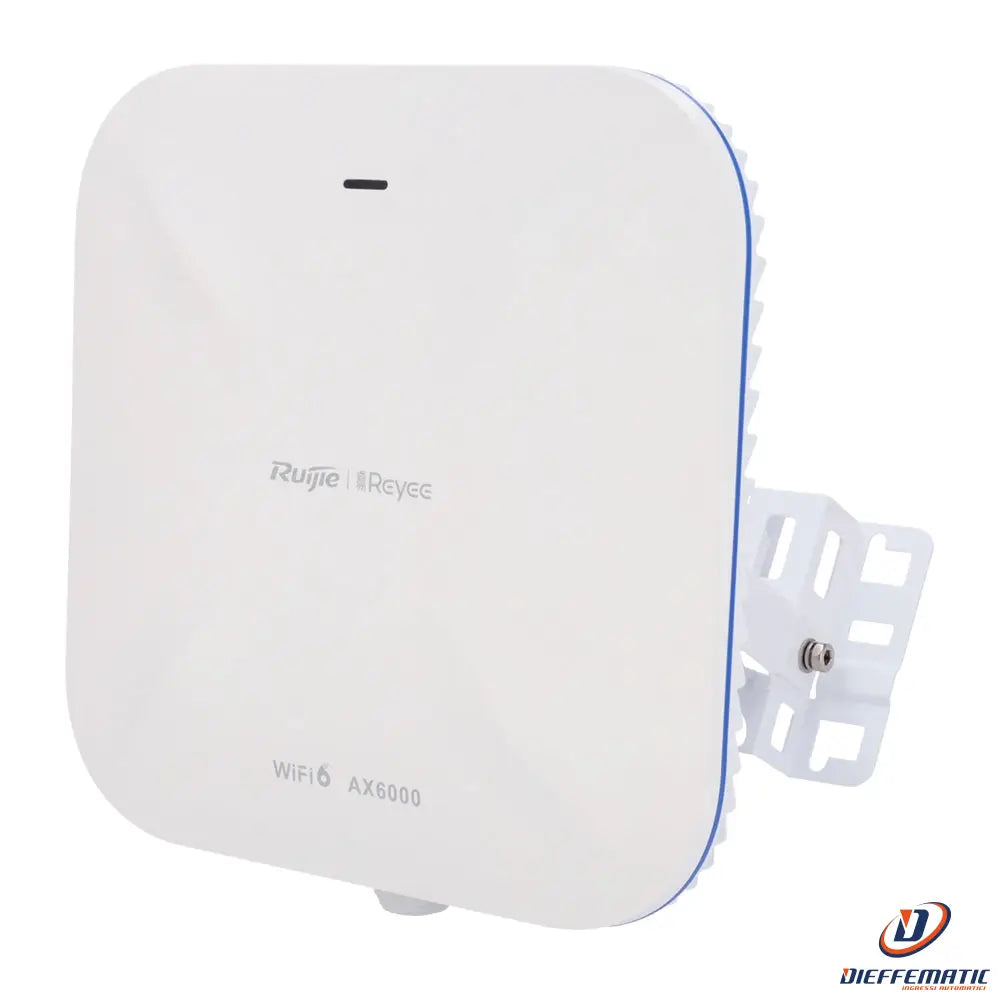

Reyee Rg-Rap6260(H) Access Point

Access point

Model RG-RAP6260(H)

SKU: RG-RAP6260(H)

• Reyee

• High-density omnidirectional Wi-Fi 6 AP

• Suitable for outdoor use, IP68

• Supports 802.11a/b/g/n/ac/ax

• Transmission speed up to 6000 Mbps

• 4x4 MIMO antenna


DESCRIPTION:

• Reyee

• Dual-band Wi-Fi 6 802.11AX access point with 2.4 and 5 GHz bands

• Compatible with 802.11a/b/g/n/ac/ax Wave 1/Wave 2 /ax

• Supports connections up to 6000 Mbps

• MIMO technology with two built-in 3 and 4 dBi antennas

• Multi-SSID

• Temperature range from -40 to 65 °C

• PoE power supply

• IP68


SPECIFICATIONS:

Brand
Reyee

Wireless standard
Wi-Fi 6 802.11ax

Frequencies
2.4 and 5GHz

2.4GHz transmission speed
Up to 1148 Mbps

5GHz transmission speed
Up to 4804 Mbps

Built-in antenna
4x4 internal MIMO antennas, 2.4 GHz (3dBi) and 5 GHz (4dBi)

Operating modes
Wireless access point
Routing with basic functions
Compatible with Reyee AP Mesh

Clients
Recommended <130
Maximum 512

Security
WPA / WPA2 (AES) / WPA-PSK

Management
Configuration via web interface or remotely using the Ruijie cloud app

Interface
1 RJ45 Base-T 10/100/1000/2500Mbps port
1 SFP Base-X 1000Mbps port - Connect the AP up to 20 km away using single-mode fiber

Outdoor rating
IP68

Power supply
Hi-PoE IEEE802.3bt <40 W
DC 48 V/1 A

Operating temperature
-40°C ~ 65 °C

Dimensions
298 x 298 x 65

Weight
3.5 kg


CONTENTS:

• Access point

• Installation guide

• Mounting anchors

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
