Description

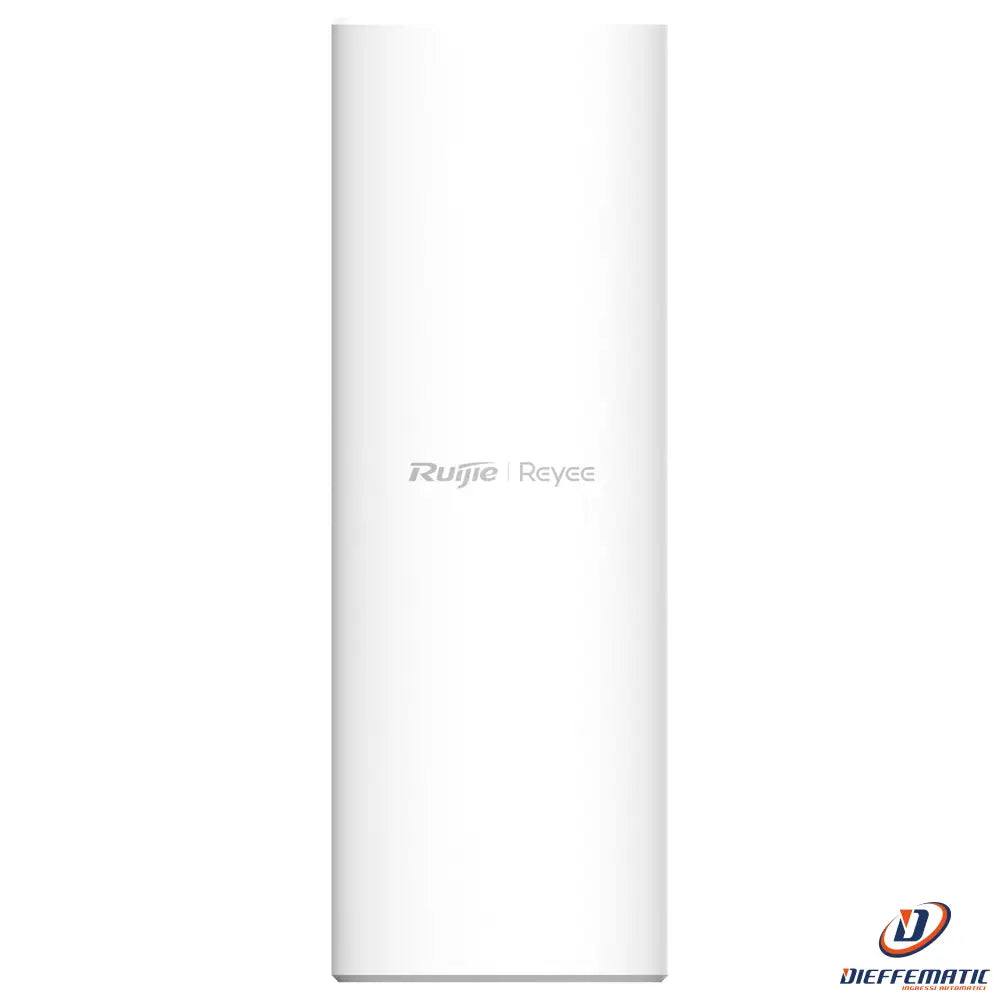

Omnidirectional wall-mounted Wi-Fi access point
Model RG-RAP62-OD
SKU: RG-RAP62-OD
• Reyee
• Omnidirectional Wi-Fi 6 AP
• Suitable for outdoor use, IP65, compact design
• Supports 802.11a/b/g/n/ac/ax
• Transmission speeds up to 2974 Mbps
• Internal 2x2 MIMO antennas
DESCRIPTION:
• Reyee
• Dual-stream Wi-Fi 6 802.11AX access point, 2.4 and 5 GHz bands
• Compact design
• Compatible with 802.11a/b/g/n/ac/ax
• Up to 573Mbps at 2.4GHz and 2401Mbps at 5GHz
• 2x2 MIMO technology with internal omnidirectional antennas - Multi-SSID
• Temperature range from -30 to 65 °C
• 802.3af/at PoE power supply and passive PoE with 24V and 48V
• IP65
SPECIFICATIONS:
Brand
Reyee
Wireless standard
Wi-Fi 6 802.11ax
Frequencies
2.4 and 5GHz
2.4GHz transmission speed
Up to 573 Mbps
5GHz transmission speed
Up to 2401 Mbps
Integrated antenna
Internal dual-band 2x2 MIMO antennas
Gain
5 GHz 6.5dBi (maximum transmission power 23dBm)
2.4 GHz 4.0 dBi (maximum transmission power 23dBm)
Channel width
5 GHz Auto/20/40/80/160 MHz
2.4 GHz Auto/20/40 MHz
Operating modes
Wireless access point
Routing with basic functions
Compatible with Reyee AP Mesh
Features
DHCP server
802.1Q VLAN
802.11k/v/r, L2/L3 roaming, AI roaming
DHCP snooping
IEEE 802.11X
Security
WPA (TKIP), WPA2 (AES), and WPA-PSK, OWE (Enhanced Open Network), WPA3-SAEWPA2-PSK/WPA3-SAE
Management
Configuration via web interface or remotely using the Ruijie Cloud app
Interface
1 RJ45 10/100/1000Mbps Base-T port
Outdoor rating
IP65
Power supply
PoE IEEE802.3af / 802.3at < 16W
24V/48V passive PoE
(Using a 24V power supply or PoE 802.3af reduces spatial streams to 1x1
Operating temperature
-3 °C ~ 65 °C
Dimensions
220 mm x 70mm x 35 mm (without mounting hardware)
Weight
0.4 kg
CONTENTS:
• Access point
• Installation guide
• Mounting anchors
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
Reyee RG-RAP62-OD Access Point Installation Guide
Reyee RG-RAP62-OD Implementation Cookbook
24-month warranty
